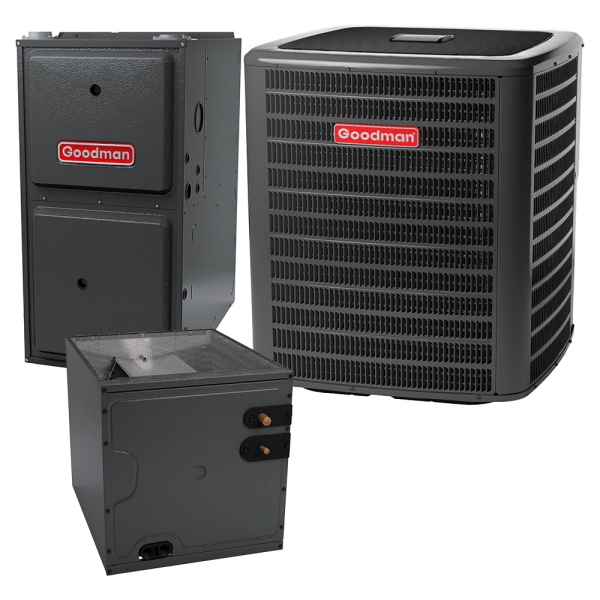

Name: 5 Ton 16 SEER2 120k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32
Brand: Goodman
SKU: HA27766
Price: 8232 USD
Availability: InStock

✓ Link Copied!

GOODMAN

Item:

HA27766

Model:

GLXS5BA6010,CAPTA6030D3,GRVT961205DN

Condition:

New

Was: $8,232.00 Add to Cart for Discount

Payments

with financing > Apply Now

IWAE Summer Sale Up to 10% Sitewide Use Code: USA10

In stock

Ships Within 2-3 Business Days

This Bundle Includes:

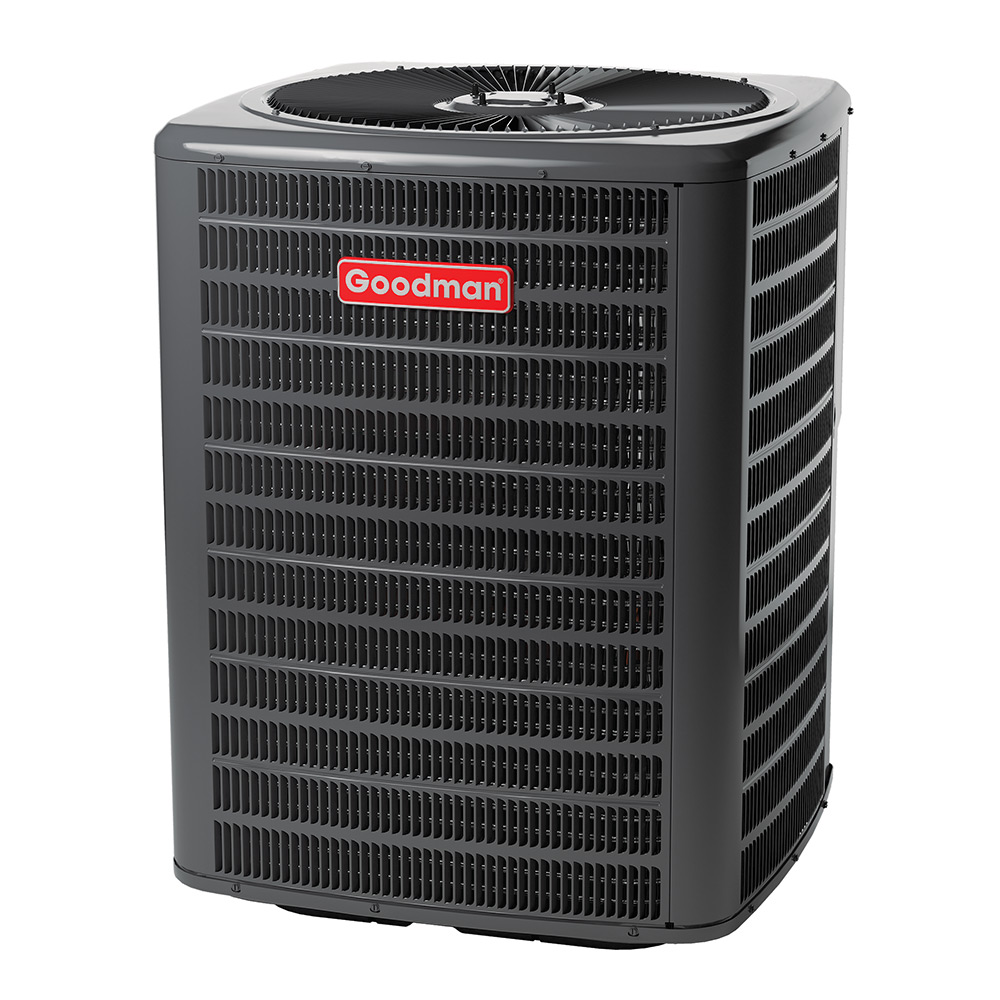

5 Ton 15.9 SEER2 Goodman Central Air Conditioner Condenser - R32

Item: HA26439Model: GLXS5BA6010 Qty: 1

5 Ton Goodman Evaporator Coil - Upflow/Downflow - TXV - 24.5" Cabinet - R-32

Item: HA25182Model: CAPTA6030D3 Qty: 1

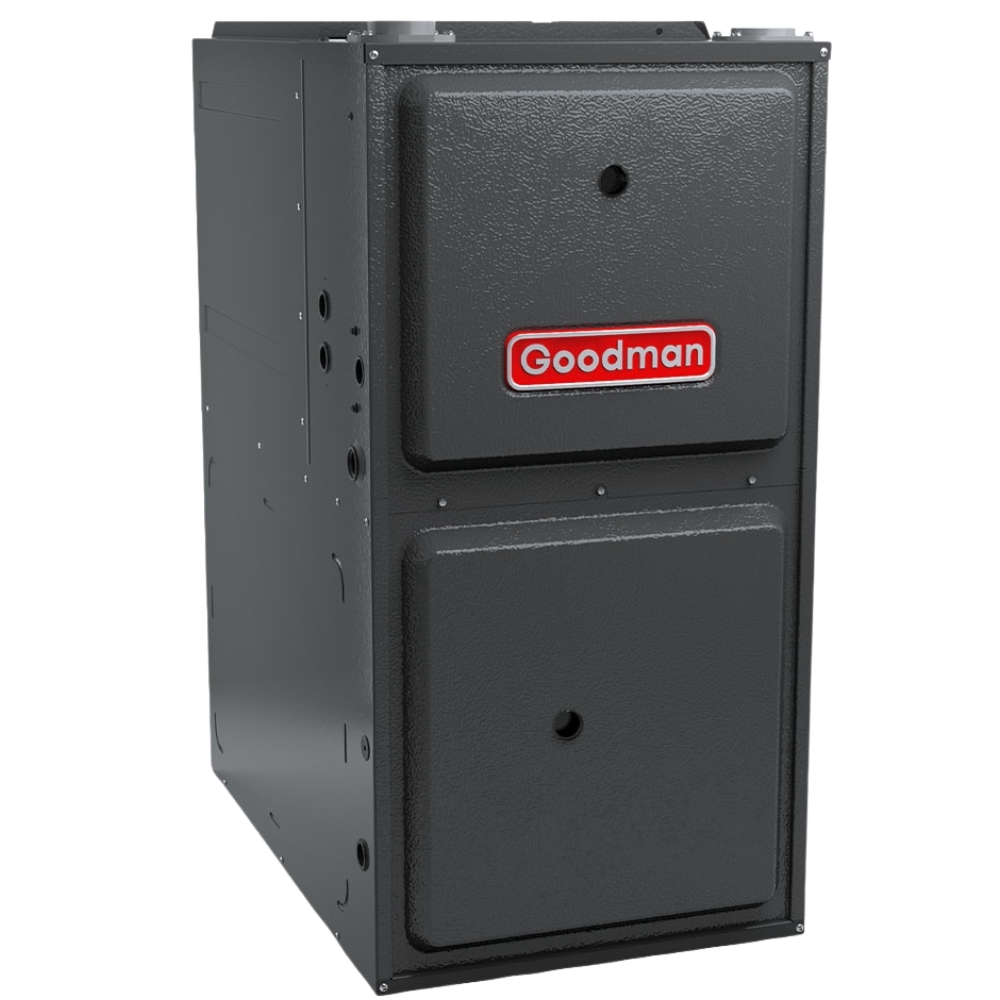

120k BTU 96% AFUE Variable Speed Goodman Gas Furnace - Upflow/Horizontal - 24.5" Cabinet

Item: HA27700Model: GRVT961205DN Qty: 1

Description / Documents

Additional Documents

From the Manufacturer

CAPFA/CAPTA/CHPTA/CAPEA R-32 Specification Manual

CAPFA/CAPTA/CHPTA/CAPEA Warranty

CAPTA R-32 Parts Manual

GLXS3B;4B;5B / GLZS4M Warranty Sheet

GLXS5B Specification Manual

Customer Reviews / Q&A

Specifications

System Overview

Model	GLXS5BA6010,CAPTA6030D3,GRVT961205DN
AHRI Number	216613957
Gas Furnace Efficiency	96+%
Bundle Avg Coverage Area	2,500 - 3,000 Sq Ft
Bundle Cooling Capacity	5 Ton
Bundle Cooling Efficiency (SEER2)	16
Primary Heating Capacity	115,001 - 120,000 BTU
Region Compatibility	Nationwide

GLXS5BA6010 Specifications:

Model	GLXS5BA6010
UPC	647379451677
Product Height (in)	41.6
Avg Coverage Area	2,500 - 3,000 Sq Ft
Product Length (in)	35.5
Compressor	Single Stage
Product Width (in)	35.5
Cooling Capacity	5 Ton
Electrical Phase	1-Phase
Line Set Connection Type	Sweat
Liquid Line Size	3/8 inch
Max Overcurrent Protection	60 amps
Weight (lbs)	287.000000
Refrigerant	R-32
Cooling Efficiency (SEER2)	15.9
Suction Line Size	1 1/8 inch
System Application Type	Central Split Systems
Voltage	240
Warranty	10 Year Parts
Region Compatibility	Nationwide

CAPTA6030D3 Specifications:

Model	CAPTA6030D3
UPC	663051688452
Product Height (in)	30
Air Flow Direction	Downflow, Upflow
Product Length (in)	21
Cooling Capacity	5 Ton
Product Width (in)	24.5
Line Set Connection Type	Sweat
Liquid Line Size	3/8 inch
Weight (lbs)	70.000000
Refrigerant	R-32
Suction Line Size	7/8 inch
Warranty	10 Year Parts

GRVT961205DN Specifications:

Model	GRVT961205DN
UPC	633190304377
AHRI Number	216619916
Product Height (in)	34.5
Gas Furnace Efficiency	96+%
Product Length (in)	28.875
Configuration	Floor Mounted
Product Width (in)	24.5
Air Flow Direction	Horizontal, Upflow
Avg Coverage Area	2,000 - 2,400 Sq Ft
Blower Motor	Variable Speed
Cooling Compatibility (up to)	4 Ton
Electrical Phase	1-Phase
Exhaust Pipe	PVC
Fuel Source	Natural Gas
Gas Valve	Two Stage
Max Overcurrent Protection	20 amps
Weight (lbs)	156.000000
Primary Heating Capacity	115,001 - 120,000 BTU
System Application Type	Central Split Systems
Vent Connection	3 inches
Voltage	120
Warranty	10 Year Parts, Lifetime Heat Exchanger
