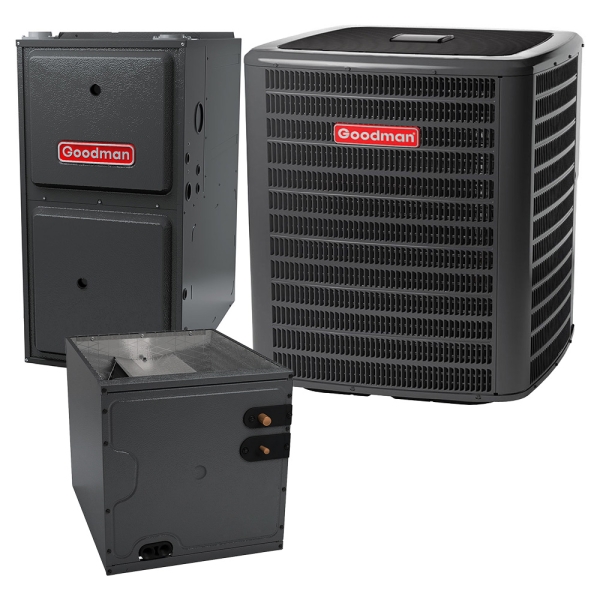

5 Ton 16 SEER2 2 Stage 100k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32
Shop All GOODMAN

Check your options without affecting your credit score.
Promotional APR options may also be available, subject to approval.

Description / Documents
Supplying your home with steady heating and cooling results shouldn’t be a struggle for your HVAC system, even when temperatures in your region vary wildly during seasonal shifts. With the 5 Ton 16 SEER2 2 Stage 100k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32, you can ensure year-round comfort that isn’t dependent on the conditions outside of your home. With the support of both ETL listing and AHRI certification, the Goodman AC & Gas System passes the thorough scrutiny of independent agencies aiming to validate the safety and operational claims of the hardware. Make your 2500 to 3000 square foot space into your personal oasis in every season with an upgrade to a 5 Ton Goodman Split System.

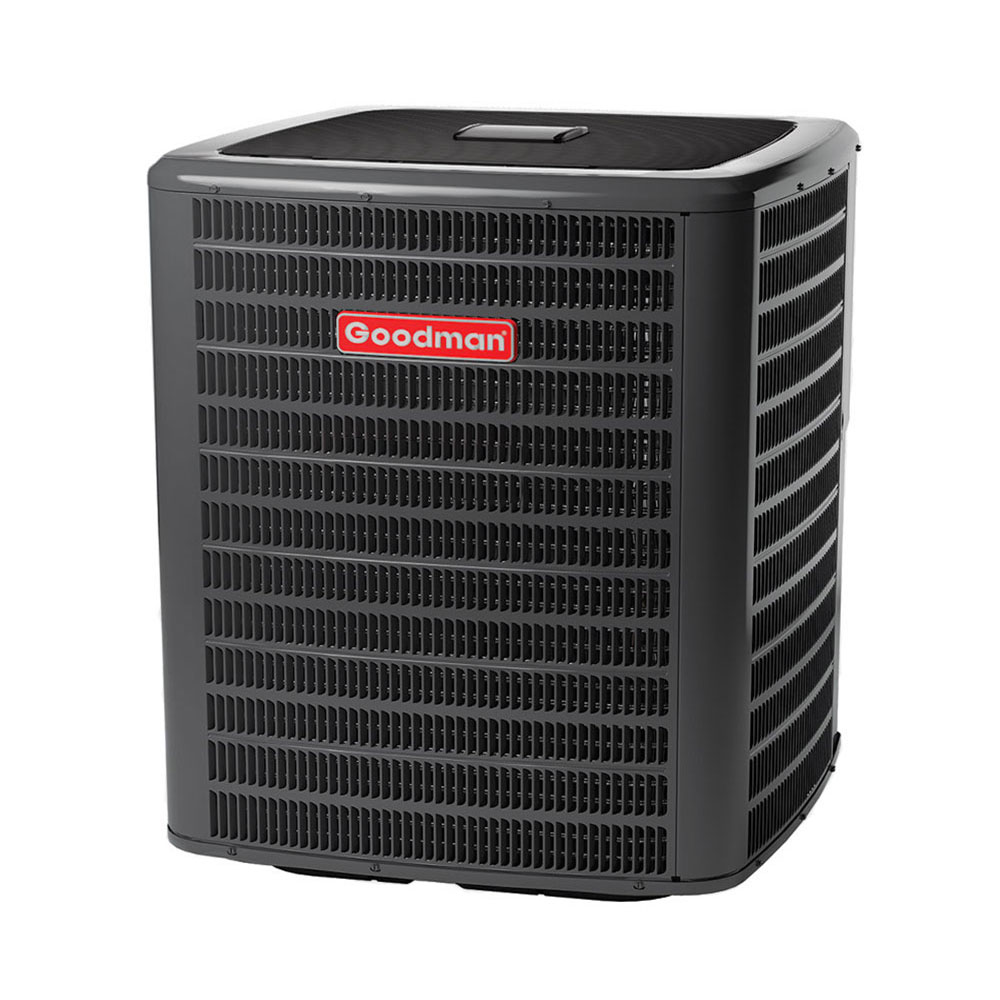

If temperatures outside skyrocket, the AC in the 5 Ton 16 SEER2 2 Stage 100k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32 brings you back down to earth by filling your home with cool comfort. Designed to last, the heavy-gauge galvanized steel cabinet comes with a baked-on powder-paint finish, steel louver coil guard, and rust-resistant screws that help the unit pass a 500-hour salt spray test. Offering access via the side panel and removable grille-style top that complies with UL 60335-2-40 regulations, as well as a venturi for increased airflow velocity, maintaining the efficient operation of the Goodman AC is a breeze for any qualified professional. Outfitted with factory-installed hardware like a filter drier, transformer, and both high and low pressure switches, you can relax knowing the Goodman Split System has everything you need to keep cool all summer long.
During the frigid chill of winter weather, the furnace in the 5 Ton 16 SEER2 2 Stage 100k BTU 96% AFUE Variable Speed Goodman Central Air Conditioner & Gas Furnace Split System - Vertical - R32 brings the heat you need to stay toasty. Boasting a heavy-gauge steel cabinet treated with a baked enamel finish, the Goodman Furnace offers flexibility with certification for both direct and non-direct venting as well as left and right side connection points for gas and electrical hook-ups. Packed to the brim with game changing hardware like two separate heat exchangers, ComfortBridge technology, a two-stage gas valve, and two-speed induced draft motor, the Goodman Split System goes above and beyond to give you quietly efficient performance that won’t leave you wanting.
When you have access to the powerful climate control capabilities of this AC condenser, furnace, and evaporator coil combination, it’s easy to picture the quality of life within your grasp. Why accept anything less? Decide on a 5 Ton 100k BTU Vertical Variable Speed Goodman Central Air Conditioner & Gas Furnace Split System making use of R32 refrigerant today and guarantee total control over your indoor temperatures for years to come.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | GLXT7CA6010,CAPTA6030C3,GRVT961005CN |
|---|---|
| AHRI Number | 216614424 |
| Gas Furnace Efficiency | 96+% |
| Bundle Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Bundle Cooling Capacity | 5 Ton |
| Bundle Cooling Efficiency (SEER2) | 16 |
| Primary Heating Capacity | 95,001 - 100,000 BTU |
| Region Compatibility | Nationwide |
GLXT7CA6010 Specifications:
| Model | GLXT7CA6010 |
|---|---|
| UPC | 663051743946 |
| AHRI Number | 217276487 |
| Product Height (in) | 41.6 |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Two Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 60 amps |
| Weight (lbs) | 283.000000 |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 17.2 |
| Suction Line Size | 1 1/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
CAPTA6030C3 Specifications:
| Model | CAPTA6030C3 |
|---|---|
| UPC | 663051688445 |
| Product Height (in) | 30 |
| Air Flow Direction | Downflow, Upflow |
| Product Length (in) | 21 |
| Cooling Capacity | 5 Ton |
| Product Width (in) | 21 |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Weight (lbs) | 66.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| Warranty | 10 Year Parts |
GRVT961005CN Specifications:
| Model | GRVT961005CN |
|---|---|
| UPC | 663051702905 |
| AHRI Number | 216619914 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 29 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,750 - 2,100 Sq Ft |
| Blower Motor | Variable Speed |
| Cooling Compatibility (up to) | 3.5 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Two Stage |
| Max Overcurrent Protection | 20 amps |
| Weight (lbs) | 143.000000 |
| Primary Heating Capacity | 95,001 - 100,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
