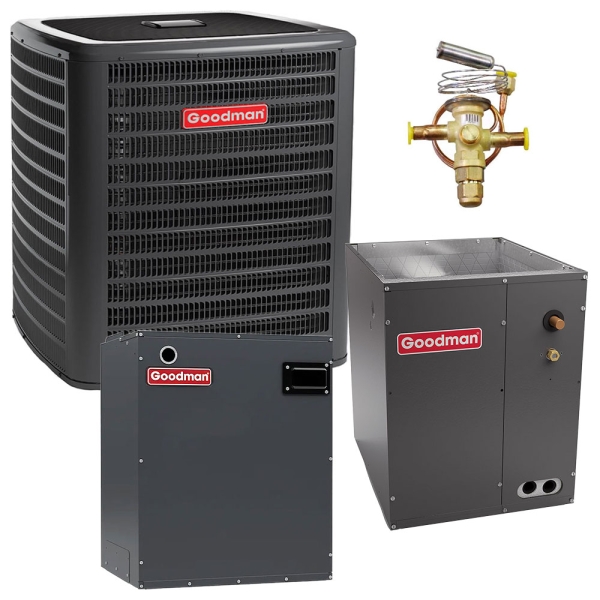

5 Ton 16 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical

Item
HA23503
Condition
New

Get $100 Cash Back on Your Qualifying Purchase

  1. Spend over $1000 on heating and air equipment.
  2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
  3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
  4. Get a check mailed to you for $100.

Limited Time Offer. Act Now!

Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


Get everything right and save time

Contact an expert now.

Holiday Savings 15% Off Use Code: Gift15


What's included

Tolerating inconsistent cooling in your residence during the summer months can be exhausting. Say goodbye to the oppressive heat and immerse yourself in the invigorating chill afforded by the 5 Ton 16 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical. Every individual aspect of this remarkable Goodman Split System was purposefully chosen to yield unwavering results. The Air Conditioner not only adheres to UL 60335-2-40 standards but also complies with the unit integrity regulations specified in the 2020 Florida Building Code when coupled with the proper anchor bracket kit. The Air Handler blows two separate air cabinet leak ASHRAE 193 standards out of the water, maintaining less than 2% at 1 inch of water and less than 1.4% at 0.5 inches of water. The AHRI certification and ETL listing on all elements ensure that all operational claims are verified. With the capacity to manage areas spanning from 2500 to 3000 square feet and sporting an impressive SEER2 rating of 16, this 5 Ton Goodman system empowers you to conquer the heat.

Delight in the comforting ambience that stops the summer heat at your door with the 5 Ton 16 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical. Engineered to withstand various adverse weather conditions, this Goodman AC showcases a robust steel louver coil guard, rust-resistant screws, and a heavy-gauge galvanized-steel cabinet with a 500-hour salt-spray finish. Allowing ample room for accessories and sporting controls that are easily accessible, this Goodman Air Conditioner flaunts a pragmatic single-panel design. The installation process for this 5 Ton Goodman system is simplified with the inclusion of a factory-installed filter drier, transformer, and high/low pressure switches.

The air handler contained in the 5 Ton 16 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical is brimming with hardware that provides you with the resilience you've been wanting in every corner of your residence. This Goodman Air Handler confronts any challenge with a variable-speed ECM blower motor, CFM indicator, and foil-faced insulation within the internal casing. The adaptability offered is unmatched, taking advantage of an adjustable low CFM, inherent compatibility with multi-stage heat pump and cooling applications, and the optional 3kW-21kW electric heat kits. Finished in a galvanized, leather grain-embossed coating, this 5 Ton Goodman is effectively shielded from external elements.

The 5 Ton 16 SEER2 Multi Speed Goodman Central Air Conditioner Split System - Vertical has a powerful final piece in the evaporator coil. This corrosion-resistant Goodman Evaporator Coil employs a check flowartor for fluid integration with both cooling and heat pump applications through a factory-installed thermal expansion valve. Utilizing foil-faced insulation and a rust-resistant, UV-resistant, DecaBDE-free thermoplastic drain pan, you can finally relax knowing that you and your family can enjoy the summertime without melting in the heat.

Wrap yourself in a cozy blanket, pour a cup of steaming hot chocolate, and bask in the comfort of your wildest fantasies as this remarkable Goodman Split System makes that dream a reality.


4 to 5 Ton Variable Speed Goodman Modular Blower - Multiposition - 24.5" Cabinet

4 to 5 Ton Variable Speed Goodman Modular Blower - Multiposition - 24.5

Manufacturer Highlights

The Goodman® brand MBVC Series Modular Blower offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Variable-speed ECM blower motor
  • Direct drive, multi-speed PSC blower motor
  • ComfortNet™ Communicating System compatible
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • 3 kW - 21 kW electric heat kits
  • Blower section usable as electric heater
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain embossed finish
  • AHRI certified; ETL listed
More Information
Model GSXC706010,CAPT4961D4,MBVC2000AA,TX5N4
UPC 663051642980
AHRI Number 208683880
Bundle Avg Coverage Area 2,500 - 3,000 Sq Ft
Bundle Cooling Capacity 5 Ton
Bundle Cooling Efficiency (SEER2) 16
EER2 12
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

CAPT4961D4 Specifications:

More Information
Model CAPT4961D4
UPC 663051465121
Product Height (in) 30
Air Flow Direction Vertical
Product Length (in) 21
Cooling Capacity 4 Ton, 5 Ton
Product Width (in) 24.5
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 76.000000
Suction Line Size 7/8 inch
Warranty 10 Year Parts

MBVC2000AA-1 Specifications:

More Information
Model MBVC2000AA-1
UPC 663051528086
Product Height (in) 30
Blower Motor Variable Speed
Product Length (in) 21
Condenser/Coil Compatibility 4 Ton, 5 Ton
Product Width (in) 24.5
Cooling Capacity 4 Ton, 5 Ton
Electrical Phase 1-Phase
Max Overcurrent Protection 15 amps
Weight (lbs) 86.000000
Voltage 240
Warranty 10 Year Parts

TX5N4 Specifications:

More Information
Model TX5N4
UPC 681344941473
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Weight (lbs) 2.000000
Warranty 1 Year
