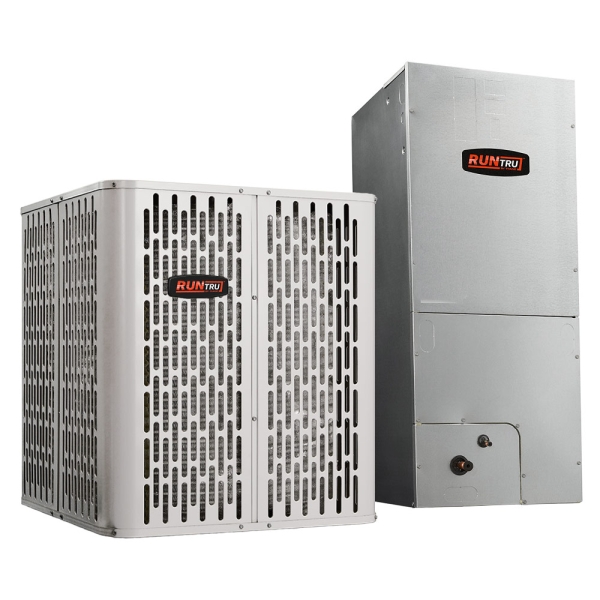

5 Ton 16 SEER2 Multi Speed Trane RunTru Central Air Conditioner Split System - Multiposition

Item
HA23706
Models A4AC5060D1000, A4AH4E60B1C30A
Condition
New


Customize 5 Ton 16 SEER2 Multi Speed Trane RunTru Central Air Conditioner Split System - Multiposition

* Required Fields

In stock

Ships Within 2-3 Business Days
Summary

    Get $100 Cash Back on Your Qualifying Purchase

    1. Spend over $1000 on heating and air equipment.
    2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
    3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
    4. Get a check mailed to you for $100.

    Limited Time Offer. Act Now!

    Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


    Get everything right and save time

    Contact an expert now.

    This Bundle Includes

    5 Ton 16 SEER2 Trane RunTru Central Air Conditioner Condenser
    Item: HA23692 Model: A4AC5060D1000
    Qty: 1

    What's included

    Are you worn out from grappling with your antiquated AC system? Bid farewell to erratic temperature swings and usher in a new era of consistency with the 5 Ton 16 SEER2 Multi Speed Trane RunTru Central Air Conditioner Split System. Earning both AHRI and UL 1995 certifications, and boasting a remarkable SEER2 rating of 16, you can rest assured that every performance claim has been verified to guarantee that your 2500 to 3000 square foot space gets the benefits of an elevated standard of climate control. Designed to maintain peak performance even in scorching temperatures of up to 115 degrees Fahrenheit, this Trane Split System excels even in the most tropical regions. While the standard configuration of this Trane AC cools your space to a comfortable 55 degrees Fahrenheit, a range of optional ambient kits give you the necessary tools to lower your home's temperature to a chilly 20 degrees Fahrenheit, promising the adaptability required to meet your desired home ambiance.

    The air conditioning system integrated into the 5 Ton 16 SEER2 Multi Speed Trane RunTru Central Air Conditioner Split System makes use of a plethora of carefully selected features to produce consistent results. The unit's casing, constructed from heavy-gauge galvanized steel, is further reinforced with a weather-resistant powder paint coating. Bolstering this resilience, all panels have succeeded when put to a 1000-hour salt spray test, guaranteeing long-lasting durability. The condenser coil receives even more safeguarding in the form of louvered panels on all four sides, facilitating minimized air resistance and increased heat transfer. Arriving directly from the factory fully charged with ten feet of tested connecting line, this Trane AC includes all the tools necessary to simplify the setup process, saving you both time and money.

    The air handler in the 5 Ton 16 SEER2 Multi Speed Trane RunTru Central Air Conditioner Split System maintains an equally remarkable track record. Coming in a uniform color and stuffed with captured foil-faced insulation, this Trane Air Handler achieves a R-4.2 insulating value while maintaining an outstanding air leak percentage of 2% or less. The all-aluminum coil resists corrosion while options for upflow, downflow, and horizontal left or right orientation give this 5 Ton Trane the hardware flexibility to accommodate your home's unique layout needs. The easily removable horizontal drain pan even streamlines common servicing tasks.

    With all these benefits and more, why postpone the decision another second? Elevate your home's comfort with this Trane AC bundle and transform your residence into your personal haven.

    Warranty Terms

    For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

    For additional warranty information, click here.

    More Information
    Model A4AC5060D1000,A4AH4E60B1C30A
    UPC 647535882727
    AHRI Number 213145554
    Bundle Avg Coverage Area 2,500 - 3,000 Sq Ft
    Bundle Cooling Capacity 5 Ton
    Bundle Cooling Efficiency (SEER2) 16
    EER2 12
    Region Compatibility Nationwide
    California Residents see Prop 65 WARNING

    A4AC5060D1000 Specifications:

    More Information
    Model A4AC5060D1000
    UPC 647535882727
    Product Height (in) 45
    Avg Coverage Area 2,500 - 3,000 Sq Ft
    Product Length (in) 34
    Compressor Single Stage
    Product Width (in) 34
    Cooling Capacity 5 Ton
    Electrical Phase 1-Phase
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 50 amps
    Weight (lbs) 306.000000
    Refrigerant R-410a
    Cooling Efficiency (SEER2) 16
    Suction Line Size 7/8 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts, 10 Year Compressor
    Region Compatibility Nationwide

    A4AH4E60B1C30A Specifications:

    More Information
    Model A4AH4E60B1C30A
    UPC 647535850375
    Product Height (in) 55.75
    Configuration Floor Mounted
    Product Length (in) 21.13
    Air Flow Direction Downflow, Horizontal, Upflow
    Product Width (in) 23.5
    Blower Motor High Efficiency
    Cooling Capacity 5 Ton
    Electrical Phase 1-Phase
    Heat Strip Compatibility Up to 25 kW
    Line Set Connection Type Sweat
    Liquid Line Size 3/8 inch
    Max Overcurrent Protection 15 amps
    Weight (lbs) 185.000000
    Refrigerant R-410a
    Suction Line Size 7/8 inch
    System Application Type Central Split Systems
    Voltage 240
    Warranty 10 Year Parts, 10 Year Evaporator Coil
