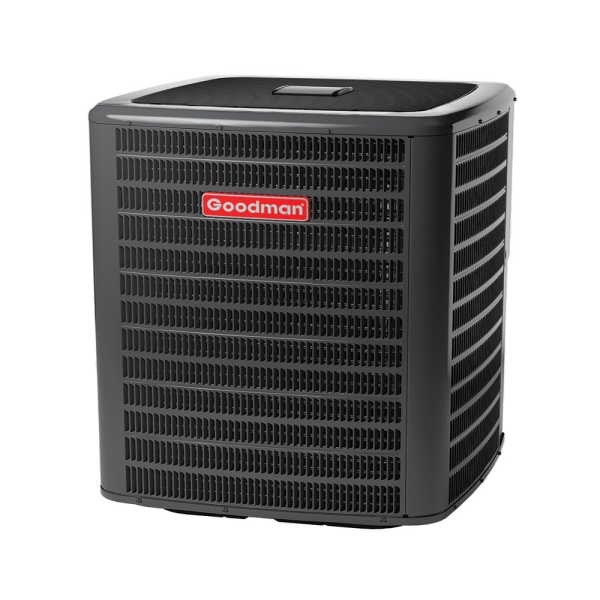

5 Ton 17.2 SEER2 Goodman Central Air Conditioner Condenser
GOODMAN

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
Isn't it time for your AC to join the 21st century? Upgrade to the 5 Ton 17.2 SEER2 Goodman Central Air Conditioner Condenser to see what all the fuss is about. With an impressive SEER2 rating of 17.2 and a two-stage Copeland Ultra-Tech scroll compressor, this Goodman Condenser elevates your comfort to a whole new level. Experience the power of an innovative venturi system that enhances airflow velocity allowing this Goodman AC to cool your home rapidly and efficiently. Designed to effortlessly cool expansive living spaces ranging from 2500 to 3000 square feet, this Goodman Air Conditioner delivers exceptional performance effortlessly. Whether you opt for a ground-level or rooftop installation, this 5 Ton Condenser is the missing piece that transforms your house into your oasis.
Engineered with durability in mind, the 5 Ton 17.2 SEER2 Goodman Central Air Conditioner Condenser takes advantage of an array of features. With the refrigerant fully charged to accommodate 15' of tubing length, this Goodman AC requires no vacuuming during installation. The factory-installed filter drier effectively protects against the infiltration of moisture, solid contaminants, and acid to promote optimal performance. The sturdy steel louver coil guard offers reliable defense against most unfavorable weather. To further enhance its longevity, this Goodman Condenser utilizes rust-resistant screws and features permanently lubricated fan motors. The heavy-gauge galvanized-steel cabinet is not only durable but also boasts an attractive architectural gray powder-paint with a 500-hour salt-spray finish to ensure a fresh and pristine appearance for many years to come.
Streamlined maintenance was a key focus when designing the 5 Ton 17.2 SEER2 Goodman Central Air Conditioner Condenser. Equipped with service valves that have sweat connections and easily accessible gauge ports as well as contactors with ground lug connections, this Goodman AC allows for isolation of any affected systems for troubleshooting. This Goodman Condenser even offers plenty of space for field-installed accessories in a single-panel access to all controls that ensures effortless servicing. With the inclusion of ComfortBridge technology and the CoolCloud app, the stored diagnostics allow any HVAC professional to put their best foot forward on any investigation.
Certifications play a vital role in the HVAC industry, and the 5 Ton 17.2 SEER2 Goodman Central Air Conditioner Condenser excels here as well. With AHRI certification and ETL listing, this Goodman Condenser surpasses industry standards. The removable grille-style top design ensures full compliance with UL 60335-2-40 safety requirements. When properly anchored using the appropriate anchor bracket kit, this Goodman AC even meets the stringent unit integrity code requirements of the 2020 Florida Building Code to guarantee resilience against hurricane-type winds. With all these benefits, there really is no time like the present to see the difference modern technology has brought to HVAC.
Customer Reviews / Q&A
Specifications
System Overview
| Model | GSXC706010 |
|---|---|
| UPC | 663051642980 |
| Product Height (in) | 41.63 |
| Avg Coverage Area | 2,500 - 3,000 Sq Ft |
| Product Length (in) | 35.5 |
| Compressor | Two Stage |
| Product Width (in) | 35.5 |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 60 amps |
| Weight (lbs) | 305.000000 |
| Refrigerant | R-410a |
| Cooling Efficiency (SEER2) | 17.2 |
| Suction Line Size | 1 1/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
