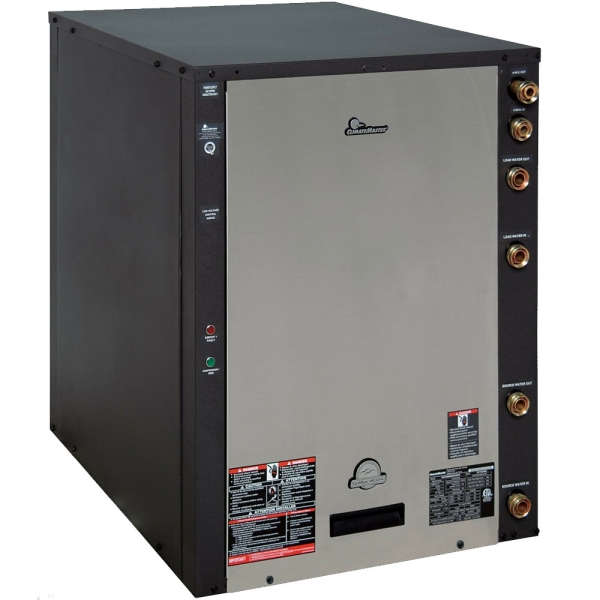

5 Ton 17.3 EER ClimateMaster Brazed Plate Geothermal Radiant Floor System

Item: HA17331
Model: TBW060AGD0XB0BS
Condition: New

5 Ton 17.3 EER ClimateMaster Brazed Plate Geothermal Radiant Floor System Zoom

Photo Gallery


Availability: Built to order

Ingram Financing

* Required Fields

Ships Within 20 Weeks

Up To $500 Cash Back

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat


What's Included

Helpful Buying Guides

What customers are saying...




Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.


AHRI Number 8693568
Avg Coverage Area 2,500 - 3,000 Sq Ft
Compressor Single Stage
Cooling Capacity 5 Ton
EER 17.3
Electrical Phase 1-Phase
Heat Pump Efficiency (COP) 3.1
HWG Connection 1 inch
Load Connection 1 inch
Loop Connection 1 inch
Max Overcurrent Protection 60 amps
Primary Heating Capacity 55,001 - 60,000 BTU
Product Height (in) 33
Product Length (in) 30.6
Product Width (in) 25.4
Series Tranquility
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 268.0000
California Residents see Prop 65 WARNING


Q & A

Do you have questions about this product?

Sort by ASC
What air handler is paired with this to provide cooling?
What is max temp reached going into radiant floor heat?
