Overview
Product Features
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Specifications
Product Specifications

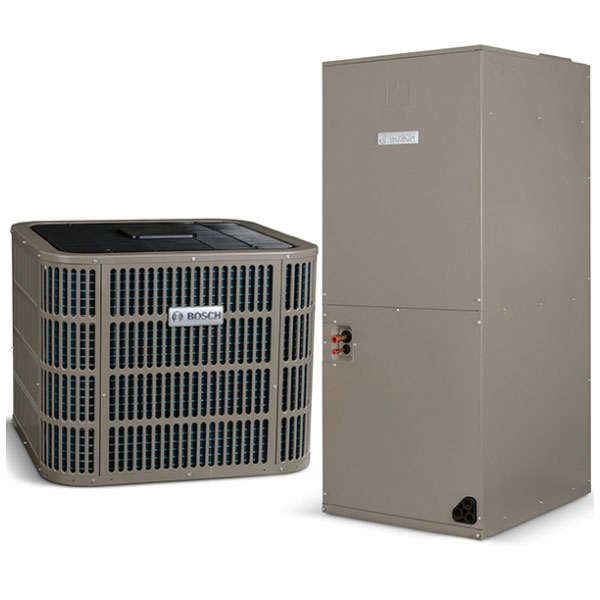

Model | BOVA-60HDN1-M18M,BVA-60WN1-M18 |
---|---|
AHRI Number | 8860511 |
Avg Coverage Area | 2,500 - 3,000 Sq Ft |
Cooling Capacity | 5 Ton |
Cooling Efficiency | 17 SEER |
EER | 11.2 |
Heat Pump Efficiency (HSPF) | 9.5 |
Region Compatibility | Nationwide |
Individual Item Specifications
BOVA-60HDN1-M18M Specifications:
Model | BOVA-60HDN1-M18M |
---|---|
Avg Coverage Area | 2,500 - 3,000 Sq Ft |
Compressor | Inverter |
Cooling Capacity | 4 Ton, 5 Ton |
Electrical Phase | 1-Phase |
Heat Pump Efficiency (HSPF) | 9.5 |
Lineset Connection Type | Sweat |
Liquid Line Size | 3/8 inch |
Max Overcurrent Protection | 60 amps |
Primary Heating Capacity | 55,001 - 60,000 BTU |
Product Height | 33.19 |
Product Length | 29.13 |
Product Width | 29.13 |
Refrigerant | R-410a |
Cooling Efficiency | 18 SEER |
Suction Line Size | 7/8 inch |
System Application Type | Central Split Systems |
Voltage | 240 |
Warranty | 10 Year Parts |
Weight | 205.0000 |
Region Compatibility | Nationwide |
BVA-60WN1-M18 Specifications:
Model | BVA-60WN1-M18 |
---|---|
Air Flow Direction | Downflow, Horizontal, Upflow |
Configuration | Floor Mounted |
Blower Motor | Variable Speed |
Cooling Capacity | 5 Ton |
Electrical Phase | 1-Phase |
Heat Strip Compatibility | Up to 20 kW |
Lineset Connection Type | Sweat |
Liquid Line Size | 3/8 inch |
Max Overcurrent Protection | 15 amps |
Product Height | 54.5 |
Product Length | 22.75 |
Product Width | 22 |
Suction Line Size | 7/8 inch |
System Application Type | Central Split Systems |
Voltage | 240 |
Warranty | 10 Year Parts |
Weight | 170.0000 |
