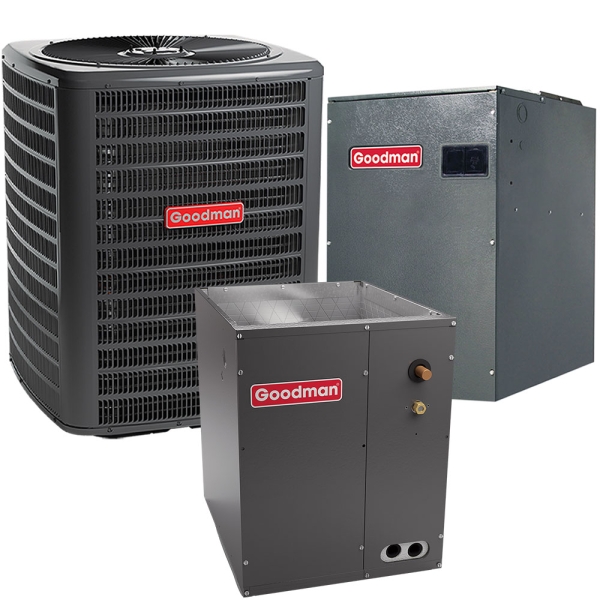

5 Ton 17 SEER2 Stage Variable Speed Goodman Heat Pump Central Split System - Vertical

Item
HA16417
Condition
New
Was: $7,157.00 $7,157.00
See Details... Click for price


Get $100 Cash Back on Your Qualifying Purchase

  1. Spend over $1000 on heating and air equipment.
  2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
  3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
  4. Get a check mailed to you for $100.

Limited Time Offer. Act Now!

Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


Get everything right and save time

Contact an expert now.

Contractors

Call 270-575-9595 Now

What's included



Manufacturer Highlights

The Goodman® brand CAPF Coils with Flowraters are made for use with split-system air conditioners and heat pumps. Reliable components and quality manufacturing make these coils a perfect choice for the value minded consumer.

Standard Features

  • Rust-resistant, high-temperature thermoplastic drain pans feature a low water retention design
  • Check flowrater expansion device for heat pump or cooling only applications
  • Field-installed Thermal Expansion Valve Kits are available
  • All aluminum tubing and wave pattern aluminum fin coils

Cased Coil Cabinet Features

  • Foil-face insulation
  • Galvanized leather-grain finish and high-quality post-paint models are available
  • Split-seam front-excellent access

Accessories

  • Field-Installed Expansion Valve Kits (TX3N2 or TX5N2)
  • Field-Installed High-Temperature Drain Pan Kits; maximum temperature rating is 400ºF

Manufacturer Highlights

The Goodman® brand MBVC Series Modular Blower offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Variable-speed ECM blower motor
  • Direct drive, multi-speed PSC blower motor
  • ComfortNet™ Communicating System compatible
  • Auto configuration of the airflow and tonnage in communicating mode
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system
  • CFM indicator
  • Fault recall of six most recent faults
  • Provides adjustable low CFM for efficient fan-only operation
  • Improved humidity and comfort control
  • Built-in compatibility with multi-stage heat pump and cooling applications
  • 3 kW - 21 kW electric heat kits
  • Blower section usable as electric heater
  • Horizontal or vertical configuration capabilities
  • 21" depth for easier attic access
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain embossed finish
  • AHRI certified; ETL listed

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

More Information
Model GSZC180601,CAPF4961D6,MBVC2000AA,TX5N4
UPC 663051549326
AHRI Number 201690740
Bundle Avg Coverage Area 2,500 - 3,000 Sq Ft
Bundle Cooling Capacity 5 Ton
Bundle Cooling Efficiency 17 SEER
EER 12.5
Heat Pump Efficiency (HSPF) 9.5
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

CAPF4961D6 Specifications:

More Information
Model CAPF4961D6
UPC 663051440425
Product Height (in) 30
Air Flow Direction Vertical
Product Length (in) 21
Cooling Capacity 4 Ton, 5 Ton
Product Width (in) 24.5
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Weight (lbs) 76.000000
Suction Line Size 7/8 inch
Warranty 10 Year Parts

MBVC2000AA-1 Specifications:

More Information
Model MBVC2000AA-1
UPC 663051528086
Product Height (in) 30
Blower Motor Variable Speed
Product Length (in) 21
Condenser/Coil Compatibility 4 Ton, 5 Ton
Product Width (in) 24.5
Cooling Capacity 4 Ton, 5 Ton
Electrical Phase 1-Phase
Max Overcurrent Protection 15 amps
Weight (lbs) 86.000000
Voltage 240
Warranty 10 Year Parts

TX5N4 Specifications:

More Information
Model TX5N4
UPC 681344941473
Product Height (in) 3.7
Product Length (in) 9.7
Product Width (in) 5.8
Weight (lbs) 2.000000
Warranty 1 Year
