This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

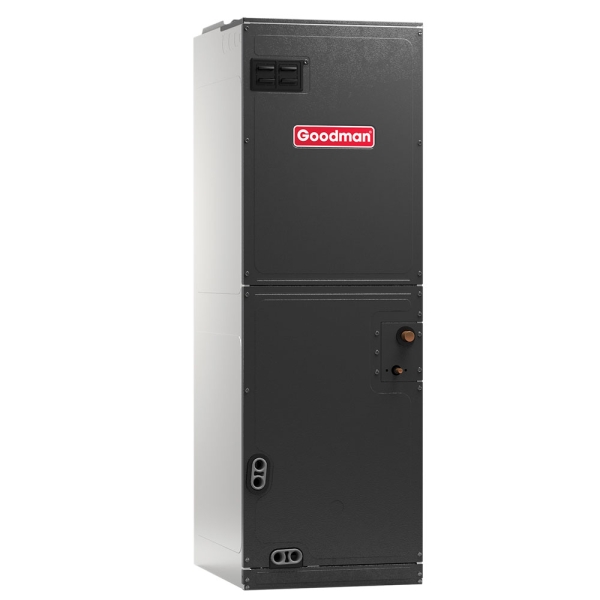

5 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - Flowrater

Item: HA10318
Model: ARUF61D14
Condition: New

5 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - Flowrater Zoom

Photo Gallery

The Goodman ARUF61 Air Handler with SmartFrame is a solid entry into the HVAC air handling market. This unit delivers multi-position, multi-speed functionality with total R410A refrigerant compatibility. It has great warranty protection alongside safety features like transformer and blower-time delay, better condensate management, and a factory-sealed cabinet that hits a leakage rate below 2%. You even get a direct-drive motor for real air volume variation in both heating and cooling applications.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

The Goodman ARUF61 Air Handler with SmartFrame is a solid entry into the HVAC air handling market. This unit delivers multi-position, multi-speed functionality with total R410A refrigerant compatibility. It has great warranty protection alongside safety features like transformer and blower-time delay, better condensate management, and a factory-sealed cabinet that hits a leakage rate below 2%. You even get a direct-drive motor for real air volume variation in both heating and cooling applications.
Goodman HA10318

Manufacturer Highlights

The Goodman® brand ARUF Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Suitable for use with the refrigerants R-410A and R-22
  • All-aluminum evaporator coil
  • Check flowrater expansion device for cooling-only and heat pump applications
  • Direct-drive, multi-speed motor
  • Transformer and blower time-delay on all units
  • AHRI Certified; ETL Listed

Cabinet Features

  • Rust-resistant, fully insulated steel cabinet
  • Galvanized, leather grain-embossed finish
  • Attractive Architectural Gray painted front panels
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • Built-in filter rack for 1" filter (filter not included)
  • Power supply entry at top; low-voltage entry on left side and top

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model ARUF61D14
UPC 663051512504
Air Flow Direction Downflow, Horizontal, Upflow
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 25 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 58
Product Length (in) 21
Product Width (in) 24.5
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 155.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Can I use this air handler with r-22?
Might be a dumb question, but I can’t find what size filter I should use with this unit. I’ve checked the manuals and unit, but haven’t found anything helpful. I just had it installed and 1 wasn’t included. I’d hate to buy the wrong size and have to make another trip.
