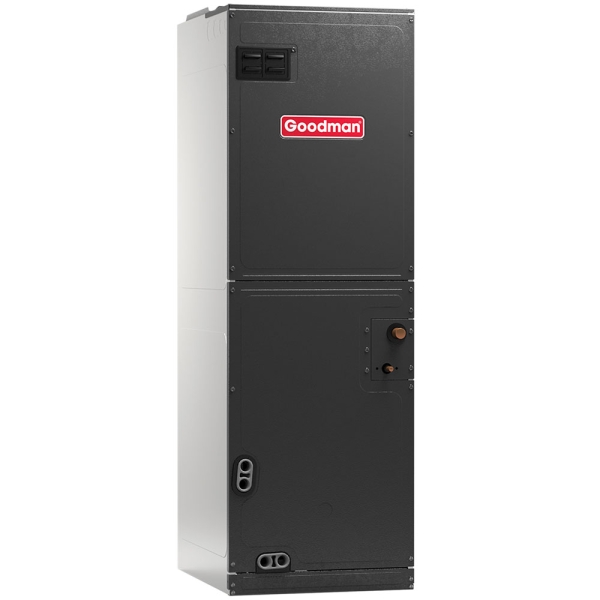

5 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet

Item: HA10332
Model: ASPT60D14
Condition: New

5 Ton Multi Speed Goodman Air Handler - Multiposition - 24.5" Cabinet Zoom

Photo Gallery

If you want an air handling unit with an all-aluminum evaporator coil and a superior performance multi-speed motor, you want a Goodman ASPT60 Air Handler with Smart Frame cabinet. This quality family of air handlers comes standard with great features like multiple electrical knockouts, blower time-delay, internal TXV valve, glueless cabinet insulation retention, coil-mounting track, and an attractive Architectural Gray finish. Ideal for both heating and cooling applications.

Availability: In stock

$1,027.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...

Overview

Product Features

If you want an air handling unit with an all-aluminum evaporator coil and a superior performance multi-speed motor, you want a Goodman ASPT60 Air Handler with Smart Frame cabinet. This quality family of air handlers comes standard with great features like multiple electrical knockouts, blower time-delay, internal TXV valve, glueless cabinet insulation retention, coil-mounting track, and an attractive Architectural Gray finish. Ideal for both heating and cooling applications.
Goodman HA10332

Manufacturer Highlights

The Goodman® brand ASPT Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Internal factory-installed thermal expansion valves for cooling and heat pump applications
  • Direct drive, multi-speed ECM blower motor
  • All-aluminum evaporator coil
  • Coil mounting track for quick repositioning
  • Optimized for use with R-410A refrigerant
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • 3 kW - 25 kW electric heater kits
  • Horizontal or vertical configuration capabilities
  • Rigid SmartFrame™ cabinet
  • 21" depth for easier attic access
  • DecaBDE-free thermoplastic drain pan with secondary drain connections
  • Screw-less sides and back helps to reduce condensation when installed in humid locations
  • Foil-faced insulation covers the internal casing to reduce cabinet condensation
  • Galvanized, leather grain-embossed finish
  • Glue-less cabinet insulation retention
  • Tool-less filter access
  • AHRI certified; ETL listed

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model ASPT60D14
UPC 663051493315
Air Flow Direction Horizontal, Vertical
Configuration Floor Mounted
Blower Motor Multi Speed
Cooling Capacity 5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 25 kW
Lineset Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height 58
Product Length 21
Product Width 24.5
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight 167.0000
