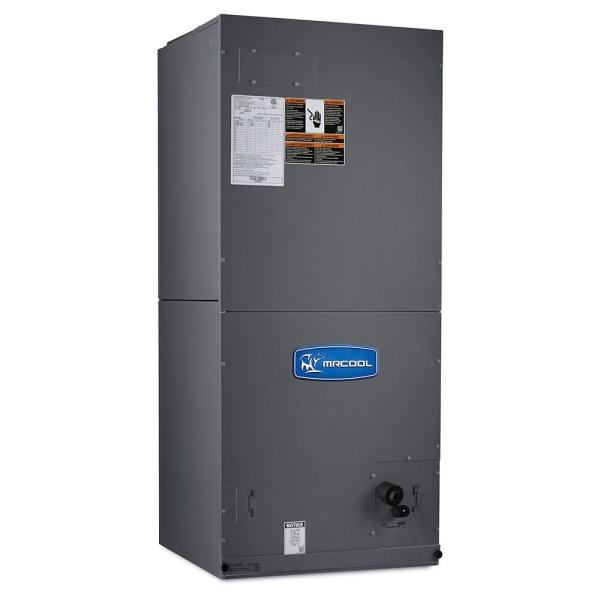

5 Ton Multi Speed MrCool Signature Central Air Handler - Multiposition
Shop All MRCOOL

This product has been discontinued.
Recommended Alternative:
Description / Documents
Is your house hot in summer and cold in winter? Do your utility bills drive you crazy all year long? Are you ready to upgrade your home interior with next generation HVAC technology? Properly matched, the 5 Ton Multi Speed MrCool Signature Central Air Handler - Multiposition is the kind of air handling unit that can help transform your home comfort situation from awful to awesome.
How does the MAHM060CTA help a central split system overachieve? It could be the improved gasketing on the doors that account for an air leakage rate 2% and less. Or it might be the efficient PSC blower motors with standard transformer and relay. On the other hand, don't discount the enhanced tube-and-fin coil design made up of a specialized aluminum alloy that provides superior heat transfer capability along with long lasting corrosion protection.
As you probably expect, it is all those things combined that make the 5 Ton Multi Speed MrCool Signature Central Air Handler - Multiposition a highly desirable air handling unit. That's even before we mention amazing features like its compact profile and upflow, horizontal left, or horizontal right installation flexibility. And don't forget the ability to accommodate an auxiliary heat kit up to 20kW with easy plug connections or the baked polyester finish over double hemmed galvanized steel.
Ready to buy? Just add this awesome MAHM060CTA air handler to your cart. Or if you prefer to order over the phone, call us and we'll get this unit out to you ASAP!
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MAHM060CTA |
|---|---|
| UPC | 810512031139 |
| Product Height (in) | 59.75 |
| Configuration | Floor Mounted |
| Product Length (in) | 22 |
| Air Flow Direction | Downflow, Horizontal, Upflow |
| Product Width (in) | 21.5 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 186.000000 |
| Series | Signature |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
