This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

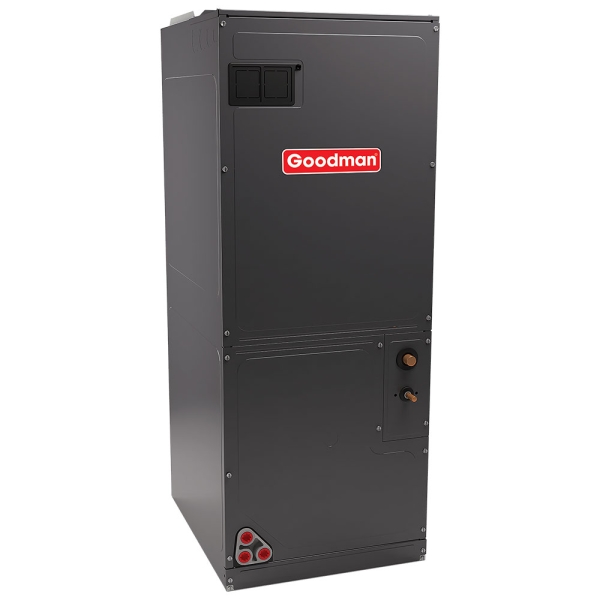

5 Ton Variable Speed Goodman Air Handler - Multiposition - 24.5" Cabinet

Item: HA10420
Model: AVPTC61D14
Condition: New

5 Ton Variable Speed Goodman Air Handler - Multiposition - 24.5" Cabinet Zoom

Photo Gallery

Your home should be a place where you can relax in peace. All too often, inferior air comfort and escalating energy costs get in the way. Solve those problems with a Goodman AVPTC61 Multi-Position Variable-Speed Air Handler. With adjustable low CFM for efficient fan-only operation, the air handling unit also features an internal thermal expansion valve, ECM blower motor, ComfortNet compatibility, automatic airflow configuration, CFM indicator, and a 10-Year Parts Limited Warranty.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Your home should be a place where you can relax in peace. All too often, inferior air comfort and escalating energy costs get in the way. Solve those problems with a Goodman AVPTC61 Multi-Position Variable-Speed Air Handler. With adjustable low CFM for efficient fan-only operation, the air handling unit also features an internal thermal expansion valve, ECM blower motor, ComfortNet compatibility, automatic airflow configuration, CFM indicator, and a 10-Year Parts Limited Warranty.
Goodman HA10420

Manufacturer Highlights

The Goodman brand AVPTC Series Air Handler offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Compatible with the ComfortNet™ Communicating System family of products
  • Maximum four low-voltage wires required for operation in communicating mode
  • Auto configuration of the airflow and tonnage in communicating mode
  • In non-communicating mode, up to 12 field-selectable airflow settings can be adjusted to optimize the system's CFM for each individual mode of operation
  • R-410A refrigerant-compatible
  • Factory-installed thermal expansion valves for cooling and heat pump applications
  • Variable-speed ECM blower motor
  • All-aluminum evaporator coil
  • Provides constant CFM over a wide range of static pressure conditions independent of duct system; provides low CFM for efficient fan-only operation
  • CFM indicator
  • Improved humidity control and comfort
  • Compatible with heat pumps and variable capacity cooling applications
  • Built-in coil has horizontal, vertical, and downflow drain pans with secondary drain connections
  • AHRI Certified; ETL Listed


Cabinet Features

  • Fully insulated, painted steel cabinet with attractive Architectural Gray finish
  • Compact, versatile upflow, downflow, or horizontal multi-position installations
  • Low-voltage cabinet connections; control circuit is arranged to permit staging
  • Power supply on top; low-voltage entry on top or side
  • Cabinet air leakage less than 2.0% at 1.0 inch H2O when tested in accordance with ASHRAE standard 193
  • Cabinet air leakage less than 1.4% at 0.5 inch H2O when tested in accordance with ASHRAE standard 193
  • Foil-faced insulation is glued in place and covers the entire blower case to reduce operating sound and cabinet condensation

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model AVPTC61D14
UPC 663051521230
Air Flow Direction Downflow, Horizontal, Upflow
Configuration Floor Mounted
Blower Motor Variable Speed
Cooling Capacity 5 Ton
Electrical Phase 1-Phase
Heat Strip Compatibility Up to 25 kW
Line Set Connection Type Sweat
Liquid Line Size 3/8 inch
Max Overcurrent Protection 15 amps
Product Height (in) 58
Product Length (in) 21
Product Width (in) 24.5
Suction Line Size 7/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 10 Year Parts
Weight (lbs) 167.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

I am looking at the AVPTC61D14 air handler to go with the GSZC180481 heat pump.

I prefer the cabinet as opposed to the separate air handler and a-coil. I understand that the AVPTC61D14 is multi-positional but I am curious what I need to do to use it for an upflow applications since in the picture is shows the coil on the bottom.

Thank you for your assistance.
