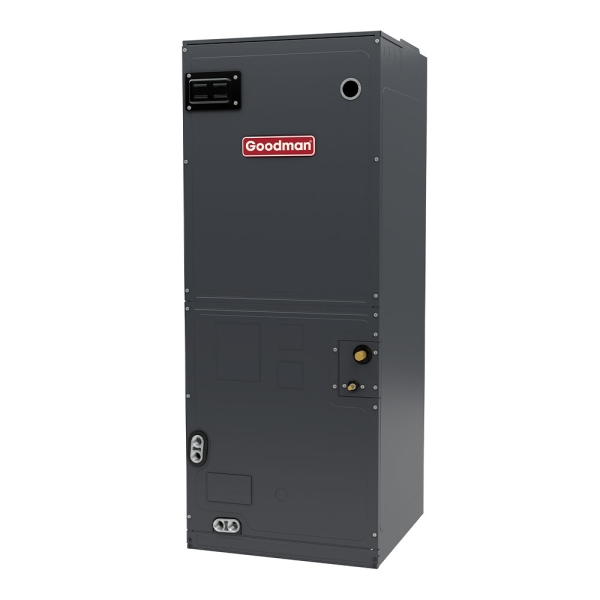

5 Ton Variable Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - R32
Shop All GOODMAN

In stock
Ships Within 2-3 Business Days
Description / Documents
Technology is always advancing, and that sentiment is especially true in the HVAC industry. Whether your system was designed for a different climate than the one your region now deals with, or you’re simply unhappy with its results, the 5 Ton Variable Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - R32 has the ability to provide the powerful performance you’ve been missing. Earning AHRI certification, ETL listing, and UL 60335-2-40 compliance, the Goodman Air Handler proves the legitimacy of each operational and safety claim by undergoing thorough third-party inspections. Staying comfortable in your 2500 to 3000 square foot home is simple with the integration of the 5 Ton Goodman Handler.
Boasting carefully chosen components, the 5 Ton Variable Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - R32 is designed to go the distance for your indoor comfort. By including an electronic expansion valve, or EEV, the Goodman Air Handler can be hooked up to both air conditioners and heat pumps to work with any corresponding condenser. Coming with humidity control, a CFM indicator, and a variable-speed ECM blower motor, energy use is optimized without sacrificing any features. The all-aluminum construction supplies the coil with corrosion resistance, using the innate durability of the material to bolster the system’s lifespan. Thanks to the coil mounting track that simplifies repositioning, the Variable Speed Goodman Air Handler has everything you need to enjoy reliable results without unnecessary complexity.
Built to withstand any indoor hazards, the housing of the 5 Ton Variable Speed Goodman Air Handler - Multiposition - 24.5" Cabinet - R32 effectively traps out contaminants to ensure clean and reliable airflow. Crafted from galvanized, grain-embossed leather, equipped with screw-less back and sides, and utilizing glue-less retention to encase the inside of the cabinet with a lining of foil-faced insulation, regions and rooms with high humidity won’t cause problems for the Goodman Handler. With cabinet air leakage rates kept below 2% at 1” of water and less than 1.4% at 0.5” of water, the Goodman Handler maintains ASHRAE standard 193. Offering a flexible setup that works well in vertical and left or right horizontal applications, as well as tool-less filter access, the Goodman Air Handler goes above and beyond to meet your needs, no matter what they are.
What’s the benefit of leaving your climate control up to chance when a single change can supply the heating and cooling results you crave? Choose the 5 Ton Multiposition Variable Speed Goodman Air Handler in a 24.5" Cabinet equipped with R32 refrigerant today and ensure the top-tier temperature regulation you and your loved ones deserve.
Customer Reviews / Q&A
Specifications
System Overview
| Model | AHVE60DP1300 |
|---|---|
| UPC | 663051735224 |
| Product Height (in) | 58 |
| Configuration | Floor Mounted |
| Product Length (in) | 21 |
| Air Flow Direction | Horizontal, Vertical |
| Product Width (in) | 24.5 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 25 kW |
| Line Set Connection Type | Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15/15 amps |
| Weight (lbs) | 167.000000 |
| Refrigerant | R-32 |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
