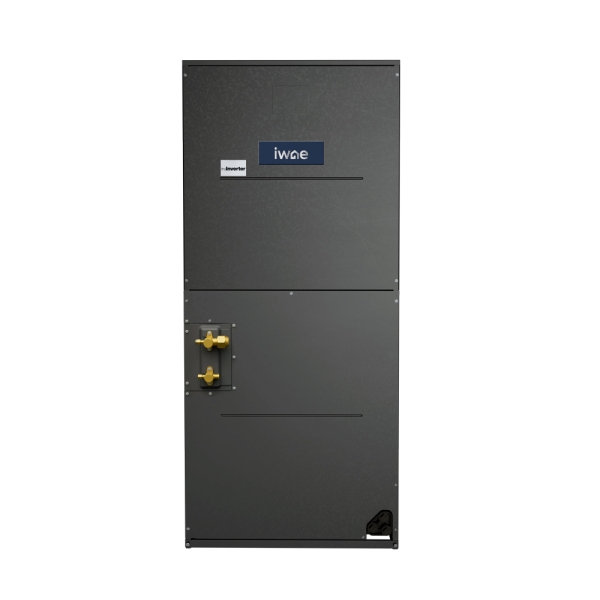

5 Ton Variable Speed IWAE TruInverter Central Air Handler - Multiposition - 24.5" Cabinet - TXV - R454B
Shop All IWAE

In stock
Ships Within 2-3 Business Days
Accessories
Description / Documents
In search of an indoor air handler for your new construction or retrofit project can leave you wading shoulder deep through a sea of HVAC options. When you’re ready to climb out of the waters, let the 5 Ton Variable Speed IWAE TruInverter Central Air Handler - Multiposition - 24.5" Cabinet - TXV - R454B and the included thermostat carry you back to shore. Undergoing stringent third-party evaluations that test every functional claim, the IWAE TruInverter Air Handler proves their validity by earning AHRI certification and ETL listing. Keep your 2500 to 3000 square foot home comfortable with this 5 Ton IWAE Air Handler.
Decked out in intelligent hardware, the 5 Ton Variable Speed IWAE TruInverter Central Air Handler - Multiposition - 24.5" Cabinet - TXV - R454B is designed to give you the results you desire regardless of what the weather is doing outside. The evaporator coil is made of only aluminum and the motor is water-proof, adding corrosion resistance and durability to maintain top-tier performance over time. R454B refrigerant reduces your GWP and drops ozone depletion potential to zero. Integrating TruInverter technology that keeps your home’s temperatures stable using less energy, this IWAE Air Handler is a cost-effective solution to keep your home’s temperatures comfortable in every season.
Constructed to accommodate a wide range of home requirements, the 5 Ton Variable Speed IWAE TruInverter Central Air Handler - Multiposition - 24.5" Cabinet - TXV - R454B offers thoughtful versatility to save you time and money at every step of the process. Able to perform with equal effectiveness in upflow, downflow, and left or right horizontal applications, this IWAE Multiposition Air Handler fits wherever you need it. A sealed cover saves space to integrate an electric heat kit, streamlining the installation process in areas with harsh winters that need an extra boost of heating power. Thanks to a factory-installed A2L sensor, pull-out drain pan, and self-diagnostic capabilities, this IWAE Air Handler goes above and beyond to optimize your quality of life from every angle.
Between the next level functionality and the included warranty that gives you 10 years of coverage on parts and a limited lifetime on the compressor, there’s no reason to continue tolerating inadequate climate control results in your home. Bring in the 5 Ton Variable Speed Multiposition IWAE TruInverter Central Air Handler housed in a 24.5" Cabinet with TXV and R454B refrigerant today and maximize your indoor ambiance all year long.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | IWAEAMPVT60F21BA |
|---|---|
| Product Height (in) | 56 |
| Configuration | Floor Mounted |
| Product Length (in) | 21 |
| Air Flow Direction | Downflow, Horizontal, Upflow, Vertical |
| Product Width (in) | 24.5 |
| Blower Motor | Variable Speed |
| Cooling Capacity | 5 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 20 kW |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 3/8 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 161.000000 |
| Refrigerant | R-454b |
| Series | TruInverter |
| Suction Line Size | 7/8 inch |
| System Application Type | Central Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts, Lifetime Compressor |
