53k BTU Multi Speed Revolv Mobile Home Electric Furnace - Downflow/Upflow
Shop All REVOLV

This product has been discontinued.
Recommended Alternative:
Description / Documents

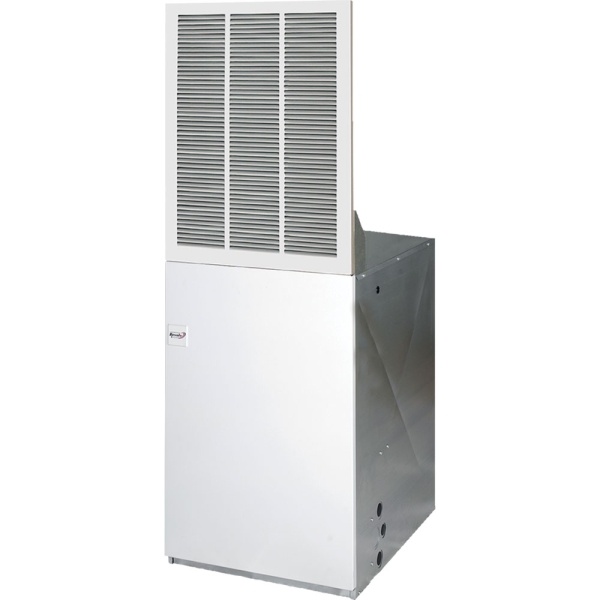

The Revolv RE9X15N4 model is designed to fit any installation. They can be used in both upflow and downflow systems making them the perfect fit for any home. This model can be paired with either air conditioners or heat pumps up to a maximum of four tons of cooling. The RE9X15N4 uses a four-speed motor for the blower, giving you excellent airflow that can be scaled to the size of your home. Features such as sealed bearings on the motors, reliable controllers, and a built-in circuit breaker means these units are made to last and provide uninterrupted comfort for years.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | RE9X15N4 |
|---|---|
| UPC | 663132344239 |
| Product Height (in) | 56 |
| Configuration | Floor Mounted |
| Product Length (in) | 24.75 |
| Air Flow Direction | Downflow, Upflow |
| Product Width (in) | 20 |
| Blower Motor | Multi Speed |
| Cooling Capacity | 4 Ton |
| Electrical Phase | 1-Phase |
| Heat Strip Compatibility | Up to 15 kW |
| Max Overcurrent Protection | 80 amps |
| Weight (lbs) | 110.000000 |
| Primary Heating Capacity | 50,001 - 55,000 BTU |
| System Application Type | Mobile Home Systems |
| Voltage | 240 |
| Warranty | 2 Year Parts |
