This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

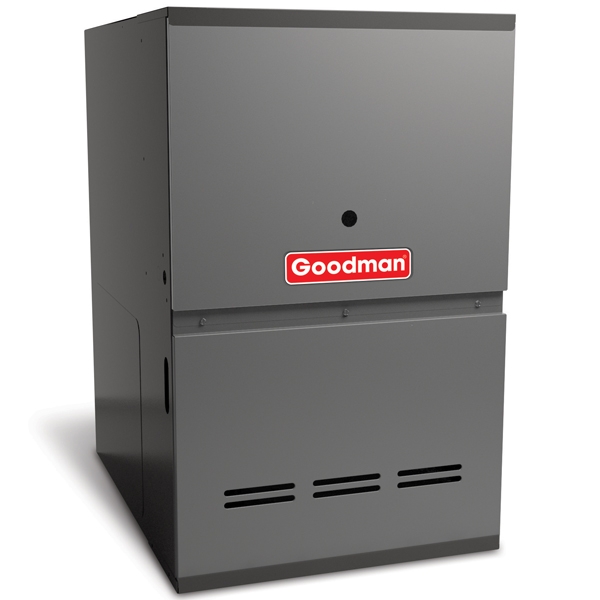

60k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow - 14" Cabinet

Item: HA10594
Model: GDH80603AN
Condition: New

60k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow - 14" Cabinet Zoom

Photo Gallery

The Goodman GDH8 Series 80% AFUE Two-Stage Gas Furnace is another solid Goodman entry into the always competitive winter heating market. This unit has a lot of great features, but the star of the show is the heavy-duty aluminized-steel dual-diameter tubular heat exchanger protected by an unmatched Lifetime Limited Heat Exchanger Warranty. This combinations ensures you have highly efficient heating in cold weather, and peace of mind for decades to come.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

The Goodman GDH8 Series 80% AFUE Two-Stage Gas Furnace is another solid Goodman entry into the always competitive winter heating market. This unit has a lot of great features, but the star of the show is the heavy-duty aluminized-steel dual-diameter tubular heat exchanger protected by an unmatched Lifetime Limited Heat Exchanger Warranty. This combinations ensures you have highly efficient heating in cold weather, and peace of mind for decades to come.

Do you need to upgrade your home heater? Are you looking to minimize your installation costs? Here is a retrofit solution that should fit your existing installation.

Th GDH80603AN furnace is of the downflow variety which means your supply duct will be installed at the bottom of your furnace. Many installations are in the upflow variety, so if you are unsure, have a technician confirm which type you may need. Retrofit solutions, like this one, can decrease your installation and material costs by reusing your existing venting system. High efficiency furnaces may require a new venting system installed, which could increase your material and installation costs.

Goodman has been serving the residential HVAC industry for over three decades, providing consumers with quality products at an affordable price. This 60k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow - Cabinet is a member of the mid-efficiency line and carries an 80% efficiency rating. With a 60,000 BTU input and 48,000 BTU output, this furnace is great for homes that are up to 800 square feet in northern climates and 1600 square feet in southern climates. Like many Goodman products, this furnace was built to last you for years to come. If you ever do experience problems this furnace comes with a great parts warranty.

Keep Goodman at the top of your list when it’s time to upgrade your furnace!

Goodman HA10594

Manufacturer Highlights

The Goodman® brand GDH Gas Furnaces offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Two-stage gas valve Dual$aver™ technology that allows the installer to activate the two-stage valve with the flip of a dipswitch
  • 110V Silicon Nitride igniter
  • Quiet four-speed direct-drive circulating blower motor
  • Furnace control board with self-diagnostics, color-coded low-voltage terminals and provisions for electronic air cleaner and 24-volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self-adjusting feature automatically adjusts furnace to high- or low-stage operation based on outside temperature without an outdoor temperature sensor
  • Certain models available with low NOx emissions

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger compartment
  • Factory-sealed to achieve 2% or less leakage rate at 1.0" water gauge external duct static pressure
  • Designed for multi-position installation: Dedicated Downflow
  • Removable bottom for side or bottom return applications
  • Convenient left or right connection for gas/electric service
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GDH80603AN
UPC 663051536203
AHRI Number 5012570
Gas Furnace Efficiency 80%
Air Flow Direction Downflow
Configuration Floor Mounted
Avg Coverage Area 1,000 - 1,200 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 55,001 - 60,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 14
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 92.0000
