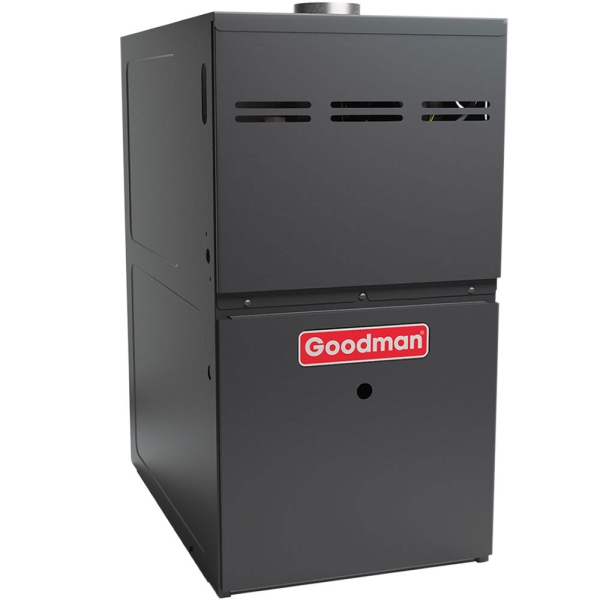

60k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet
Shop All GOODMAN

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
Enduring inconsistent climate control in your home that forces you to layer up to survive the winter weather inside your home is no longer the way to live your life. With the remarkable strides in HVAC technology, a single change to the 60k BTU 80% AFUE Multi-Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 17.5 inches Cabinet can vastly improve the comfort you feel within your home. This Goodman Gas Furnace earns both ETL listing and AHRI certification, proving the validity of all operational claims. Boasting an extraordinary 80% AFUE rating, this 60k BTU Goodman easily warms your 1000 to 1200 square foot space. With the capability to uphold cabinet air leak rates of 2% or less, this adaptable Upflow or Horizontal Goodman Furnace focuses on maximum efficiency to make a noticeable impact on your space.
Crafted for enduring durability, the cabinet of the 60k BTU 80% AFUE Multi-Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 17.5 inches Cabinet acts as a protective fortress for internal hardware to help provide peak performance. With a fully insulated, heavy-gauge steel cabinet treated with a baked-enamel coating, this Goodman Gas Furnace safeguards the inner workings from common household hazards and unwanted contaminants that could impede the unit's efficiency. Simplifying maintenance for certified professionals, this Goodman with a 17.5 inches Cabinet grants unobstructed access to the internals through removable side and bottom returns. Offering the versatility for installation in either an upflow or horizontal application and equipped with both left and right connection options for gas and electric service, this 2 Stage Goodman Furnace promises the flexibility to cater to your home's distinct needs.
With such robust safety measures in place, the 60k BTU 80% AFUE Multi-Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 17.5 inches Cabinet is prepared to make a difference. The two-stage gas valve works with the multi-speed ECM circulator motor and two-speed induced draft blower to deliver silent and efficient heating. The SureStart Silicon Nitride igniter bolsters resilience, while the self-diagnostic control board self-monitors, streamlining troubleshooting. A low, continuous fan operation circulates air, fostering a comfortable atmosphere in every room. Engineered to collaborate with most common installations, this Goodman Gas Furnace is the holistic solution ready to give year-round comfort for you, your home, and your family.
With a myriad of benefits within your reach, why delay your decision any further? Obtain this 2 Stage Goodman Gas Furnace today and transform your home into the luxurious sanctuary you've been yearning for.
Customer Reviews / Q&A
Specifications
System Overview
| Model | GM9C800603BX |
|---|---|
| UPC | 663051627604 |
| AHRI Number | 207254752 |
| Product Height (in) | 33.375 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,000 - 1,200 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Two Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 107.000000 |
| Primary Heating Capacity | 55,001 - 60,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 4 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
