This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

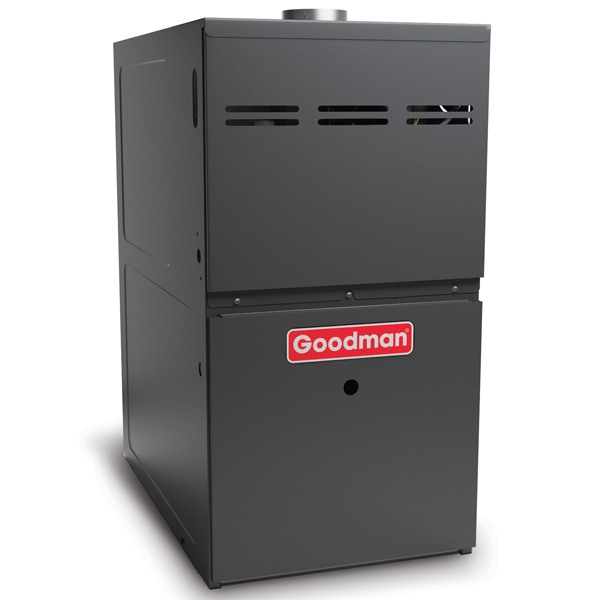

60k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 14" Cabinet

Item: HA10652
Model: GMS80603AN
Condition: New

60k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 14" Cabinet Zoom

Photo Gallery

When it's cold outside, everybody wants to be warm. What you don't want to do is spend yourself into bankruptcy with an outdated, inefficient furnace. Upgrade your home HVAC system and your finances with an energy efficient Goodman GMS8 Series Single-Stage Gas Furnace. Designed for simple installation and long term convenience, a GMS8 Series unit features dual-diameter heat exchanger, hot-surface igniter, multi-speed blower, a durable cabinet, and lifetime warranty support.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

When it's cold outside, everybody wants to be warm. What you don't want to do is spend yourself into bankruptcy with an outdated, inefficient furnace. Upgrade your home HVAC system and your finances with an energy efficient Goodman GMS8 Series Single-Stage Gas Furnace. Designed for simple installation and long term convenience, a GMS8 Series unit features dual-diameter heat exchanger, hot-surface igniter, multi-speed blower, a durable cabinet, and lifetime warranty support.

Built standard with time-tested durability, the GMS80 gas furnace is a reliable choice for your home! Goodman engineered this unit to operate with a four-speed direct drive blower motor and a single-stage gas valve. Those pair up to deliver high performing results without making a lot of noise.

Other features include a well insulated heat exchanger compartment, factory sealed parts so you achieve 2% or less leakage, a control board complete with self-diagnostics, and a low voltage terminal block in case you want to attach additional parts such as a humidifier.

Goodman is a trusted source in the HVAC industry and uses its award-winning primary heat exchanger design to make the GMS80 a must-have heating element for any home. This is the smallest cabinet size from this line of Goodman furnaces, allowing it to be flexible enough to fit in a range of spaces. You can set it in the upright position, horizontally on its size and choose to direct air up flow, horizontal left or horizontal right depending on your preference.

The 60k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 14" Cabinet is ready for you to purchase at an affordable upfront price. At 80% AFUE, you are getting a mid-efficient furnace. Every 80 cents out of every $1 you spend on your gas bill is directly to pay for the heat that keeps your home content. For long term assurance, Goodman provides you an effective limited parts warranty.

Goodman HA10652

Manufacturer Highlights

The Goodman® brand GMS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Single-stage combination redundant gas valve
  • Norton hot surface mini-igniter
  • Quiet multi-speed direct-drive circulator blower motor
  • Furnace control board with self-diagnostics and lowvoltage terminal block
  • Quiet single-speed, induced-draft blower

Cabinet Features

  • Foil-faced insulation lines the heat exchanger compartment
  • Factory sealed to achieve 2% or less leakage rate at 1.0" water gauge external duct static pressure
  • Designed for multi-position installation: upflow, horizontal left or right
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMS80603AN
UPC 663051536340
AHRI Number 201702251
Gas Furnace Efficiency 80%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,000 - 1,200 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 55,001 - 60,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 14
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger
Weight (lbs) 130.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Does home depot do the installation?
How many sq ft will this service?
Is this unit comparable to a Carrier Model # FA4ANF030, a 2 ton heater unit Carrier 17 w x 46 L. This would be for a townhouse.
