This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

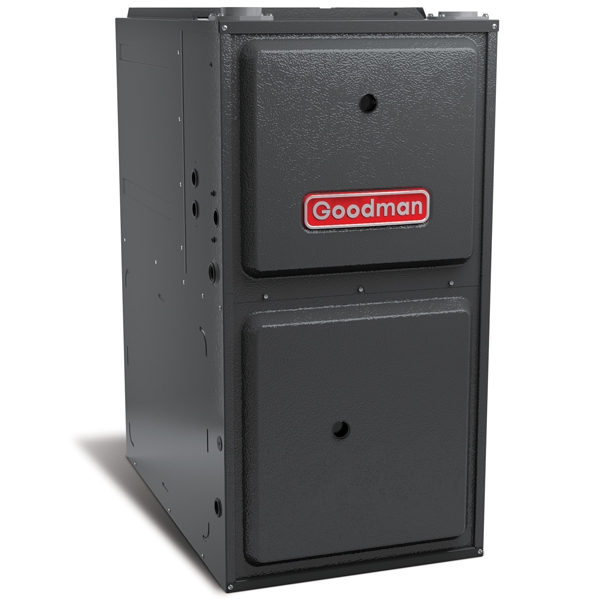

60k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet

Item: HA10666
Model: GMSS920603BN
Condition: New

60k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet Zoom

Photo Gallery

If you are a California resident in need of a good furnace, you should take a look at the Goodman GMSS92 60k BTU 92% AFUE 1200CFM Gas Furnace. Not only does this gas furnace comply with California Low NOx emissions standard, it is packed with great features. It comes with color-coded low-voltage terminals, self-diagnostic control board, a cabinet rated for an air leakage rate below 2%, and a heavy duty tubular heat exchanger.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

If you are a California resident in need of a good furnace, you should take a look at the Goodman GMSS92 60k BTU 92% AFUE 1200CFM Gas Furnace. Not only does this gas furnace comply with California Low NOx emissions standard, it is packed with great features. It comes with color-coded low-voltage terminals, self-diagnostic control board, a cabinet rated for an air leakage rate below 2%, and a heavy duty tubular heat exchanger.

In the process of adding on to your existing home and realize you need to upgrade your heating and air system? Then you have definitely come to the right place. IWAE.com has a large inventory of gas furnaces available in many different capacities.

A perfect example of the quality you can find here is the Goodman GMSS92 gas furnace. This exemplary heating unit is a good option for providing high efficiency performance and excellent comfort at a reasonable price. Built to provide the value of high efficiency, the GMSS92 has a 92% efficiency rating which you can expect to reduce your monthly bill compared to sticking with a previous generation, inefficient system.

So to create comfort on those cold winter days, get a gas furnace like the GMSS920603BN 60k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet. Loaded with plenty of features that will keep consumers and installing technicians happy, this furnace is easy to install. You will be glad to know this furnace is even backed by a great, long-term parts and replacement warranty should you ever experience a problem. If this furnace is a little too big for your expansion project, we also have other models to accommodate smaller spaces.

Goodman HA10666

Manufacturer Highlights

The Goodman® brand GMSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Multi-speed blower motor
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board
  • Color-coded low-voltage terminals
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Foil-faced insulated heat exchanger cabinet
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMSS920603BN
UPC 663051496439
AHRI Number 7367472
Gas Furnace Efficiency 92-94%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,000 - 1,200 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 55,001 - 60,000 BTU
Product Height (in) 34.5
Product Length (in) 28.75
Product Width (in) 17.5
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger
Weight (lbs) 112.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
I was on another site who discontinued this furnace. Is there a problem that you may know of? Goodman GMSS920603BN
Is the model gmss920603bn goodman 60k btu 92% gas furnace compatible with the model capf1824b6 1.5 t0 2 ton goodman coil? What is your delivery policy? Do you deliver to private residence? Can this furnace and coil be mounted on ceiling?
Hi do you have this in a down flow model ? Thanks p.s. what;s the cost for the gas to Lp conversion kit ?
Does this furnace come ready for propane or natural gas?
How big is the opening for the A coil box and/or heat exchanger. I'm building my trunk line now and would like the l and w for the plenum
