60k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Downflow/Horizontal - 17.5" Cabinet

Item: HA10576
Model: GCSS960603BN
Condition: New

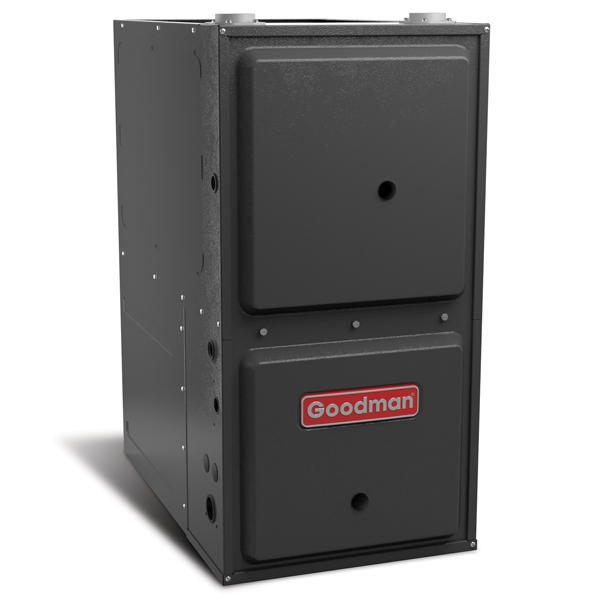

60k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Downflow/Horizontal - 17.5" Cabinet Zoom

Photo Gallery

Winter is cold. Stay warm with a quality gas furnace like the Goodman GCSS96 Single Stage 1200CFM 60k BTU 96% AFUE Gas Furnace designed for downflow/multi-position applications. Not only is this an ultra efficient heater, but it is also backed by industry-leading warranty protection. You even get dual heat exchangers, igniter, a control board with self diagnostics, color-coded low voltage terminals, and a single-speed induced draft blower.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Winter is cold. Stay warm with a quality gas furnace like the Goodman GCSS96 Single Stage 1200CFM 60k BTU 96% AFUE Gas Furnace designed for downflow/multi-position applications. Not only is this an ultra efficient heater, but it is also backed by industry-leading warranty protection. You even get dual heat exchangers, igniter, a control board with self diagnostics, color-coded low voltage terminals, and a single-speed induced draft blower.

If you’re searching for a reliable gas furnace that offers excellent value and comes at a budget-friendly price, you want the Goodman GCSS96! This 60k BTU, 96% AFUE, single-stage furnace is full of features that provide long-lasting functionality. Do you hate throwing away money on inefficient heating systems? The GCSS96 AFUE rating of 96% ensures that up to .96 cents of each of your hard-earned dollars goes toward your home heating costs! You can rest easy knowing your furnace is performing at maximum budget-friendly efficiency.

Expert technology creates a durable furnace that works industriously to meet your needs! An ultra-strong aluminized-steel heat exchanger combined with a stainless steel exchanger translates to more dependability, power, and efficiency in your home. And with an exceptionally quiet multi-speed motor, you’ll never have the problem of a noisy furnace interrupting the comfort and tranquility of your residence.

The downflow/horizontal functionality makes this unit ideal for attic, crawl space, or closet installation. You can enjoy functionality without disrupting the beauty of your home. A thermally insulated, easy-to-install cabinet is equipped for left or right gas and electrical connection points. The heavy-gauge steel construction minimizes sound and air leakage, meaning quiet function and greater efficiency for your home.

Engineered with a durable silicon nitride igniter that eliminates the need for an uneconomical pilot light, this unit will save you money over time! And with an automatic self-diagnostic control board that regularly monitors system performance, troubleshooting and HVAC repairs are simple and straightforward. Easy maintenance and money-saving features contribute to a high-efficiency product that provides maximum comfort inside your home.

Goodman HA10576

Manufacturer Highlights

The Goodman® brand GCSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board with constant memory fault code history output to a LED
  • Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Fully insulated heat exchanger and blower section
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GCSS960603BN
UPC 663051469358
AHRI Number 7365103
Gas Furnace Efficiency 96+%
Air Flow Direction Downflow, Horizontal
Configuration Floor Mounted
Avg Coverage Area 1,000 - 1,200 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 55,001 - 60,000 BTU
Product Height (in) 34.5
Product Length (in) 28.75
Product Width (in) 17.5
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 114.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
I have a 1200sq foot ranch home and I am looking to replace my furnace, is a 60btu to large for my home @96%afue
I am looking for a (2) stage up flow at 96.5%
I live in Rochester, ny, in the #5 zone, Moseley like to know the right BTU for my house size
I ordered the gcss960603bn . Does the come with lp conversion or dobu need to order the kit also?
Will this work in a manufactured home that vents out the roof or vertically rather than out the wall?
How much is it to have it installed?
