This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

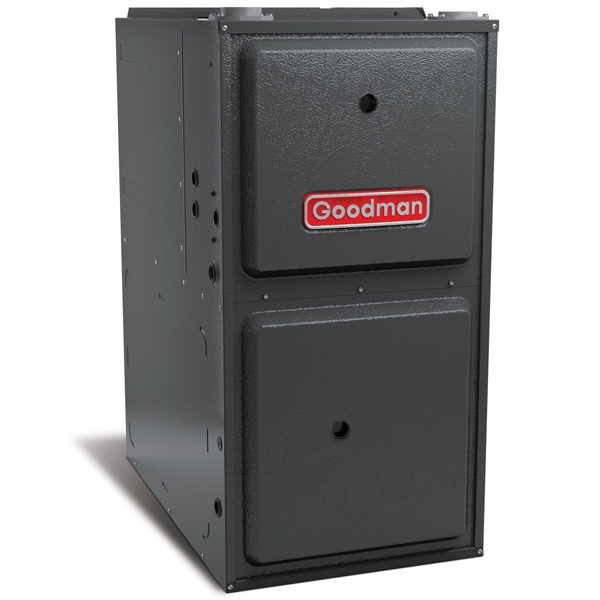

60k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet

Item: HA10674
Model: GMSS960603BN
Condition: New

60k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet Zoom

Photo Gallery

You need quality, efficiency, and economy in your home central heating and air system. For winter heating, the Goodman GMSS96 Single-Stage 1200CFM 60k BTU 96% AFUE Gas Furnace hits all those marks and more. It enjoys nearly unmatched warranty support. It features quality components like a heavy duty tubular heat exchanger made of aluminized steel and color-coded low-voltage terminals with provisions for air cleaner and humidifier installation. Plus, it is reasonably priced.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

You need quality, efficiency, and economy in your home central heating and air system. For winter heating, the Goodman GMSS96 Single-Stage 1200CFM 60k BTU 96% AFUE Gas Furnace hits all those marks and more. It enjoys nearly unmatched warranty support. It features quality components like a heavy duty tubular heat exchanger made of aluminized steel and color-coded low-voltage terminals with provisions for air cleaner and humidifier installation. Plus, it is reasonably priced.

Despite its compact footprint, the Goodman GMSS96 60,000 BTU furnace packs a punch! This is a long term heating solution that will keep you comfortable all winter long. It is designed to be highly efficient, so Goodman designed it to deliver 96% AFUE for an energy efficiency rating 16% higher than the most common gas furnace models. Which means that if you are replacing an outdated system, you can expect saving every month on your utility bills!

Before you start installation, check with your local municipal government and utility company to see if any rebate programs can save additional money off your purchase. If you are looking to take full advantage of your central air system, the GMSS96 is designed to work in conjunction with an existing Goodman air conditioner or heat pump split system.

The 60k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet comes with convenient components that make servicing simple. Featuring a control board with self diagnostics, and a color coded low voltage terminal strip, annual maintenance and problem solving should be quick and easy.

With a build quality that has been designed to withstand the test of time, you will enjoy the comfort this furnace provides for many years to come. Sized at 60,000 BTU, this furnace is typically used for residential installations between 1000 to 1200 square feet in size but this all depends on where you live.

Goodman HA10674

Manufacturer Highlights

The Goodman® brand GMSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Multi-speed blower motor
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board
  • Color-coded low-voltage terminals
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Foil-faced insulated heat exchanger cabinet
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMSS960603BN
UPC 663051469167
AHRI Number 7365096
Gas Furnace Efficiency 96+%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,000 - 1,200 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 55,001 - 60,000 BTU
Product Height (in) 34.5
Product Length (in) 28.875
Product Width (in) 17.5
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 114.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Can I get this for propane?
I would like to order this. Couldn't see where I could add LP conversion.
Is their an ecm conversion blower motor available for the gmss960603bn. Bought one of these units along with a 2.5 ton condenser from you a few yeaars ago. Very happy with this Goodman unit just exploring some energy savings options. Probably should have researched the energy savings three years ago. LOL.

THANKS PERRY
Hi. Do you have this unit in a down flow for the same price ? Thanks
Will this product function at 10,200 feet on natural gas?
I live at 9300 ft. and need a propane furnace. Do you have a LP high altitude kits for the GMSS960603BN?
Can the lp conversion be installed prior to shipping? Do you also supply a furnace riser/cold air return base and supply plenum (discharge).
We have an old Goodman 80% furnace that is about 20 + year old. Do we need a new thermostat?
Where is the filter locate and how is it accessed?
Goodman furnace, (your #HA10674). Does the air filter fit in the furnace or do we need a filter box?
Who and where is the manufacturer of this product?
