60k BTU 96% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet

Item: HA10688
Model: GMVC960603BN
Condition: New

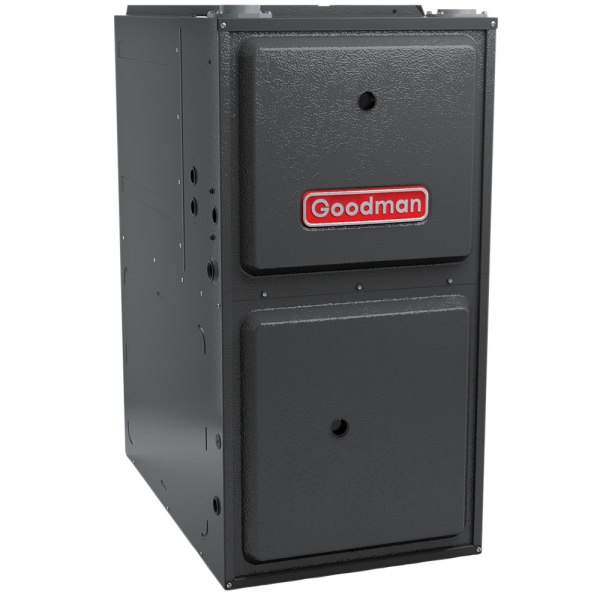

60k BTU 96% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet Zoom

Photo Gallery

The Goodman GMVC96 Multi-Position Two-Stage Variable-Speed 60k BTU 96% AFUE Low NOx Gas Furnace could be a great fit for your home. Not only does this furnace deliver terrific air comfort, but it is built to last with quality components and legitimate warranty protection. It features an aluminized-steel tubular heat exchanger, 110-volt silicon nitride igniter, variable-speed circulator motor, and Lifetime Limited Heat Exchanger Warranty.

Availability: In stock

$1,307.00 Click for price
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-800-360-1569

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

The Goodman GMVC96 Multi-Position Two-Stage Variable-Speed 60k BTU 96% AFUE Low NOx Gas Furnace could be a great fit for your home. Not only does this furnace deliver terrific air comfort, but it is built to last with quality components and legitimate warranty protection. It features an aluminized-steel tubular heat exchanger, 110-volt silicon nitride igniter, variable-speed circulator motor, and Lifetime Limited Heat Exchanger Warranty.
Goodman HA10688

Manufacturer Highlights

The Goodman® brand GMVC Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Aluminized-steel dual-diameter tubular heat exchanger
  • Two-stage gas valve operates with two-stage or single stage thermostats
  • ComfortNet™ Communications System compatible
  • Efficient and quiet variable-speed ECM circulator motor gently ramps up or down according to heating or cooling demand
  • 120V Silicon Nitride igniter designed for long igniter life
  • Furnace control board with self-diagnostic and provisions for electronic air cleaner and 120-volt or 24-volt humidifiers
  • Multiple continuous fan speed options for quiet air circulation
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Quiet two-speed induced draft blower
  • All models comply with California NOx emissions standards

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Designed for multi-position installation: Upflow, Horizontal left or right
  • Removable bottom for side- or bottom-return applications
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model GMVC960603BN
UPC 663051469242
AHRI Number 7368833
Gas Furnace Efficiency 96+%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,000 - 1,200 Sq Ft
Blower Motor Variable Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 55,001 - 60,000 BTU
Product Height 34.5
Product Length 28.75
Product Width 17.5
System Application Type Central Split Systems
Vent Connection 2 inches, 3 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight 117.0000
