Overview

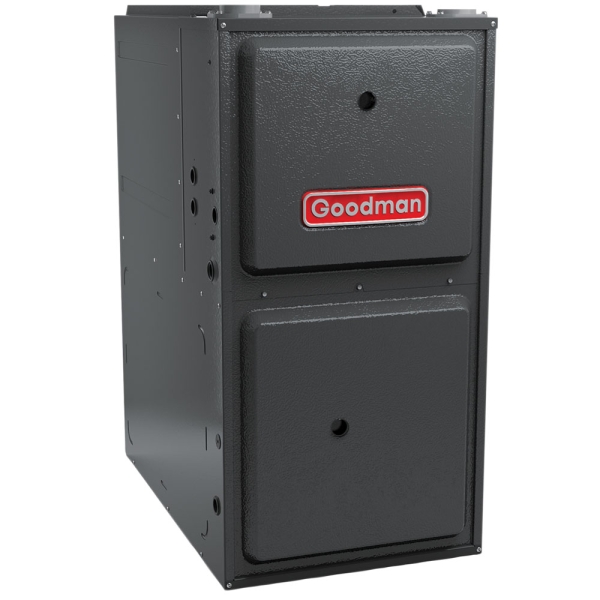

Quality, efficiency, comfort, and economy are hard to combine in a single home heating unit, but the Goodman GCVM96 Two-Stage Variable Speed 60k BTU 96% AFUE Modulating Low NOx Gas Furnace manages it well. It's 96% efficient, built with Goodman's legendary quality and durability, delivers luxuriant warmth at any temperature, and is backed by one of the best lifetime warranties in the business.
The HA10585 will impress with its quiet and efficient operation. Goodman brand GCVM units are dependable, easy to install, and come with a substantial warranty. The variable speed modulating system is coupled with a self-calibrating modulating gas valve. The result is a smooth, comfortable, quiet adjustment depending on your home comfort needs. A Goodman Gas Furnace will not disappoint when looking to maximize home climate control and comfort.
When it comes to heating and cooling, this unit represents value with quality. Standard features are impressive and extensive. Who doesn’t appreciate 96% AFUE? This fact by itself puts your mind at rest when you think of the price of fuel. Add to this the cabinet air leakage of only 2%, and you will smile when reviewing your monthly heating costs.
The fully insulated heat exchanger and blower only amplify your savings, all the while environmental health is protected with a high standard of emission control. This unit from Goodman links to two-stage or single-stage thermostats. It comes complete with multiple continuous fan speed options which offer quiet air circulation and a self diagnostic control board which continually operates to identify any potential problems. In addition, it has with it a seven-figure display.
This system can easily adapt an electronic air cleaner and/or humidifier as well as conveniently connect to gas and/or electric on the right or left. It comes complete with a direct vent (2-pipe) or non-direct vent (1-pipe), and a top vent or side vent. The unit weighs 139 lbs and stands 40 ¾ inches tall. The width is 21 inches and the depth is 28 ¾ inches.

Manufacturer Highlights
The Goodman® brand GCVM Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- ComfortNet™ Communicating System compatible
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Self-calibrating modulating gas valve auto-configure for each installation
- Durable Silicon Nitride igniter
- Quiet variable-speed induced draft blower
- Utilizes ComfortNet™ communicating, two-stage or single-stage thermostats
- Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto-Comfort and enhanced dehumidification modes available
- All models comply with California 40 ng/J Low NOx emissions standard
- AHRI Certified; ETL Listed
Cabinet Features
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy-to-install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) ? 2%
- Heavy-gauge steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
Model | GCVM960604CX |
---|---|
UPC | 663051472303 |
Gas Furnace Efficiency | 96+% |
Air Flow Direction | Downflow, Horizontal |
Configuration | Floor Mounted |
Avg Coverage Area | 1,000 - 1,200 Sq Ft |
Blower Motor | Variable Speed |
Cooling Compatibility (up to) | 4 Ton |
Electrical Phase | 1-Phase |
Exhaust Pipe | PVC |
Fuel Source | Natural Gas |
Gas Valve | Modulating |
Max Overcurrent Protection | 15 amps |
Primary Heating Capacity | 55,001 - 60,000 BTU |
Product Height (in) | 40.75 |
Product Length (in) | 28.75 |
Product Width (in) | 21 |
System Application Type | Central Split Systems |
Vent Connection | 3 inches |
Voltage | 120 |
Warranty | 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement |
Weight (lbs) | 135.0000 |
