60k BTU 97% AFUE Variable Speed Modulating Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet

Item: HA10697
Model: GMVM970603BN
Condition: New

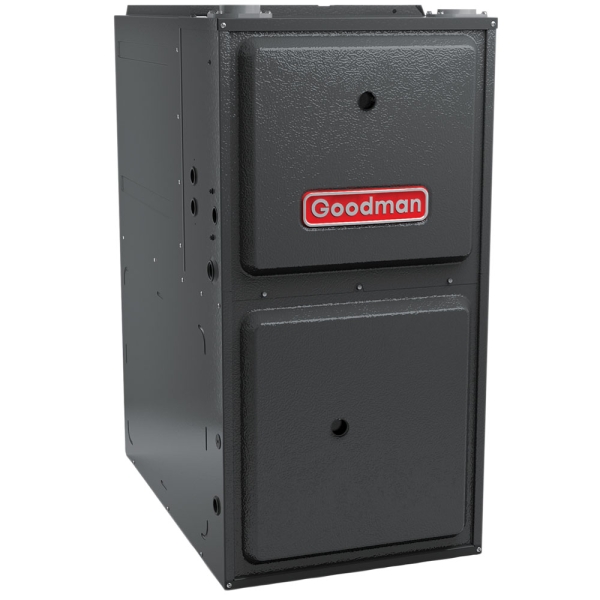

60k BTU 97% AFUE Variable Speed Modulating Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet Zoom

Photo Gallery

With HVAC, there is no such thing as too good, but the Goodman GMVM97 Series Modulating Gas Furnace certainly comes close to the mark. First, there's efficiency. This is a unit that routinely operates at up to 98% AFUE. Second, there's flexibility. You can choose upflow, horizontal left or right installation. Third, there's quality parts like a silicon nitride igniter and aluminized-steel exchanger. Finally, there are three industry-leading warranties. Too good or just right?

Availability: In stock

Was: $1,794.00 To see product price, add this item to your cart. You can always remove it later.
Ingram Financing


Ships Within 1-2 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

With HVAC, there is no such thing as too good, but the Goodman GMVM97 Series Modulating Gas Furnace certainly comes close to the mark. First, there's efficiency. This is a unit that routinely operates at up to 98% AFUE. Second, there's flexibility. You can choose upflow, horizontal left or right installation. Third, there's quality parts like a silicon nitride igniter and aluminized-steel exchanger. Finally, there are three industry-leading warranties. Too good or just right?

Looking for a compact furnace that can still deliver where it counts? The Goodman GMVM97 furnace is only 17.5 inches wide, yet has a 60,000 BTU rating. That’s large enough to provide heat for a house that’s 2200 to 3000 square feet!

High efficiency technology comes with the benefit of transforming more of the gas you burn into heat. By adding a second heat exchanger, this furnace runs the remaining heat through the secondary heat exchanger that would be otherwise vented outdoors, like mid efficiency furnaces do. A 97% efficiency rating means that for every dollar you spend, 97 cents will go into heating your home while the remaining 3 percent of the heat will be exhausted outdoors. This furnace also comes with a great heat exchanger warranty. Quiet operation and outstanding warranty are just two of the reasons you will sleep easy with the purchase of a Goodman product on IWAE.

The 60k BTU 97% AFUE Variable Speed Modulating Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet is easy to install, too. It is relatively small in size and weighs only 118 lbs. With this compact design, it can be easily retrofitted into many projects. This high efficiency furnace is so small it can be installed in a utility space where it’s out of sight and out of mind.

Need a heating solution but don’t have access to gas? No problem! Goodman makes converting your natural gas furnace into a propane furnace easy. All you need to do is purchase a conversion kit and apply it to your furnace. Choose a system that is not only easy to maintain and use, but will last your home for many years with a product from Goodman.

Goodman HA10697

Manufacturer Highlights

The Goodman® brand GMVM Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Aluminized-steel, dual-diameter tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • ComfortNetTM Communicating Systems compatible
  • Self-calibrating, modulating gas valve operates with two-stage or single-stage thermostats
  • Efficient and quiet variable-speed circulator motor
  • Furnace control board with self-diagnostics and provisions for electronic air cleaners and humidifiers
  • Multiple continuous fan speed options for quiet air circulation
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Auto-Comfort and enhanced dehumidification modes provide energy savings and additional comfort during the cooling months
  • Quiet variable-speed induced draft blower
  • All models comply with California NOx emissions standards Cabinet Features

Cabinet Features

  • Fully insulated heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger section
  • Designed for multi-position installation
  • Airtight solid bottom for side-return applications and easy-cut tabs for effortless removal in bottom air-inlet applications
  • Convenient left or right connection for gas and electric service
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model GMVM970603BN
UPC 663051469488
AHRI Number 7424264
Gas Furnace Efficiency 96+%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,000 - 1,200 Sq Ft
Blower Motor Variable Speed
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Modulating
Max Overcurrent Protection 15 amps
Primary Heating Capacity 55,001 - 60,000 BTU
Product Height 34.5
Product Length 28.75
Product Width 17.5
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight 118.0000
