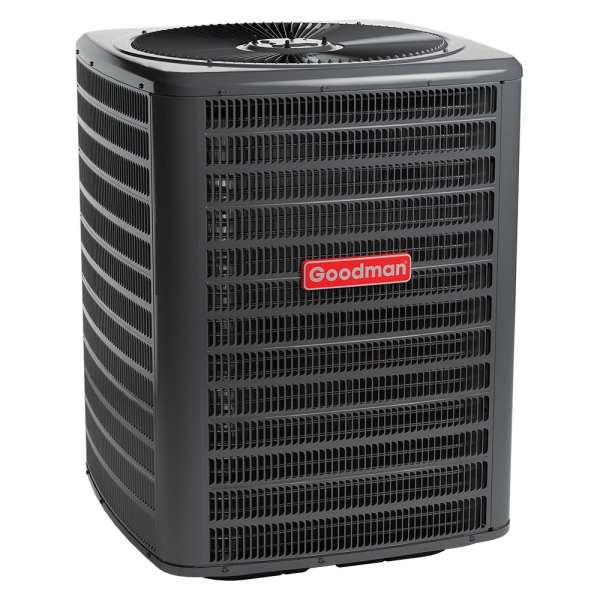

- 7.5 Ton 11.2 EER Goodman Central Air Conditioner Condenser - R22 Dry - 3 Phase
Overview

Manufacturer Highlights
The Goodman® brand GSC Series Air Conditioner offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- Energy-efficient compressor
- Quiet condenser fan system
- Factory-installed liquid-line filter drier
- Copper tube/aluminum fin coil
- For use with R-22 refrigerant; charged with inert gas for shipping
- R-22 piston kit included
- Brass liquid and suction service valves with sweat connections
- Contactor with lug connections
- Ground lug connection
- ETL Listed
Cabinet Features
- Louver design sound control top
- Steel louver coil guard
- Heavy-gauge galvanized-steel cabinet
- Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
- When properly anchored, meets the 2001 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
Model | GSC100903 |
---|---|
UPC | 663051530812 |
Avg Coverage Area | 3,000+ Sq Ft |
Compressor | Single Stage |
Cooling Capacity | 6+ Ton |
Electrical Phase | 3-Phase |
Line Set Connection Type | Sweat |
Liquid Line Size | 5/8 inch |
Max Overcurrent Protection | 60 amps |
Product Height (in) | 41.5 |
Product Length (in) | 35.5 |
Product Width (in) | 35.5 |
Refrigerant | R-22 |
Suction Line Size | 1 3/8 inch |
System Application Type | Central Split Systems |
Voltage | 240 |
Warranty | 5 Year Parts |
Weight (lbs) | 315.0000 |
Region Compatibility | Nationwide |
California Residents | see Prop 65 WARNING |
