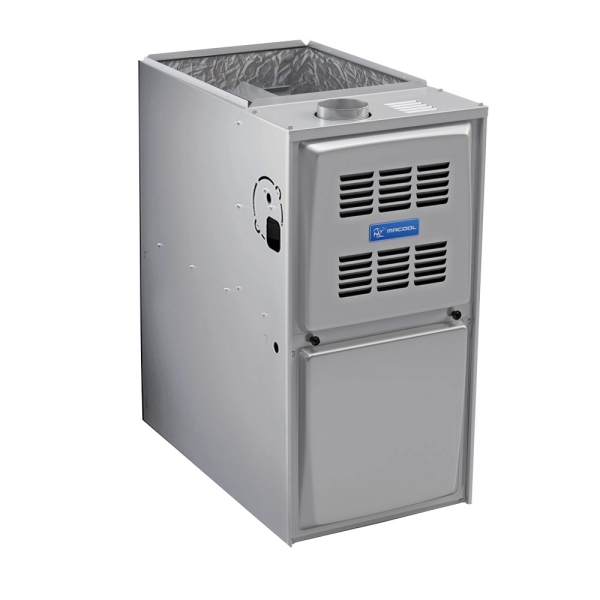

70k BTU 80% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal - 17.5" Cabinet
Shop All MRCOOL

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
If the 70k BTU 80% AFUE Variable Speed MrCool Gas Furnace was a ninja and cold temperatures were pirates, then it would kick the crap out of them with an awesome ninja sword and a bunch of spin kicks to the face! There would be karate chops and head butts and lots of jumping around.
Obviously, the MGM80S070A2A is not a ninja. And cold winter temperatures aren't pirates. That's ridiculous. What isn't ridiculous is the high powered heating this gas furnace can deliver no matter how low the outside temperature drops. It can pump out up to 70,000 BTUs at 80% efficiency and 800 cubic feet per minute. Plus, it's reasonably priced enough to fit most household budgets.
And this ninja is loaded down with weapons to fight its enemies! Well, I mean to say that the MGM80S070A2A furnace is packed with excellent parts and components. It features a rotatable draft inducer to provide flexible venting, a single-stage gas valve, an easily removable slide-out blower design, a Variable Speed PSC blower motor, and self diagnostics that can save the last 5 fault codes even when the power is interrupted.
Plus, the 70k BTU 80% AFUE Variable Speed MrCool Gas Furnace is super flexible when it comes to installation. It can be installed in upflow, horizontal, or downflow configurations. It has a removable floor base for bottom return air. It can even accommodate left or right utility connections. You could say it is as flexible as a ninja repeatedly punching a pirate in the face while balancing on the back of a couch.
Awesome.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MGM80SE070B3A |
|---|---|
| UPC | 810512033621 |
| AHRI Number | 204085898 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 28.5 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 114.000000 |
| Primary Heating Capacity | 65,001 - 70,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 4 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
