This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

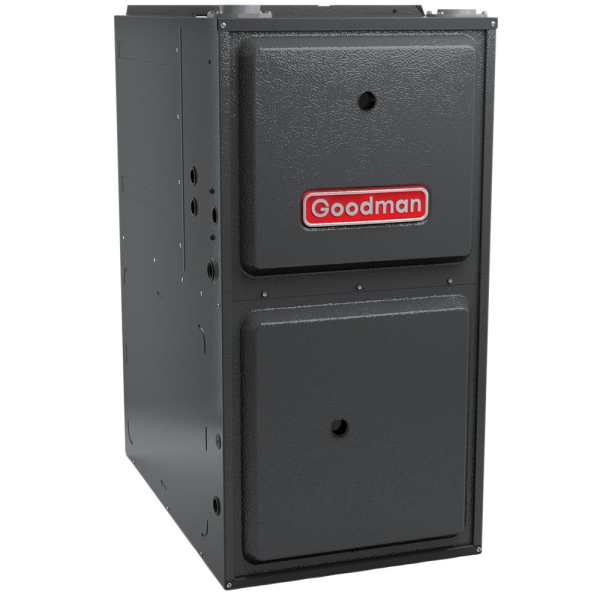

70k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow - 21" Cabinet

Item: HA10612
Model: GKS90704CX
Condition: New

70k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow - 21" Cabinet Zoom

Photo Gallery

Related Videos

Goodman is known for their air conditioners, but they do not shirk when it comes to high quality gas furnace units. The Goodman GKS9 Series High-Efficiency Gas Furnace is an excellent case in point. This superb heating system features both a primary and a secondary heat exchanger, single-stage gas valve, durable hot-surface igniter, induced draft blower, sophisticated control board, color-coded low voltage terminals, and all models comply with California Low NOx air quality standards.

Recommended Alternative:

  1. 80k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

    80k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

    Was: $974.00 See details...

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

Goodman is known for their air conditioners, but they do not shirk when it comes to high quality gas furnace units. The Goodman GKS9 Series High-Efficiency Gas Furnace is an excellent case in point. This superb heating system features both a primary and a secondary heat exchanger, single-stage gas valve, durable hot-surface igniter, induced draft blower, sophisticated control board, color-coded low voltage terminals, and all models comply with California Low NOx air quality standards.

When searching for a new furnace, we bet you have come across the name “Goodman” a time or two. But why should you consider a Goodman gas furnace? For many reasons!

Goodman has the customer in mind when creating each and every furnace at the factory, from designing the cabinet shell to placing the high performing and durable parts. At 92% efficiency, you will rest assured that 92 cents spent on every $1 you spend for your gas bill will go directly to maintaining your home’s comfort. And not to worry. This high performing furnace will not make you compromise in other areas of your comfort. It is high powered yet quiet as a mouse when running. Even with the variable speed ECM blower and multiple fan options. Want additional comfort? You can attach a humidifier to this furnace and quickly reduce the moisture level in your home’s air.

The 70k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow - 21" Cabinet runs off of natural gas meaning you are being environmentally savvy when choosing a clean burning fuel. As an added plus, burning natural gas is better for the environment compared to coal or oil. If you are replacing an old furnace, we bet that your new furnace will pollute less and boost your comfort level compared to your past unit. Just another reason why you should consider upgrading to a Goodman gas furnace!

Goodman HA10612

Manufacturer Highlights

The Goodman® brand GKS Series Gas Furnaces offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Single-stage combination redundant gas valve
  • Hot surface igniter and patented adaptive learning control for long igniter life
  • Quiet, four-speed direct-drive circulator blower motor
  • Furnace control board with self-diagnostics and low-voltage terminal block Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Quiet, single-speed induced draft blower
  • All models comply with California NOx emissions standards

Cabinet Features

  • Foil-faced insulation lines the heat exchanger
  • Designed for upflow installation; can be converted to horizontal left or right with a pressure switch kit (sold separately)
  • Easy-to-install top venting is standard
  • Airtight solid bottom for side return applications and easy-cut tabs for effortless removal in bottom air inlet applications
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model GKS90704CX
UPC 663051484481
Gas Furnace Efficiency 92-94%
Air Flow Direction Upflow
Configuration Floor Mounted
Avg Coverage Area 1,250 - 1,500 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 4 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 65,001 - 70,000 BTU
Product Height 40
Product Length 28.75
Product Width 21
System Application Type Central Split Systems
Vent Connection 3 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger
Weight 153.0000
