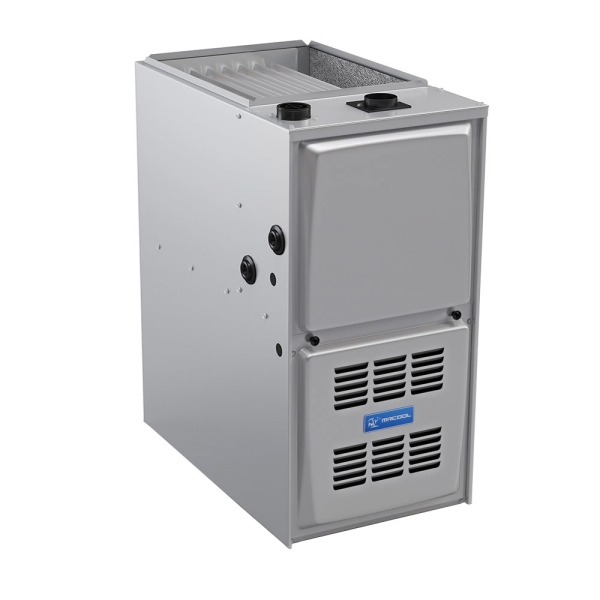

70k BTU 95% AFUE MrCool Signature Gas Furnace - Downflow - 17.5" Cabinet - Low NOx
Shop All MRCOOL

This product has been discontinued.
Recommended Alternative:
Description / Documents
The 70k BTU 95% AFUE Variable Speed MrCool Gas Furnace - Downflow - 17.5 inch Cabinet is built to last you and your family for years, providing consistent and reliable heating for cold winter months. The furnace includes a top-notch heat exchanger constructed with aluminized steel, which is extremely heat resistant. The heat exchanger won't change shape or even bend in high temperatures, ensuring that your furnace keeps working smoothly. Plus, it's weld-free, which means there's no opportunity for a weld to break and result in costly repairs.
This furnace is Variable Speed, which is the more cost-effective version of premium variable speed furnaces. The Variable Speed function adjusts air flow to maximize efficiency, as well as keeping your air cleaner and your temperature more even.
Running on natural gas, this furnace is ideal for conserving energy consumption, which is not only good for the planet but also reduces your monthly energy bill. Natural gas also is more reliable than electric furnaces and healthier for breathing than oil or wood burning furnaces. It's the optimal choice for the modern homeowner. If you want to convert it to run on propane, simply use the optional LP Kit. Additionally, there is a High Altitude Kit available for those who live in mountainous areas with high altitudes.
Lastly, the compact and sleek design makes this furnace perfect for residential spaces, and the standardized width makes it easy to find a great coil fit. The 70k BTU 95% AFUE Variable Speed MrCool Gas Furnace packs a lot of heating potential into one neat and energy-efficient furnace!
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MGD95SE070B4XA |
|---|---|
| UPC | 810512032600 |
| AHRI Number | 204085893 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 95% |
| Product Length (in) | 28.5 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Downflow |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 4 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 129.000000 |
| Primary Heating Capacity | 65,001 - 70,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
