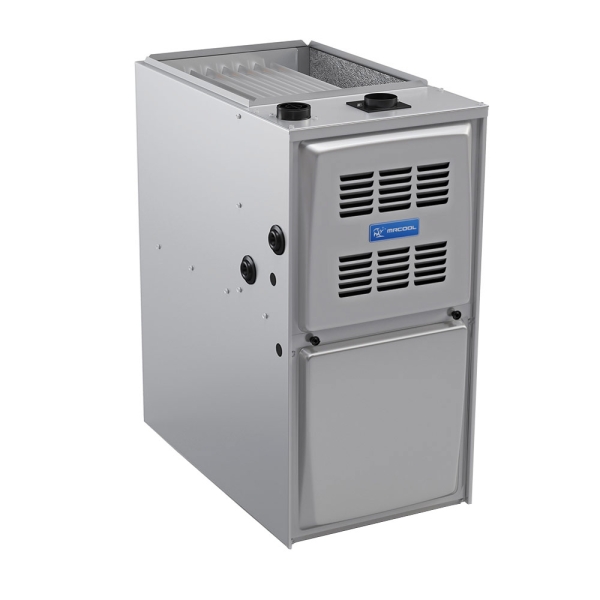

70k BTU 95% AFUE MrCool Signature Gas Furnace - Upflow/Horizontal - 17.5" Cabinet - Low NOx
Shop All MRCOOL

This product has been discontinued.
Recommended Alternative:
Description / Documents
The 70k BTU 95% AFUE Variable Speed MrCool Gas Furnace - Multiposition - 17.5 inch Cabinet is the affordable, safe, and efficient heating solution for residential homes. It has been strategically engineered so that it's customizable to fit into your interior and lifestyle right away. For example, it was designed to be completely maintained within its compact and sleek form, which means it will fit into even snug spaces as well as easily fit most coils.
In addition, the Variable Speed function allows the furnace to automatically adjust air flow to enhance your heating experience and conserve energy. While the Variable Speed function effectively and consistently heats your rooms, it doesn't have the hefty upfront cost of a variable speed furnace, making it the perfect value for budget-conscious homeowners.
Carefully chosen materials ensure that your furnace keeps working like new for years to come. Aluminized steel was used for the heat exchanger so that this crucial part of your furnace won't bend or change shape at all under the pressure of high heat. Plus, it has no welding, which means zero opportunities for a weld to break and cause damage.
Finally, power outages can sometimes cause trouble for furnaces later on, because they may erase the self-diagnostic fault codes from the system, leaving you in the dark as to whether your furnace needs servicing! The Variable Speed MrCool Gas Furnace has built-in power outage protection, automatically saving the last five fault codes even when there's no power. This means you'll always be ahead of the condition of your furnace—and it will last you for years.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MGM95SE070B3XA |
|---|---|
| UPC | 810512031320 |
| AHRI Number | 204085888 |
| Product Height (in) | 33 |
| Gas Furnace Efficiency | 95% |
| Product Length (in) | 28.5 |
| Configuration | Floor Mounted |
| Product Width (in) | 17.5 |
| Air Flow Direction | Horizontal, Upflow |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Blower Motor | High Efficiency |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 128.000000 |
| Primary Heating Capacity | 65,001 - 70,000 BTU |
| Series | Signature |
| System Application Type | Central Split Systems |
| Vent Connection | 2 inches, 3 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger |
