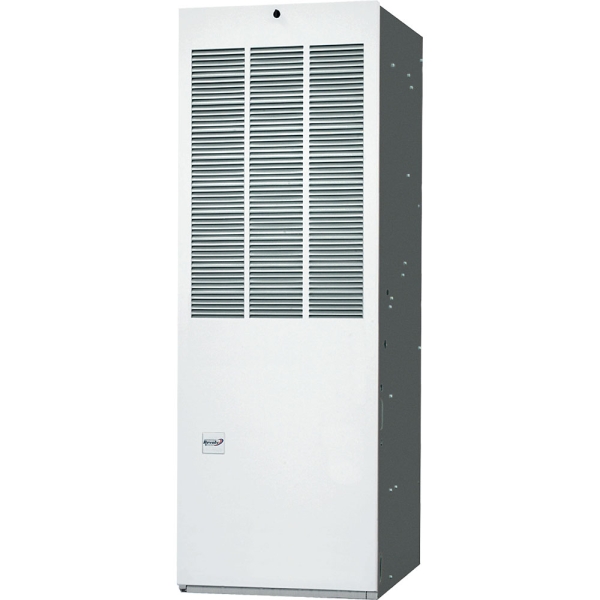

72k BTU 95% AFUE Multi Speed Revolv Mobile Home Gas Furnace - Downflow

Item
HA20766
Model
MG2R-072FA
Condition
New

In stock
Ships Within 2-3 Business Days

Get $100 Cash Back on Your Qualifying Purchase

  1. Spend over $1000 on heating and air equipment.
  2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
  3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
  4. Get a check mailed to you for $100.

Limited Time Offer. Act Now!

Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


Get everything right and save time

Contact an expert now.

Affordable HVAC Installation


What's included

Are you fed up with the inconsistent temperature fluctuations and frosty winter nights resulting from the outdated HVAC system in your mobile home? It's time to level up to dependable climate control with the 72k BTU 95% AFUE Multi Speed Revolv Mobile Home Gas Furnace - Downflow. With both ETL listing and AHRI certification, an outstanding 95% gas furnace efficiency rating, and the proficiency to handle spaces ranging from 1250 to 1500 square feet, this Revolv Furnace introduces reliable climate control that spreads through every corner of your mobile home, establishing a comfortable ambiance in each and every nook. This consistency empowers you to unwind in any space of your home without the aggravation of hunting for a cozy corner.

The 72k BTU 95% AFUE Multi Speed Revolv Mobile Home Gas Furnace - Downflow takes advantage of a comprehensive array of features aimed at providing both accessibility to and the protection of all internal hardware. Designed to accommodate the specific layout of your home, this 72k BTU Revolv can be installed as a freestanding unit in a utility room or tucked away in an alcove or closet. A removable open pawl latch grants unobstructed access to the inner workings of this Revolv Furnace while closing securely to thwart external contaminants from getting into the system. The appliance-quality door guards against rust and other forms of corrosion that is then coated with a baked enamel treatment that means easy cleaning and improved resilience against wear and tear over time. The fully insulated furnace cabinet in this Multi Speed Revolv serves to reduce both heat loss and operational sounds, bringing comfort into your mobile home without the intrusive noises often associated with older HVAC systems.

The true testament to the purposeful planning that went into the 72k BTU 95% AFUE Multi Speed Revolv Mobile Home Gas Furnace - Downflow is showcased in the performance. Flexibility was a central focus during the development of this Revolv Furnace, using an ECM blower that has a range of cooling and heating airflows along with a sealed combustion system approved for direct vent furnace placement falling within category IV for venting system that can be vented either vertically or horizontally using a two-pipe system. Diagnostic lights offer easy troubleshooting without the need to count flashes with fault codes that are indicated through two lights in sequence. A 2 Stage gas valve and 2 Stage inducer bring precise thermostat control and enhanced efficiency on the first heat stage while maintaining a hushed environment in your home. With an abundance of benefits at your fingertips, what more could you be holding out for? Upgrade to this Revolv Furnace and transform your home into a personal haven.

More Information
Model MG2R-072FA
UPC 663132389209
AHRI Number 204600303
Product Height (in) 56
Gas Furnace Efficiency 95%
Product Length (in) 24.5
Product Width (in) 20
Air Flow Direction Downflow
Avg Coverage Area 1,250 - 1,500 Sq Ft
Blower Motor High Efficiency
Cooling Compatibility (up to) 2.5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 20 amps
Weight (lbs) 150.000000
Primary Heating Capacity 70,001 - 75,000 BTU
System Application Type Mobile Home Systems
Voltage 120
Warranty 2 Year Parts, 10 Year Heat Exchanger
California Residents see Prop 65 WARNING
