77k BTU 80% AFUE Multi Speed Revolv Mobile Home Gas Furnace - Downflow
Shop All REVOLV
Item:
HA13180
Model:
RG1D77N3
Condition:
New
This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Recommended Alternative:
Out of stock
Loading...

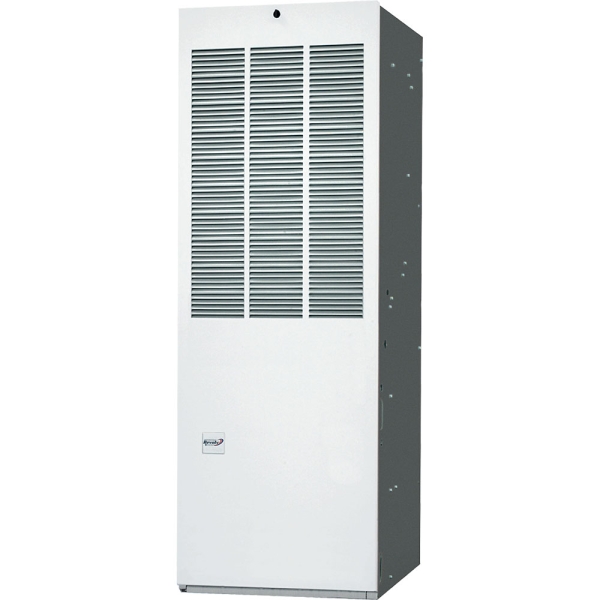

Ideally stored within an enclosed closet or utility room, the multi speed Revolv downflow gas furnace is made for mobile homes. The unit's vents direct gases outside and bring fresh air back into the unit for combustion. It is low maintenance with seed bearings on motors and has reliable controls and burners. This unit is high quality to keep your home comfortable for years.
Description / Documents
Ideally stored within an enclosed closet or utility room, the multi speed Revolv downflow gas furnace is made for mobile homes. The unit’s vents direct gases outside and bring fresh air back into the unit for combustion. It is low maintenance with seed bearings on motors and has reliable controls and burners. This unit is high quality to keep your home comfortable for years.
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | RG1D77N3 |
|---|---|
| UPC | 663132332533 |
| AHRI Number | 8862043 |
| Product Height (in) | 56 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 23.75 |
| Product Width (in) | 19.88 |
| Air Flow Direction | Downflow |
| Avg Coverage Area | 1,500 - 1,800 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 3 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 149.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Mobile Home Systems |
| Voltage | 120 |
| Warranty | 2 Year Parts, 10 Year Heat Exchanger |
