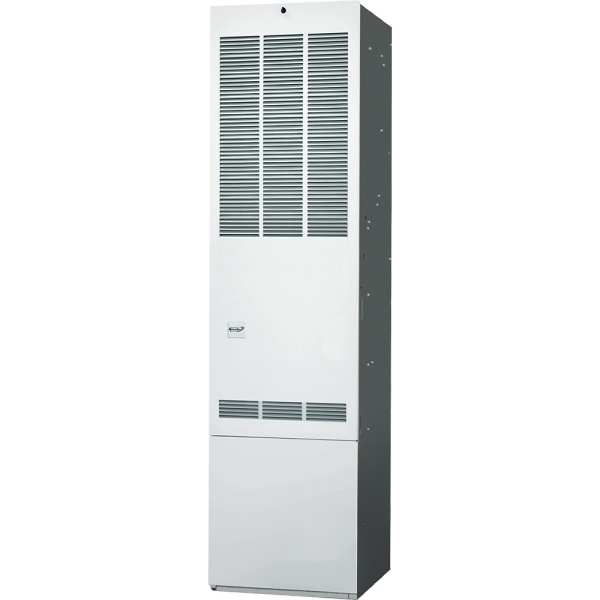

77k BTU 80% AFUE Multi Speed Revolv Mobile Home Gas Furnace with Coil Cabinet - Downflow
Shop All REVOLV
Item:
HA13188
Model:
RG1D77C4
Condition:
New
This product has been discontinued.
The manufacturer has discontinued this product permanently. Please see the alternative product below.
Recommended Alternative:
Out of stock
Loading...
Equipped with a coil cabinet, this downflow gas furnace from Revolv is designed specially for mobile homes. The perk of a down flow gas furnace is the ability to fit it into small spaces in nearly any size of mobile home. It comes with a modern hot surface ignition for easy use and is simple to maintain.
Description / Documents
Equipped with a coil cabinet, this downflow gas furnace from Revolv is designed specially for mobile homes. The perk of a down flow gas furnace is the ability to fit it into small spaces in nearly any size of mobile home. It comes with a modern hot surface ignition for easy use and is simple to maintain.
Additional Documents
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | RG1D77C4 |
|---|---|
| UPC | 663132345816 |
| AHRI Number | 8862058 |
| Product Height (in) | 76 |
| Gas Furnace Efficiency | 80% |
| Product Length (in) | 23.75 |
| Product Width (in) | 19.88 |
| Air Flow Direction | Downflow |
| Avg Coverage Area | 2,000 - 2,400 Sq Ft |
| Blower Motor | Multi Speed |
| Cooling Compatibility (up to) | 4 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | Metal |
| Fuel Source | Natural Gas |
| Gas Valve | Single Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 169.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Mobile Home Systems |
| Voltage | 120 |
| Warranty | 2 Year Parts, 10 Year Heat Exchanger |
