This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

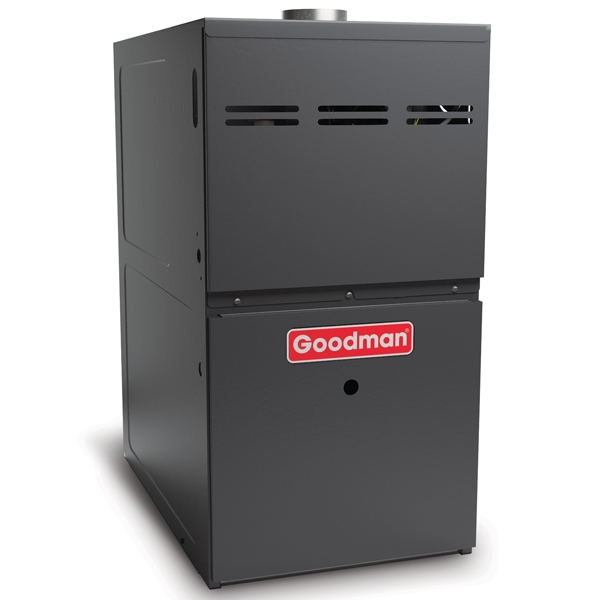

80k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

Item: HA10642
Model: GMH80805CN
Condition: New

80k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

You need a good gas furnace. Why not the Goodman GMH8 80% AFUE 80k BTU 2 Stage Multi-Speed Gas Furnace? This is an upflow/horizontal unit with a dual-diameter tubular heat exchanger, 110-volt silicon nitride igniter, four-speed circulator motor, and an electronic control board with self-diagnostics. It even features a Lifetime Heat Exchanger Limited Warranty, a 10-Year Unit Replacement Limited Warranty, and a 10-Year Parts Limited Warranty.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

You need a good gas furnace. Why not the Goodman GMH8 80% AFUE 80k BTU 2 Stage Multi-Speed Gas Furnace? This is an upflow/horizontal unit with a dual-diameter tubular heat exchanger, 110-volt silicon nitride igniter, four-speed circulator motor, and an electronic control board with self-diagnostics. It even features a Lifetime Heat Exchanger Limited Warranty, a 10-Year Unit Replacement Limited Warranty, and a 10-Year Parts Limited Warranty.

Choose to have more control and options with the GMH80 80k BTU 80% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet! This furnace is designed to fit nearly any space and can operate in an upflow or horizontal motion, depending on how it is placed within your home's HVAC section.

This mid-efficiency unit is made to last with a steel exterior that will protect your furnace inside and out for many years. The gas burners operate with natural gas or propane. If you wish to run this furnace with propane, simply add a conversion kit to your order.

If you are tired of noisy furnaces, this product is a great option! Goodman understood customer comfort wishes and made a furnace that operates so quietly you'll barely know when it's running. Plus, the furnace easily integrates with other compatible Goodman HVAC units without any trouble. If you are using the latest in thermostat technology, you won't have to compromise when choosing this furnace for your home. This gas furnace is compatible with the ComfortNet Communications System, a smart thermostat that brings you up to date with today's HVAC technology.

Goodman HA10642

Manufacturer Highlights

The Goodman® brand GMH Gas Furnaces offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Two-stage gas valve convertible technology allows installer to activate the two-stage valve with the flip of a dipswitch
  • 110V Silicon Nitride igniter designed for long igniter life
  • Furnace control board with self-diagnostics, colorcoded low-voltage terminals, and provisions for electronic air cleaner and 24-volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self-adjusting feature automatically adjusts to high- or low-stage operation based on outside temperature without an outdoor temperature sensor
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • All models comply with California NOx emissions standards

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger
  • Designed for multi-position installation
  • Easy-to-install top venting is standard; alternate flue/vent located on the right
  • Airtight solid bottom for side-return applications and easy-cut tabs for effortless removal in bottom air inlet applications
  • Convenient left or right connection for gas and electric service
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMH80805CN
UPC 663051487765
AHRI Number 201702267
Gas Furnace Efficiency 80%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,250 - 1,500 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 75,001 - 80,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 21
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 114.0000
California Residents see Prop 65 WARNING
