This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

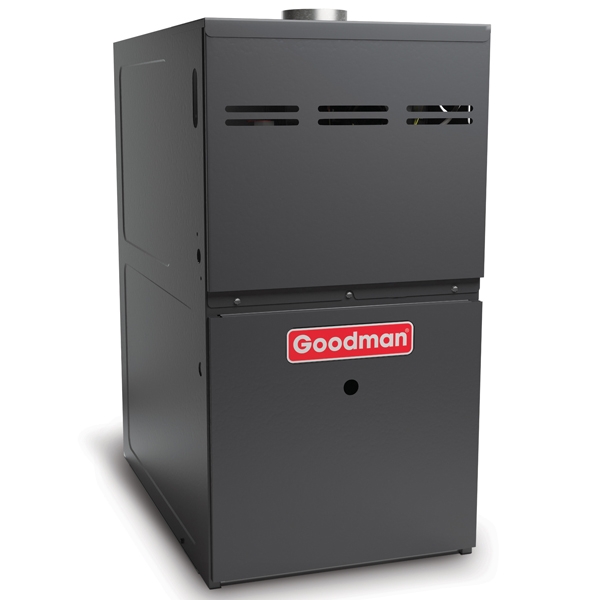

80k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet

Item: HA10656
Model: GMS80804BN
Condition: New

80k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet Zoom

Photo Gallery

A gas furnace is the #1 heating system to get you comfortably through a long, cold winter. When it comes to finding a quality gas furnace, you won't go wrong with the Goodman GMS8 Multi-Speed 80k BTU 80% AFUE Gas Furnace. It features a durable hot surface mini-igniter, a superb dual-diameter tubular heat exchanger made of aluminized-steel, a sophisticated electronic control board with self-diagnostic capability, and an energy saving four-speed blower motor that runs quietly.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

A gas furnace is the #1 heating system to get you comfortably through a long, cold winter. When it comes to finding a quality gas furnace, you won't go wrong with the Goodman GMS8 Multi-Speed 80k BTU 80% AFUE Gas Furnace. It features a durable hot surface mini-igniter, a superb dual-diameter tubular heat exchanger made of aluminized-steel, a sophisticated electronic control board with self-diagnostic capability, and an energy saving four-speed blower motor that runs quietly.

Looking to replace those electric baseboard heaters that don’t offer any type of air circulation through your home? Add the Goodman GMS80 furnace to your home and increase improved indoor air quality and comfort. To further improve your home lifestyle, you can combine this system with a humidifier for use in the winter, or an air conditioner for use in the summer, giving you comfort all year around.

Bringing you great value, Goodman provides you with a reliable heating solution at a price that should fit any home budget. This furnace also offers you flexible installation options, since it can be installed in multiple positions. If you are in the market for a propane furnace, this furnace can even be used with propane via use of an inexpensive and simple conversion kit.

The 80k BTU 80% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - comes in a cabinet width of 17.5 inches, making it quite small for a 80,000 BTU rating. With an efficiency rating of 80%, this heating system comes out ahead of previous generation technology. Given the compact footprint, you should be able to install this furnace in area-limited spaces that need real heating capacity.The circulating fan is of the multi speed variety which can be adjusted to fit your needs and a maximum CFM of 1200. If this particular GMS80 furnace is too large or too small for your next project, we carry a large variety of Goodman furnaces that should be the right fit for your home project.

Goodman HA10656

Manufacturer Highlights

The Goodman® brand GMS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Single-stage combination redundant gas valve
  • Norton hot surface mini-igniter
  • Quiet multi-speed direct-drive circulator blower motor
  • Furnace control board with self-diagnostics and lowvoltage terminal block
  • Quiet single-speed, induced-draft blower

Cabinet Features

  • Foil-faced insulation lines the heat exchanger compartment
  • Factory sealed to achieve 2% or less leakage rate at 1.0" water gauge external duct static pressure
  • Designed for multi-position installation: upflow, horizontal left or right
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMS80804BN
UPC 663051517820
AHRI Number 201702271
Gas Furnace Efficiency 80%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,250 - 1,500 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 4 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 75,001 - 80,000 BTU
Product Height (in) 33.375
Product Length (in) 28
Product Width (in) 17.5
System Application Type Central Split Systems
Vent Connection 6 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger
Weight (lbs) 153.0000
