This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

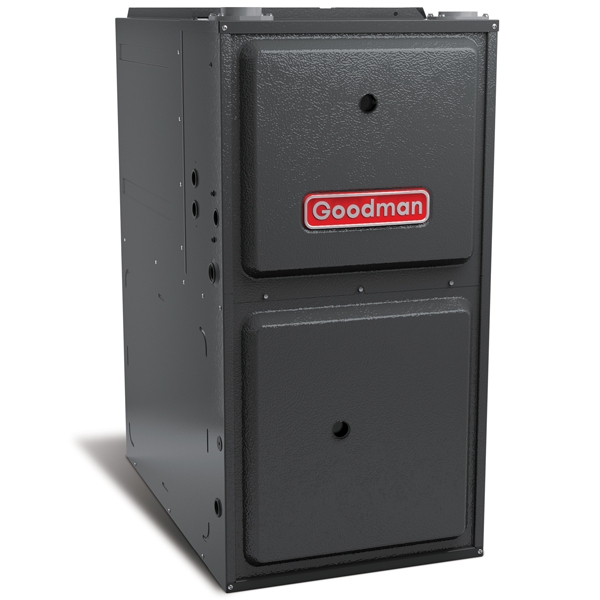

80k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

Item: HA10669
Model: GMSS920805CN
Condition: New

80k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

The Goodman GMSS92 80k BTU 92% AFUE 2000CFM Gas Furnace with 21 inch cabinet is designed for upflow/horizontal applications. It meets all California Low NOx emission standards, and the cabinet achieves a less than 2% air leakage rate. It also features a single-stage gas valve, durable silicon nitride igniter, self-diagnostic control board with constant memory fault code history output to an LED, and color-coded low-voltage terminals with provisions for an air cleaner and humidifier.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

The Goodman GMSS92 80k BTU 92% AFUE 2000CFM Gas Furnace with 21 inch cabinet is designed for upflow/horizontal applications. It meets all California Low NOx emission standards, and the cabinet achieves a less than 2% air leakage rate. It also features a single-stage gas valve, durable silicon nitride igniter, self-diagnostic control board with constant memory fault code history output to an LED, and color-coded low-voltage terminals with provisions for an air cleaner and humidifier.

Goodman has been building exceptional HVAC equipment for more than three decades. If you are in the market for a replacement furnace, you may want to consider a high efficiency model! A product like the GMSS92 high efficiency furnace can reduce your monthly bills up to 17%. That kind of performance provides you great value long term value that comes with an affordable price tag reasonable enough to fit most household budgets.

If you are looking to save even more off the sticker price of a new high performance furnace, see if you qualify for energy rebates or incentives in your local area. Many municipal governments and utility companies run regular promotions to encourage high efficiency equipment purchases. To qualify, most programs typically require the applicant to be replacing lower efficiency equipment. Whether there is a rebate program or not, it is hard to find a quality high efficiency furnace at this price with these features!

The 80k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet is built with quality components that are warrantied for years. Winter conditions can by drastically cold and dry, causing irritation to your skin and sinuses. Add a humidifier to your furnace and make your home an oasis. Humidifiers are installed to work only during heating mode and should be the only time that you need them.

Goodman HA10669

Manufacturer Highlights

The Goodman® brand GMSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Multi-speed blower motor
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board
  • Color-coded low-voltage terminals
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Foil-faced insulated heat exchanger cabinet
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMSS920805CN
UPC 663051496460
AHRI Number 7367476
Gas Furnace Efficiency 92-94%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,250 - 1,500 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 75,001 - 80,000 BTU
Product Height (in) 34.5
Product Length (in) 28.75
Product Width (in) 21
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger
Weight (lbs) 138.0000
