This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

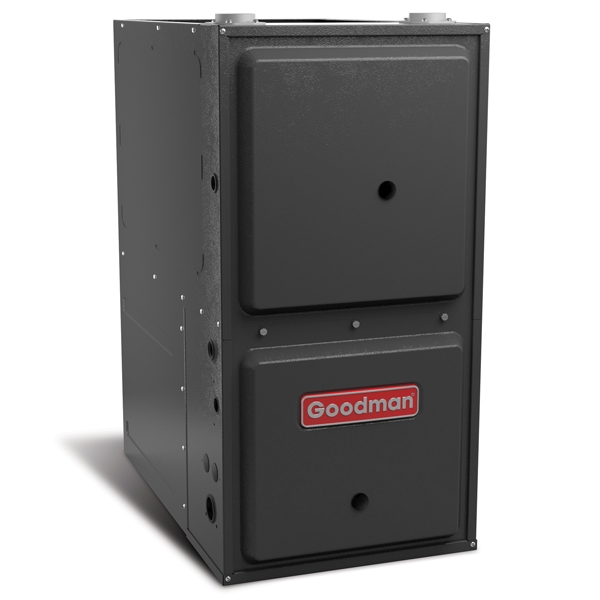

80k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet

Item: HA10577
Model: GCSS960804CN
Condition: New

80k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

Do you need a gas furnace built for downflow/multi-position applications? Then you need the Goodman GCSS96 Single Stage 1600CFM 80k BTU 96% AFUE Gas Furnace. This high quality HVAC system comes with a 21 inch cabinet that has an air leakage rate below 2%, a stainless steel secondary heat exchanger, an aluminized-steel primary tubular heat exchanger, single-speed induced draft blower, silicon nitride igniter, and superior warranty protection.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Do you need a gas furnace built for downflow/multi-position applications? Then you need the Goodman GCSS96 Single Stage 1600CFM 80k BTU 96% AFUE Gas Furnace. This high quality HVAC system comes with a 21 inch cabinet that has an air leakage rate below 2%, a stainless steel secondary heat exchanger, an aluminized-steel primary tubular heat exchanger, single-speed induced draft blower, silicon nitride igniter, and superior warranty protection.

Are you looking for a budget-conscious, durable furnace to heat your home for the winter? You can control your indoor climate in comfort with this single-stage, 80,000 BTU Goodman gas furnace! Highly efficient with an AFUE rating of 96%, you will save on your monthly bills thanks to this energy-efficient unit.

This durable furnace has been designed to meet your needs for long-term functionality. Engineered with ultra-strong aluminized-steel and stainless steel heat exchangers, the GCSS96 works powerfully and efficiently to heat your home. Are you tired of your outdated furnace interrupting your peaceful home with noisy starts and stops? With this model's exceptionally quiet multi-speed motor, you'll be able to enjoy quiet comfort as your furnace heats your home.

The downflow/horizontal flow application makes this furnace ideal for small spaces - functionality without sacrificing aesthetics! And with a heavy-gauge steel, thermally insulated cabinet, noises and air leakage are significantly minimized, meaning quiet function and better efficiency in your home!

Designed with a silicon nitride igniter that removes the need for a constantly burning pilot light, this furnace is a low-maintenance, economical choice. And should your GCSS96 need a repair, the self-diagnostic control board stores the most recent codes, ensuring that HVAC troubleshooting and repairs are simple and straightforward.

Easy maintenance and money-saving features contribute to a high-efficiency product that provides maximum comfort inside your home! The Goodman GCSS96 is budget-friendly, durable, and hard-working, making this furnace an all-around winner for your home heating needs!

Goodman HA10577

Manufacturer Highlights

The Goodman® brand GCSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board with constant memory fault code history output to a LED
  • Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Fully insulated heat exchanger and blower section
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GCSS960804CN
UPC 663051469365
AHRI Number 7365104
Gas Furnace Efficiency 96+%
Air Flow Direction Downflow, Horizontal
Configuration Floor Mounted
Avg Coverage Area 1,250 - 1,500 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 4 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 75,001 - 80,000 BTU
Product Height (in) 34.5
Product Length (in) 28.75
Product Width (in) 21
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 139.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
Conversion to propane?
Can this unit go in a modular home in a closet directly against the wall in the back? We have clearance on the sides and the front. There will only be about 1 in from the vented door of the closet.
