This product has been discontinued.
Overview

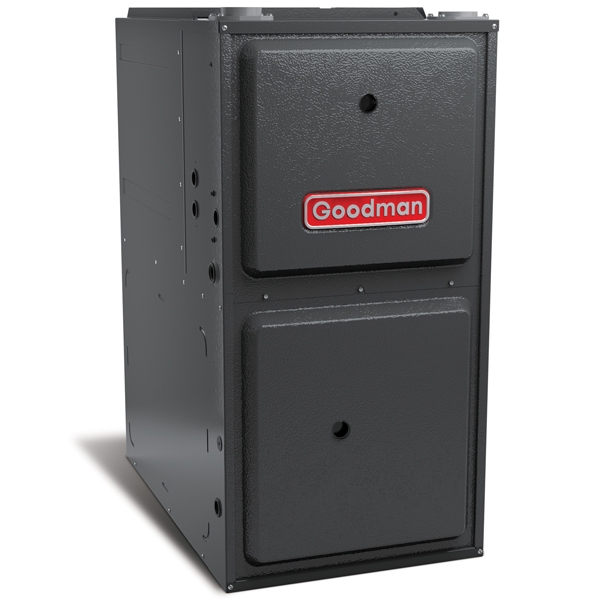

There's no match for superior efficiency, dependable components, and overall HVAC performance. Which brings us to the Goodman GMSS96 Single-Stage 1200CFM 80k BTU 96% AFUE Gas Furnace with a 17.5 inch cabinet rated for an air leakage rate below 2%. This superb gas furnace features a primary, heavy duty aluminized-steel tubular heat exchanger plus a secondary heat exchanger made of stainless steel. It even has great warranty support and is economically priced.
You should never be uncomfortable in your own home. In addition to the discomfort, extreme cold temperatures can damage the interior and the structure. Heat the air to your ideal comfort level this winter season by adding a GMSS96 high efficiency furnace to your HVAC system. You will get the comfort you want while you reduce your gas bill, and prevent costly repairs at the same time.
Basically, if you want an affordable furnace that is built to last and is highly efficient with an outstanding warranty, Goodman has you covered! Loaded with plenty of features, the GMSS96 has everything you need. Plus, It can be left as a stand alone unit when used with natural gas. The multi-speed blower motor will provide you with consistent air flow throughout your space. This is also beneficial for removing dust and allergens from the air. Add a humidifier to your order and get the full comfort you deserve this winter season by effectively controlling interior moisture.
The 80k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 17.5" Cabinet is a small and powerful system that has an efficiency rating of 96%. If this furnace doesn't fit your needs, look through our large selection of systems that vary in size and capacity. Dedicated to providing you with reliable and affordable furnaces, Goodman has been manufacturing great HVAC solutions for over 30 years. Goodman furnaces serve both residential and small commercial projects so you can be sure to find one that fits your home.

Manufacturer Highlights
The Goodman® brand GMSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Single-stage gas valve
- Durable Silicon Nitride igniter
- Multi-speed blower motor
- Quiet single-speed induced draft blower
- Self-diagnostic control board
- Color-coded low-voltage terminals
- All models comply with California Low Nox emissions standards
Cabinet Features
- Designed for multi-position installation
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy-to-install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) - 2%
- Heavy-gauge steel cabinet with durable finish
- Foil-faced insulated heat exchanger cabinet
- Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
Warranty Terms
For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents. Online warranty registration must be completed within 60 days of installation. Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.
Installation of any product must comply with all applicable codes and regulations. The service of a certified and trained electrical technician may be required for the installation process.
Specifications
Model | GMSS960803BN |
---|---|
UPC | 663051469174 |
AHRI Number | 7365097 |
Gas Furnace Efficiency | 96+% |
Air Flow Direction | Horizontal, Upflow |
Configuration | Floor Mounted |
Avg Coverage Area | 1,250 - 1,500 Sq Ft |
Blower Motor | Multi Speed |
Cooling Compatibility (up to) | 3 Ton |
Electrical Phase | 1-Phase |
Exhaust Pipe | PVC |
Fuel Source | Natural Gas |
Gas Valve | Single Stage |
Max Overcurrent Protection | 15 amps |
Primary Heating Capacity | 75,001 - 80,000 BTU |
Product Height (in) | 34.5 |
Product Length (in) | 28.875 |
Product Width (in) | 17.5 |
System Application Type | Central Split Systems |
Vent Connection | 3 inches, 4 inches |
Voltage | 120 |
Warranty | 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement |
Weight (lbs) | 116.0000 |
California Residents | see Prop 65 WARNING |
