This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

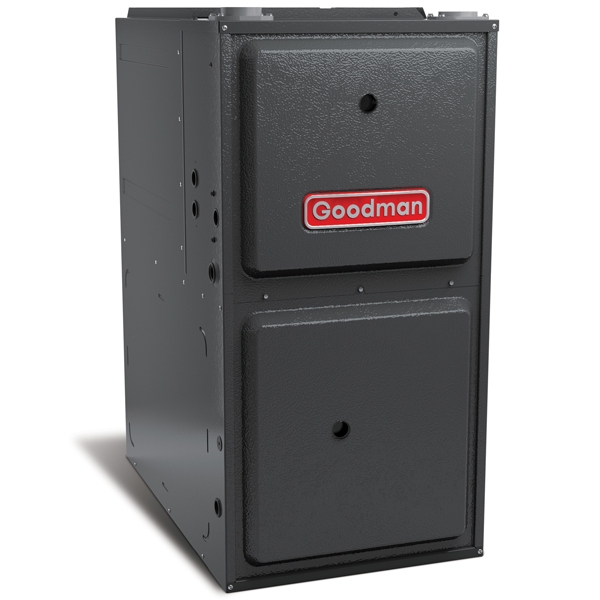

80k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet

Item: HA10676
Model: GMSS960804CN
Condition: New

80k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet Zoom

Photo Gallery

Despite advances in renewable technology, a good gas furnace is still the most reliable and cost-effective way to heat many homes. If you're in the market for a new furnace, consider the Goodman GMSS96 Single-Stage 1600CFM 80k BTU 96% AFUE Gas Furnace. This high quality HVAC unit comes standard with an aluminized-steel tubular heat exchanger, color-coded low voltage terminals, single-stage gas valve, silicon nitride igniter, single-speed induced draft blower, and superior warranty protection.

Recommended Alternative:

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Despite advances in renewable technology, a good gas furnace is still the most reliable and cost-effective way to heat many homes. If you're in the market for a new furnace, consider the Goodman GMSS96 Single-Stage 1600CFM 80k BTU 96% AFUE Gas Furnace. This high quality HVAC unit comes standard with an aluminized-steel tubular heat exchanger, color-coded low voltage terminals, single-stage gas valve, silicon nitride igniter, single-speed induced draft blower, and superior warranty protection.

Does your home have electric baseboard heaters? Are you living in an area that has access to natural gas? The Goodman GMSS96 high efficiency furnace offers an efficiency rating of 96%, and you can save real money on your winter heating bills. If you don’t have access to natural gas, you can convert this furnace to be used with propane after a conversion kit is applied. When you’re upgrading from a previous generation system, you’ll likely still save a bundle.

The GMSS96 80k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Upflow/Horizontal - 21" Cabinet has a cabinet leakage of less than 2%, which means you will get more of the air throughout your home instead of being lost due to leakage. Providing you with 1600 CFM of air flow, this furnace is sized at 80,000 BTU which can be used in any home up to 2700 square feet in warmer climates zones. If you live in an area that also has a need for air conditioning in the summer, you will be glad to know this system pairs nicely with Goodman cooling systems.

Owning a reliable high efficiency furnace has never been so affordable with this Goodman multi-speed gas furnace! Check your local rebate program and see if they are offering incentives for replacing older less efficient equipment. With a durable steel cabinet and durable heat exchanger this furnace should be at the top of everyone’s list.

Goodman HA10676

Manufacturer Highlights

The Goodman® brand GMSS Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Single-stage gas valve
  • Durable Silicon Nitride igniter
  • Multi-speed blower motor
  • Quiet single-speed induced draft blower
  • Self-diagnostic control board
  • Color-coded low-voltage terminals
  • All models comply with California Low Nox emissions standards

Cabinet Features

  • Designed for multi-position installation
  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) - 2%
  • Heavy-gauge steel cabinet with durable finish
  • Foil-faced insulated heat exchanger cabinet
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GMSS960804CN
UPC 663051469181
AHRI Number 7365098
Gas Furnace Efficiency 96+%
Air Flow Direction Horizontal, Upflow
Configuration Floor Mounted
Avg Coverage Area 1,250 - 1,500 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 4 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 75,001 - 80,000 BTU
Product Height (in) 34.5
Product Length (in) 28.875
Product Width (in) 21
System Application Type Central Split Systems
Vent Connection 3 inches, 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight (lbs) 139.0000
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
What kind of filter does this use?
Where is the filter?
