This product has been discontinued.

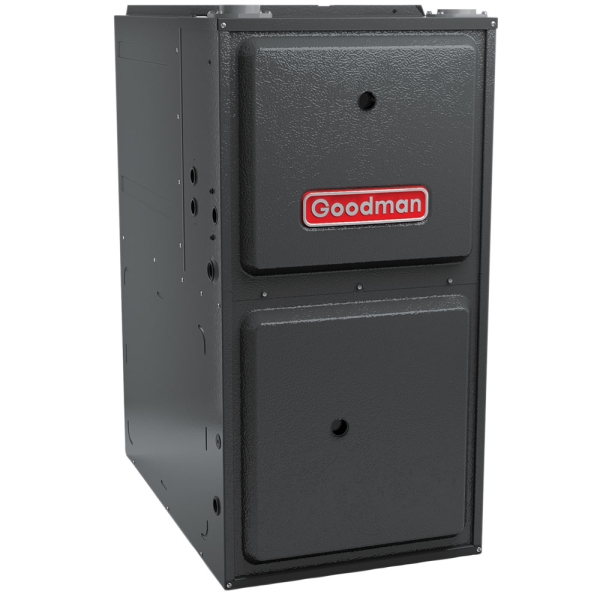

80k BTU 96% AFUE Variable Speed 2 Stage Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet
Get $100 Cash Back on Your Qualifying Purchase
- Spend over $1000 on heating and air equipment.
- Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
- Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
- Get a check mailed to you for $100.
Limited Time Offer. Act Now!
Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.
Contact an expert now.
What's included
- Goodman GCVC960804CN
- Owner Manual
- Lifetime Tech Support
When it comes to choosing the right gas furnace for your home you should have two main priorities - energy efficiency and performance. Fortunately for you, the Goodman GCVC96 Two Stage Variable-Speed 80k BTU 96% AFUE Low NOx Gas Furnace has both. You get a solid 96% AFUE energy efficiency rating alongside dual heat exchangers, ComfortNet compatibility, and a Lifetime Heat Exchanger Warranty.
Effective and economic air comfort technology is synonymous with the Goodman name. When looking for a new gas furnace, this factor cannot be overstated. The Goodman intention is to keep you as comfortable as possible without breaking your bank account.
This unit is manufactured for reliable peak performance. If peace of mind is important to you, look no further. Installation is easy, maintenance is minimal, and great value is the result.
This system allows for optional air flow orientation—downflow or horizontal (both left to right and right to left). There is flexibility to connect for gas and electricity on the right or the left. The 21-inch cabinet is durable and has a rating of 2% heat leak. The blower and heat exchanger sections are completely insulated and you will find it quiet and quick for ramping the heat up or down. The variable-speed airflow system and the multiple continuous fan speed will deliver virtually unnoticeable air circulation.
You will applaud the ComfortNet control, linking it to either a two-stage or single-stage thermostat. The silicon nitride igniter will not leave you nervous about getting things up and running as soon as needed. There is also a dual 7-segment display on the self-diagnostic control to insure optimum operation.
Manufacturer Highlights
The Goodman® brand GCVC Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.
Standard Features
- ComfortNet™ Communicating System compatible
- Heavy-duty aluminized-steel tubular heat exchanger
- Stainless-steel secondary heat exchanger
- Two-stage gas valve provides quiet, economical heating
- Durable Silicon Nitride igniter
- Quiet two-speed induced draft blower
- Utilizes ComfortNet™ communicating, two-stage or single-stage thermostats
- Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
- Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
- Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
- Multiple continuous fan speed options offer quiet air circulation
- Auto-Comfort and enhanced dehumidification modes available
- All models comply with California Low Nox emissions standards
Cabinet Features
- Designed for multi-position installation - downflow, horizontal left or right
- Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
- Easy-to-install top venting with optional side venting
- Convenient left or right connection for gas and electrical service
- Cabinet air leakage (QLeak) - 2%
- Heavy-gauge steel cabinet with durable finish
- Fully insulated heat exchanger and blower section
- Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications
| Model | GCVC960804CN |
|---|---|
| UPC | 663051469310 |
| AHRI Number | 7368843 |
| Product Height (in) | 34.5 |
| Gas Furnace Efficiency | 96+% |
| Product Length (in) | 28.75 |
| Configuration | Floor Mounted |
| Product Width (in) | 21 |
| Air Flow Direction | Downflow, Horizontal |
| Avg Coverage Area | 1,250 - 1,500 Sq Ft |
| Blower Motor | Variable Speed |
| Cooling Compatibility (up to) | 4 Ton |
| Electrical Phase | 1-Phase |
| Exhaust Pipe | PVC |
| Fuel Source | Natural Gas |
| Gas Valve | Two Stage |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 143.000000 |
| Primary Heating Capacity | 75,001 - 80,000 BTU |
| System Application Type | Central Split Systems |
| Vent Connection | 3 inches, 4 inches |
| Voltage | 120 |
| Warranty | 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement |
| California Residents | see Prop 65 WARNING |
