This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

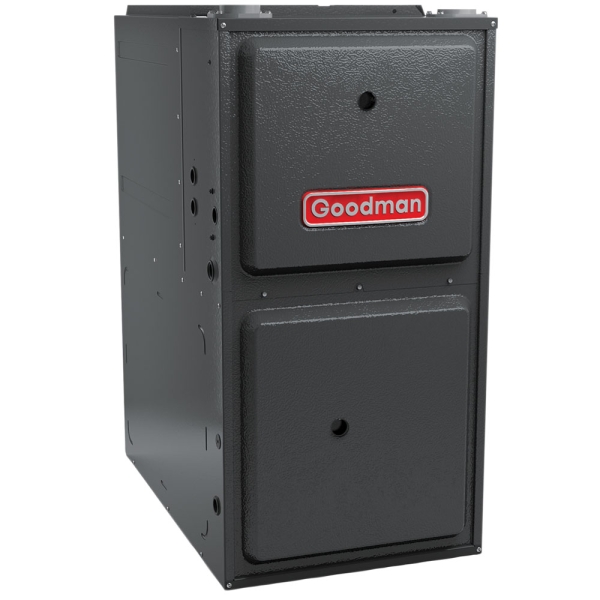

80k BTU 96% AFUE Variable Speed Modulating Goodman Gas Furnace - Downflow/Horizontal - 24.5" Cabinet

Item: HA10586
Model: GCVM960805DX
Condition: New

80k BTU 96% AFUE Variable Speed Modulating Goodman Gas Furnace - Downflow/Horizontal - 24.5" Cabinet Zoom

Photo Gallery

Reliable heating is a must-have for anyone who has to manage severe winter weather every single year. The Goodman GCVM96 Two-Stage Variable Speed 80k BTU 96% AFUE Modulating Low NOx Gas Furnace could be the answer. It features dual heat exchangers, a self-calibrating modulating gas valve, variable-speed circulator motor, auto-comfort mode for enhanced dehumidification, superb warranty support, and a price tag that won't break the bank.

Recommended Alternative:

  1. 80k BTU 97% AFUE Variable Speed Modulating Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet

    80k BTU 97% AFUE Variable Speed Modulating Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet

    Was: $2,250.00 See details...

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Product Features

Reliable heating is a must-have for anyone who has to manage severe winter weather every single year. The Goodman GCVM96 Two-Stage Variable Speed 80k BTU 96% AFUE Modulating Low NOx Gas Furnace could be the answer. It features dual heat exchangers, a self-calibrating modulating gas valve, variable-speed circulator motor, auto-comfort mode for enhanced dehumidification, superb warranty support, and a price tag that won't break the bank.

This quality manufactured heating unit from Goodman will stand up to any pressure a severe winter can throw at it. Reliable heating from the Goodman GCVM96 will ease your mind as the temperatures plummet – and it won’t put pressure on your bank account. Solid workmanship, when combined with efficiency and an excellent warranty combine to make this a superb heating choice. Included is a set of advanced diagnostics and automatic maintenance alerts which support the continuous monitoring of the system’s performance.

You will find the GCVM960805DX with its 80,000 BTUs enough to heat 1,250 to 1,500 square feet. And 96% of the fuel you purchase goes to heat your home, with only 4% lost to your chimney or the outdoors. It is difficult to believe that many once accepted an Annual Fuel Utilization Efficiency (AFUE) of 60% as recently as 1992. Dual heat exchangers are a significant part of this efficiency. Specifically, the heavy-duty aluminized-steel tubular heat exchanger is supplemented by the stainless-steel secondary heat exchanger.

In addition, the variable-speed circulator motor and the self-calibrating modulating gas valve contribute to the overall desirability of this Goodman unit. Don’t look any further in your search for a trustworthy model that provides quiet, energy-saving workhorse operation. The Goodman GCVM96 will usually run at the lowest possible speed to precisely maintain a constant, steady temperature in your home.

You will be pleased to hear that the heavy-gauge steel cabinet comes with a durable finish. There is a fully insulated heat exchanger and blower section. The air leakage from the cabinet is a low 2%. Connections for gas and electrical components can be made on the left or right side of the cabinet.

Curious about the space needed? This cabinet is 24.5 inches wide, 28.75 inches deep, and 40.75 inches high. Optional horizontal direction or downward air flow venting is easy to install and makes the Goodman GCVM960805DX able to adapt to most home installation needs. It represents great market value for today’s heating expectations.

Goodman HA10586

Manufacturer Highlights

The Goodman® brand GCVM Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • ComfortNet™ Communicating System compatible
  • Heavy-duty aluminized-steel tubular heat exchanger
  • Stainless-steel secondary heat exchanger
  • Self-calibrating modulating gas valve auto-configure for each installation
  • Durable Silicon Nitride igniter
  • Quiet variable-speed induced draft blower
  • Utilizes ComfortNet™ communicating, two-stage or single-stage thermostats
  • Self-diagnostic control board with constant memory fault code history output to a dual 7-segment display
  • Color-coded low-voltage terminals with provisions for electronic air cleaner and humidifier
  • Efficient and quiet variable-speed airflow system gently ramps up or down according to heating or cooling demand
  • Multiple continuous fan speed options offer quiet air circulation
  • Auto-Comfort and enhanced dehumidification modes available
  • All models comply with California 40 ng/J Low NOx emissions standard
  • AHRI Certified; ETL Listed

Cabinet Features

  • Certified for direct vent (2-pipe) or non-direct vent (1-pipe)
  • Easy-to-install top venting with optional side venting
  • Convenient left or right connection for gas and electrical service
  • Cabinet air leakage (QLeak) ? 2%
  • Heavy-gauge steel cabinet with durable finish
  • Fully insulated heat exchanger and blower section
  • Airtight solid bottom or side return with easy-cut tabs for effortless removal in bottom air-inlet applications

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model GCVM960805DX
UPC 663051472310
Gas Furnace Efficiency 96+%
Air Flow Direction Downflow, Horizontal
Configuration Floor Mounted
Avg Coverage Area 1,250 - 1,500 Sq Ft
Blower Motor Variable Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Modulating
Max Overcurrent Protection 15 amps
Primary Heating Capacity 75,001 - 80,000 BTU
Product Height 40.75
Product Length 28.75
Product Width 24.5
System Application Type Central Split Systems
Vent Connection 4 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight 145.0000
