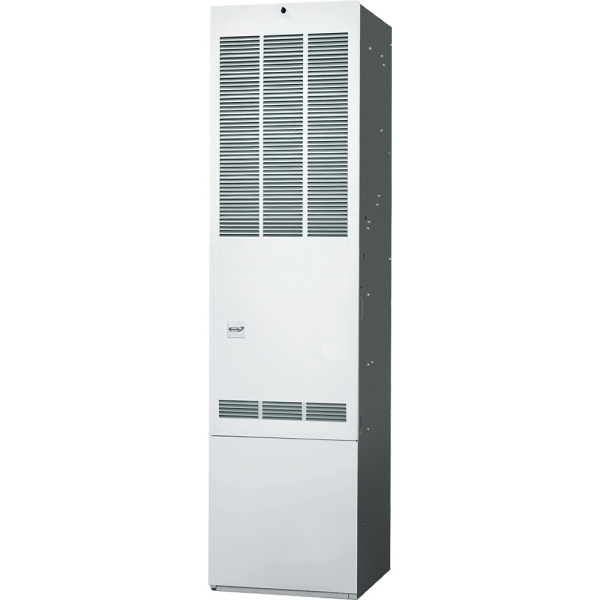

90k BTU 80% AFUE Multi Speed Revolv Mobile Home Gas Furnace with Coil Cabinet - Downflow

In stock
Ships Within 2-3 Business Days

Get $100 Cash Back on Your Qualifying Purchase

  1. Spend over $1000 on heating and air equipment.
  2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
  3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
  4. Get a check mailed to you for $100.

Limited Time Offer. Act Now!

Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.

Get everything right and save time

Contact an expert now.

What's included

Are you tired of wrestling with erratic temperatures and cold winter nights stemming from the outdated HVAC system in your mobile home? It's time for a transformation to dependable climate control with the 90k BTU 80% AFUE Multi Speed Revolv Mobile Home Gas Furnace with Coil Cabinet - Downflow. Earning both ETL listing and AHRI certification, achieving an 80% gas furnace efficiency rating, and designed to effectively manage spaces ranging from 1500 to 1800 square feet, this Revolv Furnace delivers efficient climate control that gets into every room of your mobile home to promise a comfortable atmosphere in every area. This dependability gives you the power to relax in any part of your home that grabs your attention, putting an end to the aggravation of searching around for a comfy spot.

The 90k BTU 80% AFUE Multi Speed Revolv Mobile Home Gas Furnace with Coil Cabinet - Downflow strategically employs a range of features that focus on both access to and the safeguarding of all internal hardware. Tailored to flex to fit the needs of your specific layout, this 90k BTU Revolv can be set up either as a freestanding unit in a utility room or discreetly tucked away within an alcove or closet. An open pawl latch can be removed to grant unimpeded access to the inner workings of this Revolv Furnace while securely sealing to thwart external pollutants from getting into the system. The appliance-quality door shields against rust and other forms of corrosion that is then treated with a baked enamel coating that equates to easy cleaning and added durability against wear and tear over the years. The fully insulated furnace cabinet in this Multi Speed Revolv serves to minimize both heat loss and operational sounds, bringing improved comfort throughout your entire mobile home without the loud noises often associated with older HVAC systems.

The true indicator of the well-conceived design behind the 90k BTU 80% AFUE Multi Speed Revolv Mobile Home Gas Furnace with Coil Cabinet - Downflow is found in the results. Adaptability was a significant factor for the Revolv Furnace, arriving AC ready to smoothly work with air conditioning units from 2 to 4 Tons. The large air filter is washable, ensuring simple servicing and cleaner air in every nook and cranny. A sealed combustion system with vents that exhaust gas directly outside while bringing in 100% fresh air from the great outdoors for the burner and a high-efficiency drum heat exchanger that produces reliable heat transfer with reduced air resistance produce performance that will leave you awe-struck. Finished by a burner that creates a uniform flame pattern to enhance the resilience of the heat exchanger, what more could you possibly be seeking? Upgrade to this Revolv Furnace and enjoy an uncompromising level of comfort.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

More Information
Model MG1E-090B
UPC 663132389117
AHRI Number 204541469
Product Height (in) 76
Gas Furnace Efficiency 80%
Product Length (in) 24.5
Product Width (in) 20
Air Flow Direction Downflow
Avg Coverage Area 1,500 - 1,800 Sq Ft
Blower Motor High Efficiency
Cooling Compatibility (up to) 3 Ton
Electrical Phase 1-Phase
Exhaust Pipe Metal
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Weight (lbs) 171.000000
Primary Heating Capacity 85,001 - 90,000 BTU
System Application Type Mobile Home Systems
Voltage 120
Warranty 2 Year Parts, 10 Year Heat Exchanger
