This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

90k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow - 24.5" Cabinet

Item: HA10614
Model: GKS90905DX
Condition: New

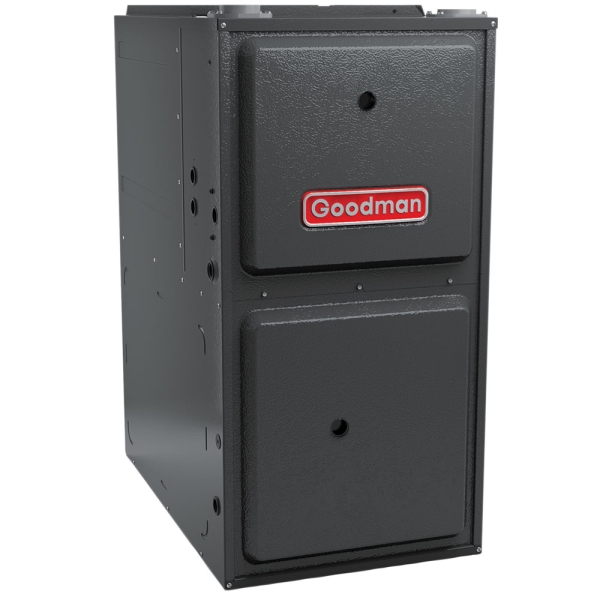

90k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow - 24.5" Cabinet Zoom

Photo Gallery

Certified for both direct-vent or non-direct venting and with easy to install top or optional side venting, the Goodman GKS9 Series High-Efficiency Gas Furnace is a flexible performer. It has convenient left or right connections for gas and electrical service, and an airtight solid bottom or side-return with easy-cut tabs for minimum effort removal in bottom air inlet applications. Combined with multi-position installation versatility, this might be the easiest furnace to install on the market.

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Goodman

What's Included

What customers are saying...



Overview

Certified for both direct-vent or non-direct venting and with easy to install top or optional side venting, the Goodman GKS9 Series High-Efficiency Gas Furnace is a flexible performer. It has convenient left or right connections for gas and electrical service, and an airtight solid bottom or side-return with easy-cut tabs for minimum effort removal in bottom air inlet applications. Combined with multi-position installation versatility, this might be the easiest furnace to install on the market.

Furnaces have become much more energy efficient over the years, and today Goodman brings you a gas furnace that lives up to its own high expectations.

Gas is one of the most commonly used fuels to heat homes. The GKS90 gas furnace is easy to use and quickly heats your home. Want year ‘round comfort? Just connect this furnace to a central air system and you’re ready to go!

This unit is 24.5” in size and has an upflow air motion meaning that this furnace should be placed vertically in the space it accommodates. This furnace runs with a 92% annual fuel-utilization-efficiency (AFUE) meaning that you directly spend 92 cents of every $1 on your fuel bill to heat your home. That rating makes this a highly efficient furnace! It helps to know that according to law, a gas furnace most operate at 78 percent efficient. This unit is well over that requirement so you’re ensured you are making a sound investment that will last for years! 97 cents is near total efficiency and this unit runs just below that mark!

The 90k BTU 92% AFUE Multi Speed Goodman Gas Furnace - Upflow - 24.5" Cabinet comes with many features including multi-position installation so you can choose to place the unit where it will fit best in your home. Goodman knows you want to heat your home without hearing your furnace running, and this unit does just that! It’s incredibly low operating sound levels won’t disturb your daily routine.

Goodman HA10614

Manufacturer Highlights

The Goodman® brand GKS Series Gas Furnaces offer energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Single-stage combination redundant gas valve
  • Hot surface igniter and patented adaptive learning control for long igniter life
  • Quiet, four-speed direct-drive circulator blower motor
  • Furnace control board with self-diagnostics and low-voltage terminal block Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Quiet, single-speed induced draft blower
  • All models comply with California NOx emissions standards

Cabinet Features

  • Foil-faced insulation lines the heat exchanger
  • Designed for upflow installation; can be converted to horizontal left or right with a pressure switch kit (sold separately)
  • Easy-to-install top venting is standard
  • Airtight solid bottom for side return applications and easy-cut tabs for effortless removal in bottom air inlet applications
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model GKS90905DX
UPC 663051484504
Gas Furnace Efficiency 92-94%
Air Flow Direction Upflow
Configuration Floor Mounted
Avg Coverage Area 1,500 - 1,800 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Single Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 85,001 - 90,000 BTU
Product Height (in) 40
Product Length (in) 28.75
Product Width (in) 24.5
System Application Type Central Split Systems
Vent Connection 3 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger
Weight (lbs) 170.0000
California Residents see Prop 65 WARNING
