This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

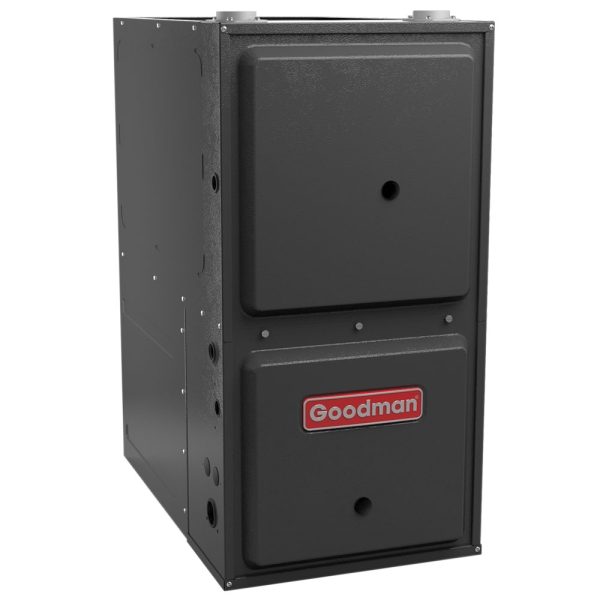

90k BTU 95% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow/Horizontal - 24.5" Cabinet

Item: HA10570
Model: GCH950905DX
Condition: New

90k BTU 95% AFUE Multi Speed 2 Stage Goodman Gas Furnace - Downflow/Horizontal - 24.5" Cabinet Zoom

Photo Gallery

Related Videos

In the market for a low NOx emissions standards furnace? Take a look at the Goodman GCH95 Series 95% AFUE Low NOx Two-Stage Gas Furnace. This home heating solution includes a dual-diameter tubular heat exchanger, two-stage gas valve, 110V silicon nitride igniter, color-coded low-voltage terminals, easy-to-install top venting, fully insulated steel cabinet, foil-faced insulation for the heat exchanger, an airtight solid bottom for side-return applications, and convenient left/right gas and electric connections.

Recommended Alternative:

  1. 100k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet

    100k BTU 96% AFUE Multi Speed Goodman Gas Furnace - Downflow/Horizontal - 21" Cabinet

    Was: $1,234.00 See details...

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

Overview

Product Features

In the market for a low NOx emissions standards furnace? Take a look at the Goodman GCH95 Series 95% AFUE Low NOx Two-Stage Gas Furnace. This home heating solution includes a dual-diameter tubular heat exchanger, two-stage gas valve, 110V silicon nitride igniter, color-coded low-voltage terminals, easy-to-install top venting, fully insulated steel cabinet, foil-faced insulation for the heat exchanger, an airtight solid bottom for side-return applications, and convenient left/right gas and electric connections.

If you’re searching for a reliable gas furnace that offers excellent value and comes at a budget-friendly price, you want the Goodman GCH95 90k BTU! With an AFUE rating of 95%, you’ll delight in the fact that .95 cents of every one of your hard-earned dollars goes toward heating your home!

Unlike conventional, single-stage furnaces, this Goodman two-stage furnace utilizes Goodman’s Dual$aver technology, eliminating temperature swings resulting from high-powered stops and starts. With its automatic detection, two-stage gas valve, the GCH95 mostly functions on the low setting, only switching to high when significantly greater heating power is required. This translates to greater energy efficiency, meaning greater cost savings for you.

The GCH95 is ideal for its its 4-speed, direct-drive blower motor, meaning less maintenance and fewer repair costs down the road! Additionally, a quiet low fan mode allows air to continue circulating throughout your home, even during the system’s off cycle.

This unit is full of features that have been designed to maximize product life! Equipped with a Silicon Nitride igniter that lasts twice as long as standard igniters, you can relax knowing that your Goodman furnace will continue working for you for years to come.

The durable self-diagnostic control board runs ongoing checks on system performance. Recent codes are stored in the system memory making troubleshooting and HVAC repair a breeze. Lastly, a thermally insulated cabinet reduces sound and minimizes air leakage to less than 2%, boosting efficiency!

The GCH95 furnace has also been engineered to reduce noisy functioning, a problem common in other furnaces. And with an entirely insulated, heavy-gauge steel cabinet, the result is high efficiency heating and cooling without excess noise to disturb your tranquil home.

Goodman HA10570

Manufacturer Highlights

The Goodman® brand GCH Series Gas Furnace offers energy efficiencies and operating sound levels that are among the best in the heating and cooling industry. Quality manufacturing as well as easy installation and maintenance make this unit one of the best values on the market.

Standard Features

  • Dual-diameter tubular heat exchanger
  • Two-stage gas valve with Dual$aver™ technology that allows installer to activate the two-stage valve with the flip of a dipswitch
  • 110V Silicon Nitride igniter
  • Furnace control board with self-diagnostics, color-coded low-voltage terminals, and provisions for electronic air cleaner and 24-volt humidifiers
  • Control board stores the last five diagnostic codes in memory; simple push-button activation outputs the fault history to a flashing red LED
  • Low constant fan allows homeowner to activate the low heat speed to efficiently circulate air throughout the home
  • Self-adjusting feature automatically adjusts to high or low stage based on outside temperature without an outdoor temperature sensor
  • Dual-certified for sealed combustion direct vent (2-pipe) or non-direct vent (1-pipe) applications
  • Easy-to-install top venting is standard; alternate flue/vent located on the right (GMH95)
  • All models comply with California NOx emissions standards

Cabinet Features

  • Fully insulated, heavy-gauge steel cabinet with durable baked-enamel finish
  • Foil-faced insulation lines the heat exchanger
  • Designed for multi-position installation -- upflow, horizontal left or right;
  • Airtight solid bottom for side-return applications and easy cut tabs for effortless removal in bottom air inlet applications
  • Convenient left/right connection for gas/electric service
  • Coil and furnace fit flush for most installations

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Product Specifications

Model GCH950905DX
UPC 663051484603
Gas Furnace Efficiency 95%
Air Flow Direction Downflow, Horizontal
Configuration Floor Mounted
Avg Coverage Area 1,500 - 1,800 Sq Ft
Blower Motor Multi Speed
Cooling Compatibility (up to) 5 Ton
Electrical Phase 1-Phase
Exhaust Pipe PVC
Fuel Source Natural Gas
Gas Valve Two Stage
Max Overcurrent Protection 15 amps
Primary Heating Capacity 85,001 - 90,000 BTU
Product Height 40
Product Length 28.75
Product Width 21
System Application Type Central Split Systems
Vent Connection 3 inches
Voltage 120
Warranty 10 Year Parts, Lifetime Heat Exchanger, 10 Year Unit Replacement
Weight 146.0000
