9k BTU 18 SEER2 Mitsubishi WX Ductless Heat Pump Split System - Wall Mounted - R454B
Shop All MITSUBISHI

Accessories
Description / Documents
Whether you’re looking to keep comfortable in your workshop during inclement weather or a single room in your home struggles due to seasonal extremes, a single zone HVAC system is the easiest solution to stay comfortable. For a powerful solution that won’t leave you wanting, integrate a 9k BTU 18 SEER2 Mitsubishi WX Wall Mounted Ductless Split System - Wall Mounted - R454B into your space. Earning ETL listing and AHRI certification, the Mitsubishi Ductless Heat Pump System showcases the validity of every functional and safety claim by passing thorough examinations from third-party agencies. Enjoy comfort in any individual space with the addition of a 9k BTU Mitsubishi WX Split System.

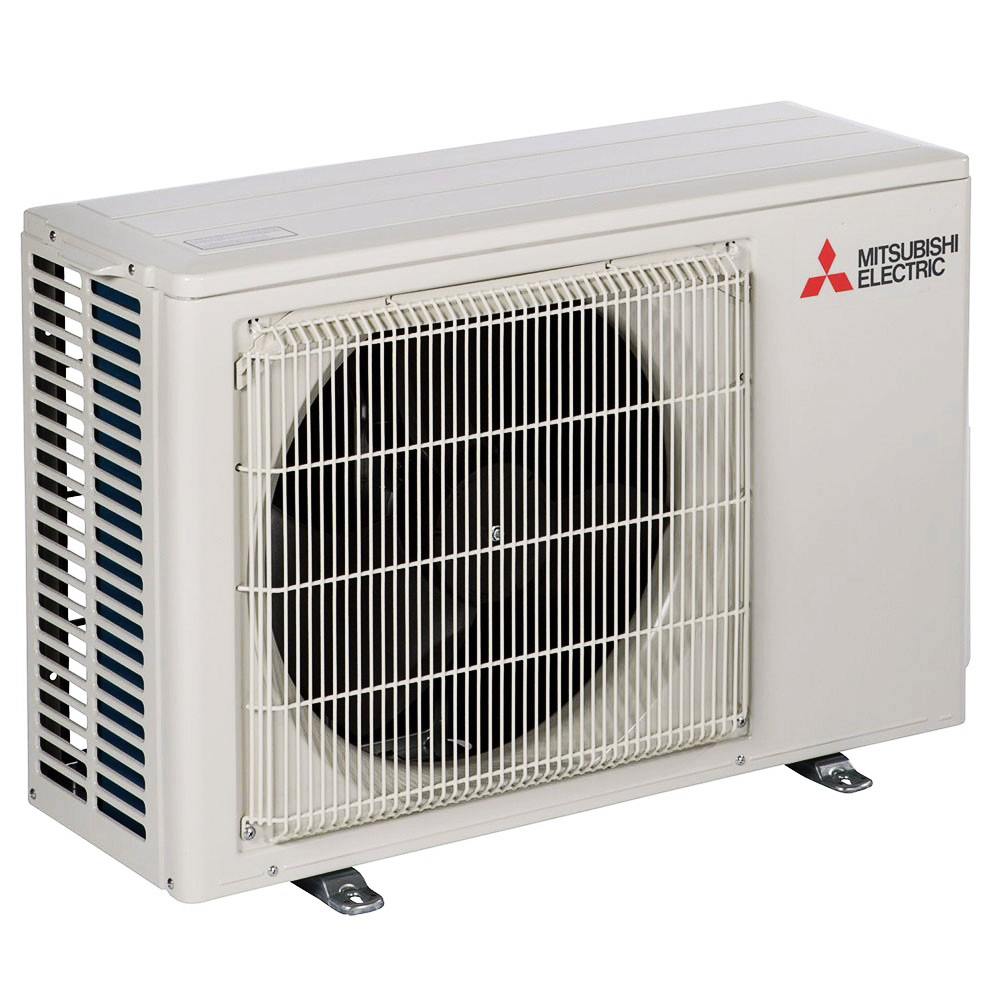

Designed to ensure the indoor conditions you crave, the condenser in the 9k BTU 18 SEER2 Mitsubishi WX Wall Mounted Ductless Split System - Wall Mounted - R454B is built to go the distance for your climate control in any weather. Powering the indoor unit, the Mitsubishi Condenser turns the whole system back on after any unexpected downtime or outages. With an inverter-driven compressor, you’ll enjoy results that optimize efficiency while ensuring that the temperature stays closer to your set-point throughout the day. Rounded out with a blue fin coating that bolsters the innate corrosion resistance of the aluminum in the heat exchanger, the Mitsubishi Heat Pump is the perfect fit for any home, even those in harsh climates along the coast or near industrial zones.
Making the task of catering your climate control to your preferences effortless, the air handler in the 9k BTU 18 SEER2 Mitsubishi WX Wall Mounted Ductless Split System - Wall Mounted - R454B puts the power of comfort in the palm of your hand. The combination of a nano platinum filter and an electrostatic enzyme filter ensures crisp, clean air with every inhale, stopping unwanted odors, allergens, and charged particles from circulating through your space. Smart dry mode and econo cool provide results that stretch beyond temperature regulation, removing excess humidity and optimizing efficiency without compromising comfort. Between the 12-hour timer and four unique fan speed options, it’s easy to see how the Mitsubishi Split System guarantees the performance you want in every season.
Giving yourself access to the temperatures you want within your home shouldn’t be a struggle, so don’t settle for anything less than the best. Opt for a 9k BTU Mitsubishi WX Ductless Split System with Wall Mounted Air Handler making use of R454B refrigerant today and give your loved ones year-round comfort without compromise.
Customer Reviews / Q&A
Specifications
System Overview
| Model | MUZ-WX09NL,MSZ-WX09NL |
|---|---|
| AHRI Number | 216626281 |
| Bundle Avg Coverage Area | Less than 500 Sq Ft |
| Bundle Cooling Capacity | Less than 1 Ton |
| Bundle Cooling Efficiency (SEER2) | 18 |
| Heat Pump Efficiency (HSPF2) | 8.5 |
| Zones | 1 |
| Region Compatibility | Nationwide |
MUZ-WX09NL Specifications:
| Model | MUZ-WX09NL |
|---|---|
| UPC | 192890002964 |
| AHRI Number | 216626281 |
| Product Height (in) | 21.625 |
| Avg Coverage Area | Less than 500 Sq Ft |
| Product Length (in) | 11.25 |
| Compressor | Inverter |
| Product Width (in) | 31.5 |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 8.5 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 77.000000 |
| Primary Heating Capacity | 10,001 - 15,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 18 |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
MSZ-WX09NL Specifications:
| Model | MSZ-WX09NL |
|---|---|
| UPC | 192890002872 |
| Product Height (in) | 11.063 |
| Configuration | Wall Mounted |
| Product Length (in) | 9 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33 |
| Blower Motor | Multi Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 23.000000 |
| Refrigerant | R-454b |
| Special Features | Remote Management |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
