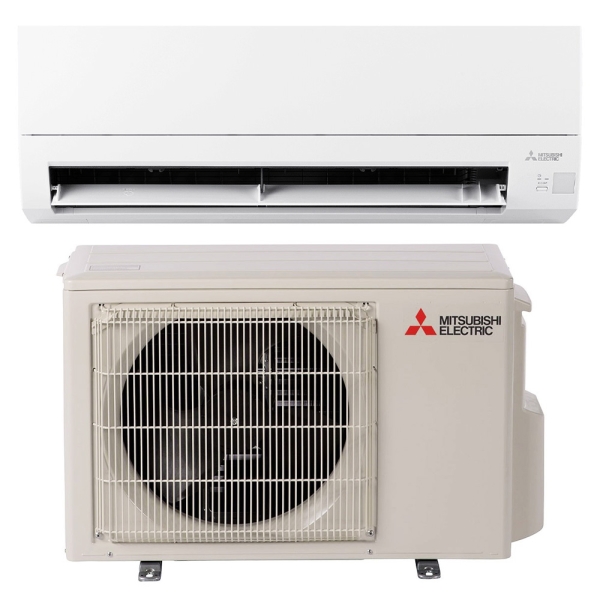

9k BTU 20 SEER2 Mitsubishi HX Ductless Heat Pump Split System - Wall Mounted - R454B
Shop All MITSUBISHI

This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
Having a home layout that struggles to effectively use a single central HVAC system for proper climate control results doesn’t have to spell the end for comprehensive comfort. Having a solution for any room or area in your home that has trouble fighting off extreme outdoor temperatures is as simple as integrating a 9k BTU 20 SEER2 Mitsubishi HX Ductless Heat Pump Split System - Wall Mounted - R454B into the mix. Earning both ETL listing and AHRI certification, the Mitsubishi Ductless Heat Pump System showcases the validity of every performance and safety claim by passing intensive testing from independent agencies. Give your home the support it needs to keep every nook and cranny comfortable with the addition of a 9k BTU Mitsubishi HX Split System.
Built to withstand the worst the world throws your way, the condenser in the 9k BTU 20 SEER2 Mitsubishi HX Ductless Heat Pump Split System - Wall Mounted - R454B provides the reliably efficient performance you need during seasonal extremities. Boasting a design that uses the outdoor condenser to power the indoor unit, the system will kick back on automatically after any unexpected downtime or outages. The inverter-driven compressor ensures sustainable operation that keeps temperatures closer to your set-point at all times, minimizing how far indoor conditions can drift from your preferences. Equipped with a blue fin treatment that bolsters the innate corrosion resistance of the aluminum fins in the heat exchanger, you can relax knowing the Mitsubishi Heat Pump can go the distance for your comfort.
Effectively distributing well-conditioned air through your space, the air handler in the 9k BTU 20 SEER2 Mitsubishi HX Ductless Heat Pump Split System - Wall Mounted - R454B makes it easy to stay comfortable in any weather. Options like a 12-hour timer, econo cool, smart dry mode, and four distinct fan speeds give you tailored results that cater to your preferences, even as they change over time. Between the included hand-held remote controller, compatibility with wired and wireless controllers, and third-party app control options, you can have access to monitor and adjust your climate control from anywhere. Sporting a dual barrier treatment that keeps pollutants from clinging to the inner workings, as well as an electrostatic enzyme filter, the Mitsubishi GX Split System ensures every inhale stays crisp, clean, and comfortable.
You don’t have to settle for substandard heating and cooling results in any individual room when there’s a solution this simple to ensure your ideal temperatures. Choose a 9k BTU Mitsubishi HX Ductless Heat Pump Split System with Wall Mounted Air Handler running on R454B refrigerant today and guarantee the year-round comfort that you and your loved ones deserve in any season.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | MUZ-HX09NL,MSZ-HX09NL |
|---|---|
| AHRI Number | 216626290 |
| Bundle Avg Coverage Area | Less than 500 Sq Ft |
| Bundle Cooling Capacity | Less than 1 Ton |
| Bundle Cooling Efficiency (SEER2) | 20 |
| Heat Pump Efficiency (HSPF2) | 10 |
| Zones | 1 |
| Region Compatibility | Nationwide |
MUZ-HX09NL Specifications:
| Model | MUZ-HX09NL |
|---|---|
| UPC | 192890002889 |
| AHRI Number | 216626290 |
| Product Height (in) | 21.625 |
| Avg Coverage Area | Less than 500 Sq Ft |
| Product Length (in) | 11.25 |
| Compressor | Inverter |
| Product Width (in) | 31.5 |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 10 |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 77.000000 |
| Primary Heating Capacity | 10,001 - 15,000 BTU |
| Refrigerant | R-454b |
| Cooling Efficiency (SEER2) | 20 |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
| Region Compatibility | Nationwide |
MSZ-HX09NL Specifications:
| Model | MSZ-HX09NL |
|---|---|
| UPC | 192890002926 |
| Product Height (in) | 11.031 |
| Configuration | Wall Mounted |
| Product Length (in) | 9.25 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 33 |
| Blower Motor | Multi Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Flared |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 24.000000 |
| Refrigerant | R-454b |
| Special Features | Remote Management |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 10 Year Parts |
