Designed for straightforward installation, this 9,000 BTU mini split system works seamlessly with pre-charged MrCool DIY quick-connect line sets. Skip expensive professional installation fees while adding reliable ductless heating and air conditioning to your garage, workshop, or home addition.
Quick Connect® Threaded Fittings
Low Ambient Cooling
133°F High Temperature Self-Cleaning System
Cut monthly electric bills with advanced TruInverter compressor technology and eco-friendly R32 refrigerant. Rigorously tested by third-party agencies and Energy Star certified, this high-efficiency split system dynamically adjusts power output to maintain precise room temperatures without wasting energy.

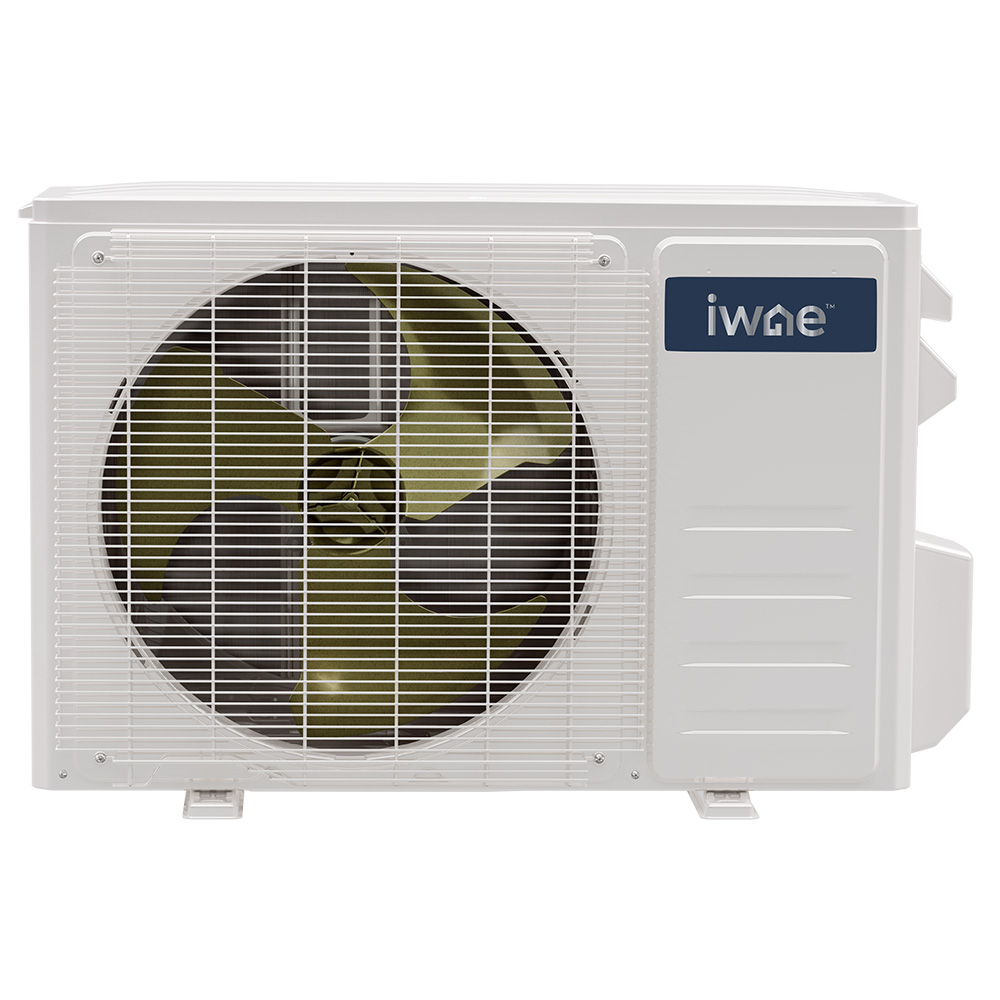

Buy with confidence knowing your investment is covered by 5-year parts and 7-year compressor limited warranty coverage. Built with a 133°F high-temperature self-cleaning cycle, the outdoor condenser actively sterilizes internal hardware to resist wear and extend system lifespan.
Looking for a powerful, single-zone climate control solution? From keeping your bedroom with a wall of windows cool in summertime to supplying heat to your garage in the heart of winter, the addition of a 9k BTU 23 SEER2 IWAE TruInverter Ductless Heat Pump Split System - Wall Mounted - R32 - 115V can make all the difference. Earning Energy Star and NEEP certifications, the IWAE TruInverter Ductless Heat Pump showcases the validity of its high efficiency claims by passing exhaustive testing from independent agencies. Give a single room the year-round temperature regulation results you want with the integration of a 9k BTU IWAE Split System.
Designed to suit a wide range of climates, the condenser in the 9k BTU 23 SEER2 IWAE TruInverter Ductless Heat Pump Split System - Wall Mounted - R32 - 115V won’t fall short of crafting your ideal indoor ambiance. Equipped with a 133 degree Fahrenheit high temperature self cleaning and sterilization system, the IWAE Heat Pump protects its internals by performing a quick self-maintenance step after operating in harsh conditions. TruInverter technology stops the temperature from fluctuating too far from your set-point, saving energy and maximizing your comfort. Providing low ambient heating in temperatures down to -13 degrees Fahrenheit and strong cooling when conditions climb to 131 degrees Fahrenheit, the IWAE Split System is the perfect fit for homes in regions with vastly different summer and winter temperatures.
Giving you the power to cater your climate control, the air handler in the 9k BTU 23 SEER2 IWAE TruInverter Ductless Heat Pump Split System - Wall Mounted - R32 - 115V offers a variety of settings that meet your needs where they are. A combination of anti-cold air technology and 4 way airflow pushes comfortably heated air through every inch of the room, but only after the air has been adequately heated. Options like sleep and eco mode both adjust the set-point to conserve energy, differing in length of time and what conditions trigger the change. With sleep mode changing it up overnight and eco mode accounting for the temperature of the heat exchanger, it’s easy to see why the IWAE TruInverter Split System can guarantee the results you’ve been wanting in any season.
Offering do-it-yourself installation thanks to compatibility with the MrCool No-Vac Quick Connect Line Sets, then backing the system with a limited warranty that covers 5 years on parts and 7 years on the compressor, what more could you be holding out for? Choose a 9k BTU IWAE TruInverter Ductless Heat Pump Split System with Wall Mounted Air Handler running on R32 refrigerant today and enjoy every inch of your space, even the room that always struggles.
From the Manufacturer
| Model | AEPLIWMHV23S0932B1A,AEPLIWAWM23E0932B1A |
|---|---|
| UPC | 840433704300 |
| AHRI Number | 218451556 |
| Configuration | Wall Mounted |
| Bundle Avg Coverage Area | Less than 500 Sq Ft |
| Bundle Cooling Capacity | Less than 1 Ton |
| Bundle Cooling Efficiency (SEER2) | 23 |
| Heat Pump Efficiency (HSPF2) | 9.8 |
| Series | TruInverter |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Zones | 1 |
| Region Compatibility | Nationwide |
| Model | AEPLIWMHV23S0932B1A |
|---|---|
| AHRI Number | 218451556 |
| Product Height (in) | 21.61 |
| Avg Coverage Area | Less than 500 Sq Ft |
| Product Length (in) | 12 |
| Compressor | Inverter |
| Product Width (in) | 31.3 |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Heat Pump Efficiency (HSPF2) | 9.8 |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 51.800000 |
| Primary Heating Capacity | 5,000 - 10,000 BTU |
| Refrigerant | R-32 |
| Cooling Efficiency (SEER2) | 23 |
| Series | TruInverter |
| System Application Type | Ductless Split Systems |
| Voltage | 120 |
| Warranty | 5 Year Parts, 7 Year Compressor |
| Region Compatibility | Nationwide |
| Model | AEPLIWAWM23E0932B1A |
|---|---|
| Product Height (in) | 12.05 |
| Configuration | Wall Mounted |
| Product Length (in) | 7.68 |
| Air Flow Direction | Horizontal |
| Product Width (in) | 32.28 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect, Flared, or Sweat |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 25 amps |
| Weight (lbs) | 20.700000 |
| Refrigerant | R-32 |
| Series | TruInverter |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 120 |
| Warranty | 5 Year Parts |
| Model | DIY11-1438-D |
|---|---|
| UPC | 840433619864 |
| Product Length (in) | 138 |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Weight (lbs) | 4.144000 |
| Suction Line Size | 3/8 inch |
| System Application Type | Ductless Split Systems |
| Warranty | None |
