This product has been discontinued.

The manufacturer has discontinued this product permanently. Please see the alternative product below.

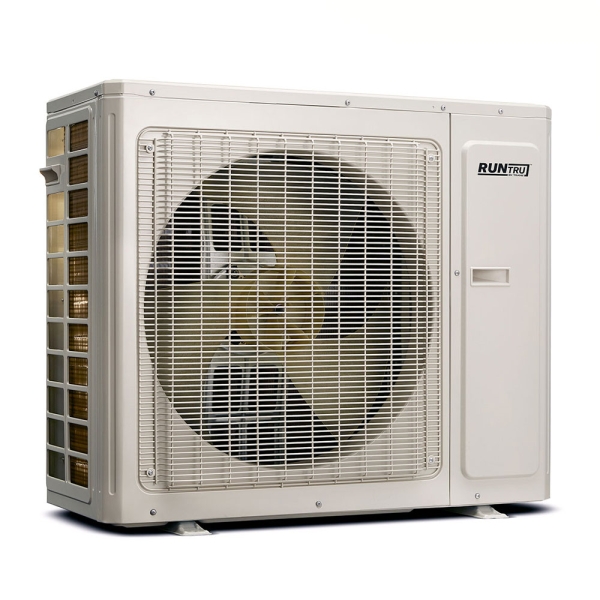

9K BTU 23 SEER2 Trane RunTru Ductless Heat Pump Condenser

Item
HA23557
Model
M4THS2309A11N
Condition
New
Out of stock
Ships Within 2-3 Business Days

Get $100 Cash Back on Your Qualifying Purchase

  1. Spend over $1000 on heating and air equipment.
  2. Share this video publicly on your existing Facebook news feed. https://youtu.be/O4nmrlbF0aA
  3. Email a screenshot of the video on your facebook profile to [email protected] along with your order number.
  4. Get a check mailed to you for $100.

Limited Time Offer. Act Now!

Rebate only valid for qualifying purchases made after September 19, 2022 until further notice. Rebate claim limited to one per customer. Purchase must be made prior to sharing video. Please allow 1-2 weeks for processing. May not be used in conjunction with any other offer or discount. Video privacy setting must be public.


Get everything right and save time

Contact an expert now.

Free Shipping

What's included

Put an end to the erratic climate and enjoy the reliability of the 9K BTU 23 SEER2 Trane RunTru Ductless Heat Pump Condenser. Coming fully charged to accommodate up to 25 feet of piping and included numerous elements installed directly in the factory like the coil, condensate drain pan, fan motor, washable filter, air purifying filter, and electric controls, this Trane Heat Pump aims to decrease the amount of work necessary for installation to save you time and money. Designed to operate at outdoor ambient temperatures as high as 115 degrees Fahrenheit, all but the most tropical of areas can have their needs met by this Trane Condenser. Constructed of a heavy gauge, galvanized steel and painted with a weather-resistant powder paint, this Ductless Trane can handle most severe weather conditions. With both ETL listing and AHRI certification, an out-of-this-world SEER2 rating of 23, and the power to handle up to 500 square feet, you can breathe a sigh of relief knowing all performance claims are verified.

Safety was clearly one of the top priorities when creating the 9K BTU 23 SEER2 Trane RunTru Ductless Heat Pump Condenser. The compressor in this Trane Heat Pump features internal over temperature and pressure protection with dipped hermetic motor windings to ensure any causes for concern will be swiftly handled without the need for your intervention. A centrifugal oil pump helps to reduce vibration, helping to both minimize the amount of noise this Trane Condenser makes and keep performance idyllic for longer. High and low pressure controls are inherent to the compressor to allow for quick adjustments as needed in the day to day operation of this Ductless Trane system. With all units having the capability to be controlled remotely with an optional infrared remote controller and digital display panel, you have the flexibility to make changes to your home's ambiance at your whims without the need to get access to the cabinet.

Enjoy the strength of the 9K BTU 23 SEER2 Trane RunTru Ductless Heat Pump Condenser with multitudes of hardware chosen to give dependable results. A condenser fan, compressor relay, and suction line multi function service valve are all standard on this Trane Heat Pump, providing unparalleled refrigerant control. Utilizing auto swing, dual horizontal blades, not only does this Trane Condenser optimize the vertical airflow for distribution throughout your home but it goes even further by automatically closing when the AC is turned off. This keeps dust from entering the unit, producing optimal functionality for longer periods of time. With the ability to manually adjust the wide-angle louvers to adjust the coverage and direction of the airflow, what else could you be looking for? Upgrade to this Ductless Trane system today and start enjoying the climate control that you've been craving.

More Information
Model M4THS2309A11N
UPC 601954743847
Product Height (in) 23.46
Avg Coverage Area Less than 500 Sq Ft
Product Length (in) 12.59
Compressor Single Stage
Product Width (in) 33.39
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Heat Pump Efficiency (HSPF2) 9.5
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Weight (lbs) 80.500000
Primary Heating Capacity 5,000 - 10,000 BTU
Refrigerant R-410a
Cooling Efficiency (SEER2) 23
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Region Compatibility Nationwide
California Residents see Prop 65 WARNING
