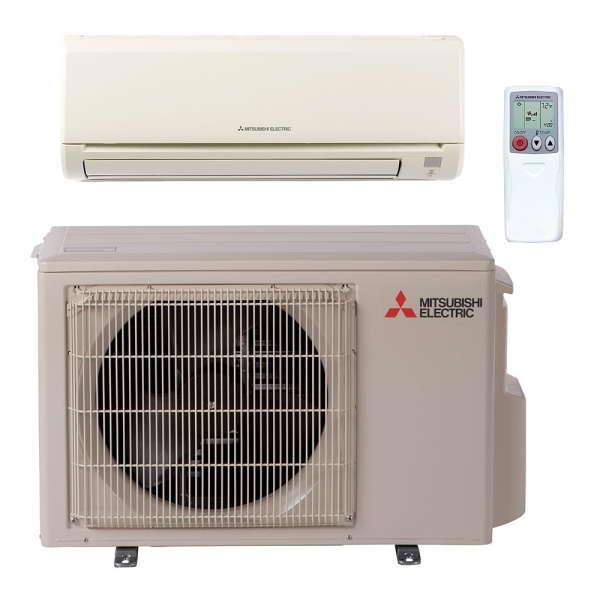

9k BTU 24.6 SEER Mitsubishi M Series Ductless Air Conditioner Split System - Wall Mounted

Item: HA16498
Models: MUY-GL09NA-U1, MSY-GL09NA-U1
Condition: New

9k BTU 24.6 SEER Mitsubishi M Series Ductless Air Conditioner Split System - Wall Mounted Zoom

Photo Gallery

Related Videos

This is an outdoor condenser designed to bring high-efficiency zoned comfort to homes in frigid climates. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. This outdoor unit is delivered with the base pan heater factory installed which rids the chance of ice from building up and damaging the outdoor unit.

Availability: In stock

As low as: $1,320.75

Price as configured: $1,320.75

Ingram Financing


* Required Fields

Ships Within 2-3 Business Days

$100 Rebate Offer

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

This Bundle Includes

9k BTU Mitsubishi M Series Wall Mounted Ductless Air Handler 9k BTU Mitsubishi M Series Wall Mounted Ductless Air Handler Item: HA12922 Model: MSY-GL09NA-U1 Qty: 1

Overview

This is an outdoor condenser designed to bring high-efficiency zoned comfort to homes in frigid climates. The outdoor condenser uses some of the most advanced technology available to modulate temperature without the energy-wasting overshoots and short-cycling associated with simpler systems. This outdoor unit is delivered with the base pan heater factory installed which rids the chance of ice from building up and damaging the outdoor unit.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model MUY-GL09NA-U1,MSY-GL09NA-U1
AHRI Number 201754333
Bundle Avg Coverage Area Less than 500 Sq Ft
Bundle Cooling Capacity Less than 1 Ton
Bundle Cooling Efficiency 19 SEER and Above
EER 15.4
Region Compatibility Nationwide
California Residents see Prop 65 WARNING

MUY-GL09NA-U1 Specifications:

Model MUY-GL09NA-U1
UPC 00622632121139
Avg Coverage Area Less than 500 Sq Ft
Compressor Inverter
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 21.6
Product Length (in) 11.3
Product Width (in) 31.5
Refrigerant R-410a
Cooling Efficiency 19 SEER and Above
Suction Line Size 3/8 inch
System Application Type Central Split Systems
Voltage 240
Warranty 5 Year Parts, 7 Year Compressor
Weight (lbs) 88.0000
Region Compatibility North, Southeast

MSY-GL09NA-U1 Specifications:

Model MSY-GL09NA-U1
UPC 00622632121207
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Flared
Liquid Line Size 1/4 inch
Max Overcurrent Protection 15 amps
Product Height (in) 11.6
Product Length (in) 9.1
Product Width (in) 31.4
Suction Line Size 3/8 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 22.0000

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
My load calcs indicate a .95 btuh mini split unit. A 10,000 btuh is hard to find. What would be a better fit, a 9,000 btuh or a 12,000 btuh.
One online retailer is telling me I need to purchase a base pan heater for my condenser for the Mitsubishi M GL series. I live in central Kansas.
Is that true?

They also said the line set has to be a minimum of 10' or it voids the warranty and the licensed installer can't adjust the pressure for a short line?
can you run to air handlers on the 9k btu unit?
