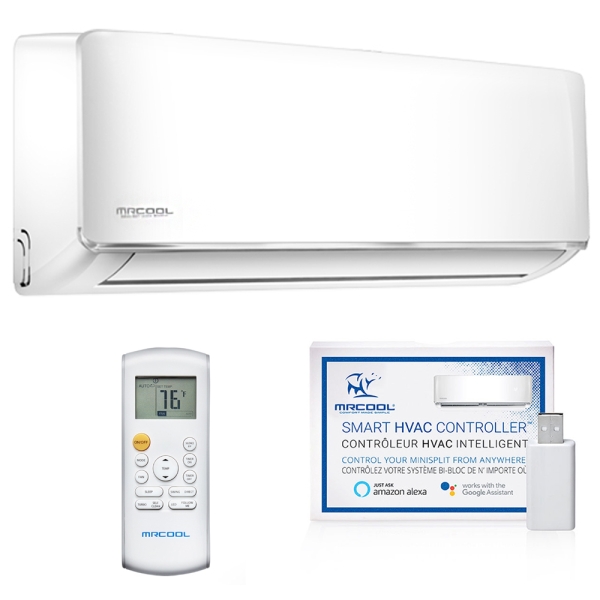

9k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation 240v

Item: HA21058
Model: DIY-09-HP-WMAH-230B
Condition: New

9k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation 240v Zoom

Photo Gallery

Expect a reliably comfortable home with the 9k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation 240v distributing heated or cool air quietly and efficiently. The 3rd Generation DIY Air Handler fits in every home with its convenient wall mounted plate and delivers 9,000 BTU heating capacity.

Availability: In stock

$349.00
Ingram Financing


Ships Within 3-5 Business Days

Get everything right and save time

Contact an expert now.

Call: 1-270-575-9595

or click here to chat

MrCool

What's Included

What customers are saying...



Overview

Expect a reliably comfortable home with the 9k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation 240v distributing heated or cool air quietly and efficiently. The 3rd Generation DIY Air Handler fits in every home with its convenient wall mounted plate and delivers 9,000 BTU heating capacity.

This 9k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation 240v has several operating modes to deliver heat and air to your preference. To operate the air handler in manual operation, you can simply flip a switch into emergency operation mode from the front panel. The unit will automatically select cooling, heating, or fan-only depending on the temperature you set and the current room temperature when Auto Operation is engaged.

Save energy and money by limiting usage in an eight hour window when in sleep mode. When using this operating mode, the temperature will increase 2 degrees Fahrenheit when cooling or decrease 2 degrees Fahrenheit when heating every hour for the first two hours. For the remaining six hours, the unit will operate at the more moderate temperature until the sleep mode switches off.

Dehumidify this air handler while keeping your home at your desired temperature by using the drying mode. To accomplish this, the unit intermittently switches the cooling or fan-only option on and off.

Should you encounter a power interruption, the 9k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation 240v will stop operating. Once the power supply returns, the air handler will restart automatically with its previous session’s settings. Easily read any alerts or pertinent information for your air handler from the digital display.

If you prefer an interruption-free space, this 9k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation 240v has a mute function that both silences its buzzer and turns off the LED display.

You can effortlessly operate this entire unit wirelessly. Just connect the wireless control module into the USB port located on the back of the front cover. You can then control the unit either from the remote or from a smartphone app. It’s a simple step that gives you full control of your home’s heat and air.

Keep the remote close by to use the MrCool Follow Me function, which tracks the air temperature around you and adjusts its operation so you are as comfortable as possible. You can also connect your unit to your Google Home or Amazon Alexa without any additional setup or attachments.

This 9k BTU MrCool DIY Ductless Wall Mounted Air Handler - 3rd Generation 240v uses an easily accessible fresh air filter to keep the air you breathe pure and clean. After 240 hours of operation, the unit will display an alert to clean the air filter, to ensure that your home’s air continues to stay fresh and the unit continues to operate at its utmost efficiency. After 2,880 hours, the unit will display an alert that the air filter should be replaced.

Warranty Terms

For a full description of all warranties applicable to this product as well as individual manufacturer requirements, please review the manufacturer's consumer brochure and/or product warranty documents.  Online warranty registration must be completed within 60 days of installation.  Due to state laws, online registration is not required in California or Quebec. Call for warranty availability on scratch & dent and surplus items.

For additional warranty information, click here.

Specifications

Model DIY-09-HP-WMAH-230B
UPC 810035931787
Air Flow Direction Horizontal
Configuration Wall Mounted
Blower Motor Variable Speed
Cooling Capacity Less than 1 Ton
Electrical Phase 1-Phase
Line Set Connection Type Quick Connect
Liquid Line Size 1/4 inch
Product Height (in) 11.69
Product Length (in) 7.44
Product Width (in) 31.57
Series DIY
Special Features WiFi Capable
Suction Line Size 1/2 inch
System Application Type Ductless Split Systems
Voltage 240
Warranty 5 Year Parts
Weight (lbs) 37.0400
California Residents see Prop 65 WARNING

Reviews

Q & A

Do you have questions about this product?

Sort by ASC
can the piping for the mr cool diy wall mount air handlers be routed out of the SIDE of the unit?
What are the dimensions of the air handling units
A different question posed if the piping can be routed through the side, to which the answer was yes. Is this for both left and right side, or only right side? And if either side, can drainage be routed out the back from either side even if the linesets are routed through the left or right?
Can the air handler unit be installed vertically instead of horizontally?
does this come with the outdoor unit to indoor unit power and communication cable?
Do you sell air handlers that require little to no clearance between the unit and the ceiling?
What about side clearance requirements between the handler and a wall?

What are the minimum clearances for the
ITEM: HA21058 MODEL: DIY-09-HP-WMAH-230B ?
Do the MrCool Air Handlers utilize inverter technology to regulate the room environment?
Do this model coming with the compressor ? If none what options do we have for a complete set DIY 9K BTU with 25Ft. Length installation kit ?
other question : is there any dual zone compressor fit for this model ?
Does this air handler come with a vacuumed line set and power cord?
What size room can a 9K cool efficiently, 250sqft?
Do you have an air handler that is less than 31.57 inches wide?
Can this air handler be connected to the single unit 12K Mr Cool DIY BTU condenser? Or can the 9K air handlers only be connected to multi-zone air condensers?
I have a 12K air handler hooked up to a 12K condenser unit, but now I've purchased a multi-zone condenser and need to relocate the original 12K condenser to a smaller room. Can I hook up a 9k air handler to that single 12K condenser?
what is the measurement of wall mounted air handler 3rd generation 240v? or how long and how wide it is.
