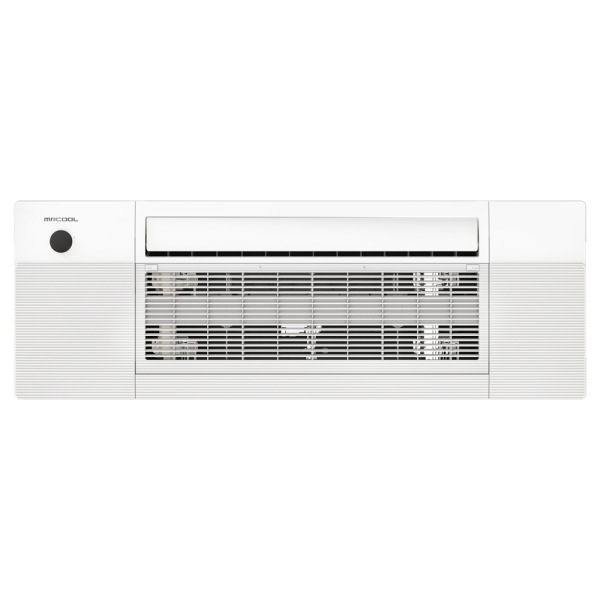

9k BTU MrCool DIY OuttaSight Ductless Ceiling Cassette Air Handler
Shop All MRCOOL
This product has been discontinued.
Recommended Alternative:
Accessories
Description / Documents
If you're looking for efficient heating and cooling in an out of sight and discrete option, the 9k BTU MrCool DIY Ductless Ceiling Cassette Air Handler is the best choice for you and your family. The ceiling cassette is not only easy to install, but it is also easy to maintain. The cassette is offered in both single and multi-zone configurations that range from .5 to 1.5 tons, providing coverage for small or large spaces. As one of the most versatile ceiling units ever, the MrCool DIY Ductless Ceiling Cassette is a perfect fit for any space that can support the installation as intended on a horizontal surface.
The 9k BTU MrCool DIY Ductless Ceiling Cassette Air Handler offers low profile installation and doesn't require ductwork or wall space. It can be recessed between all types of joists on 16 inch center including pre-manufactured I-joists. It is designed to work with both current and future joist standards, making it a superb choice for retrofits or new construction. The MrCool DIY Ceiling Cassette doesn't have strict installation requirements like other ceiling cassettes, so you're able to install it in the location in your space that suits you best.
The 9k BTU MrCool DIY Ductless Ceiling Cassette Air Handler works with the useful MrCool DIY Quick Connect Line Set. This unique line set does not require vacuuming as it's precharged with R-410A refrigerant which is a more eco-friendly refrigerant option. It is also compatible with the No Vac coupler if the length of the line sets needs to be increased. A convenient remote is included to give you easy control of the unit.
Not only is the ceiling cassette physically out of sight, but it also offers quiet operation, so it truly is a discrete heating and cooling solution. It also features multiple operating modes that are easily accessible with the remote, putting you in control of your comfort. The ceiling cassette offers advanced filtration, and with the innovative swing technology, the Elevation function allows the air filter panel to be remotely raised and lowered. Thanks to this feature, maintenance of the air filter is much easier as the panel is easily accessible.
Feel confident in your purchase since the 9k BTU MrCool DIY Ductless Ceiling Cassette Air Handler is backed by a 7-year compressor warranty and 5-year parts warranty. This protection ensures the MrCool DIY Ceiling Cassette is sure to provide you and your family with reliable and efficient heating or cooling for years to come.
From the Manufacturer
Customer Reviews / Q&A
Specifications
System Overview
| Model | DIYCASSETTE09HP-230C25 |
|---|---|
| UPC | 840255522199 |
| Product Height (in) | 8.98 |
| Configuration | Ceiling Cassette |
| Product Length (in) | 50.31 |
| Air Flow Direction | Downflow |
| Product Width (in) | 13.19 |
| Blower Motor | Variable Speed |
| Cooling Capacity | Less than 1 Ton |
| Electrical Phase | 1-Phase |
| Line Set Connection Type | Quick Connect |
| Liquid Line Size | 1/4 inch |
| Max Overcurrent Protection | 15 amps |
| Weight (lbs) | 88.850000 |
| Refrigerant | R-410a |
| Series | DIY |
| Suction Line Size | 1/2 inch |
| System Application Type | Ductless Split Systems |
| Voltage | 240 |
| Warranty | 5 Year Parts |
Parts
HVAC Parts & Accessories
-
Item #:: HAP11520
Model: 15500305000015
Price:
$105.67 -
Item #:: HAP11554
Model: 11201007003448
Price:
$55.40 -
Item #:: HAP11864
Model: 15500305000007
Price:
$105.28 -
Item #:: HAP12512
Model: 17222500003988
Price:
$263.57 -
Item #:: HAP12597
Model: 17222500A04797
Price:
$96.08 -
Item #:: HA24169
Model: 17317000A65070
Price:
$74.67 -
Item #:: HAP13074
Model: 11002015016793
Price:
$281.45 -
Item #:: HAP13075
Model: 12100102000936
Price:
$64.10 -
Item #:: HAP13077
Model: 11201007003437
Price:
$53.86 -
Item #:: HAP13276
Model: 17310900A02602
Price:
$56.96Out of stock
Replacement Air Filters
-
Item #:: HAP13589
Model: 12122500002707
Price:
$54.38
